Summary of Contents for Samsung MM-ZL7

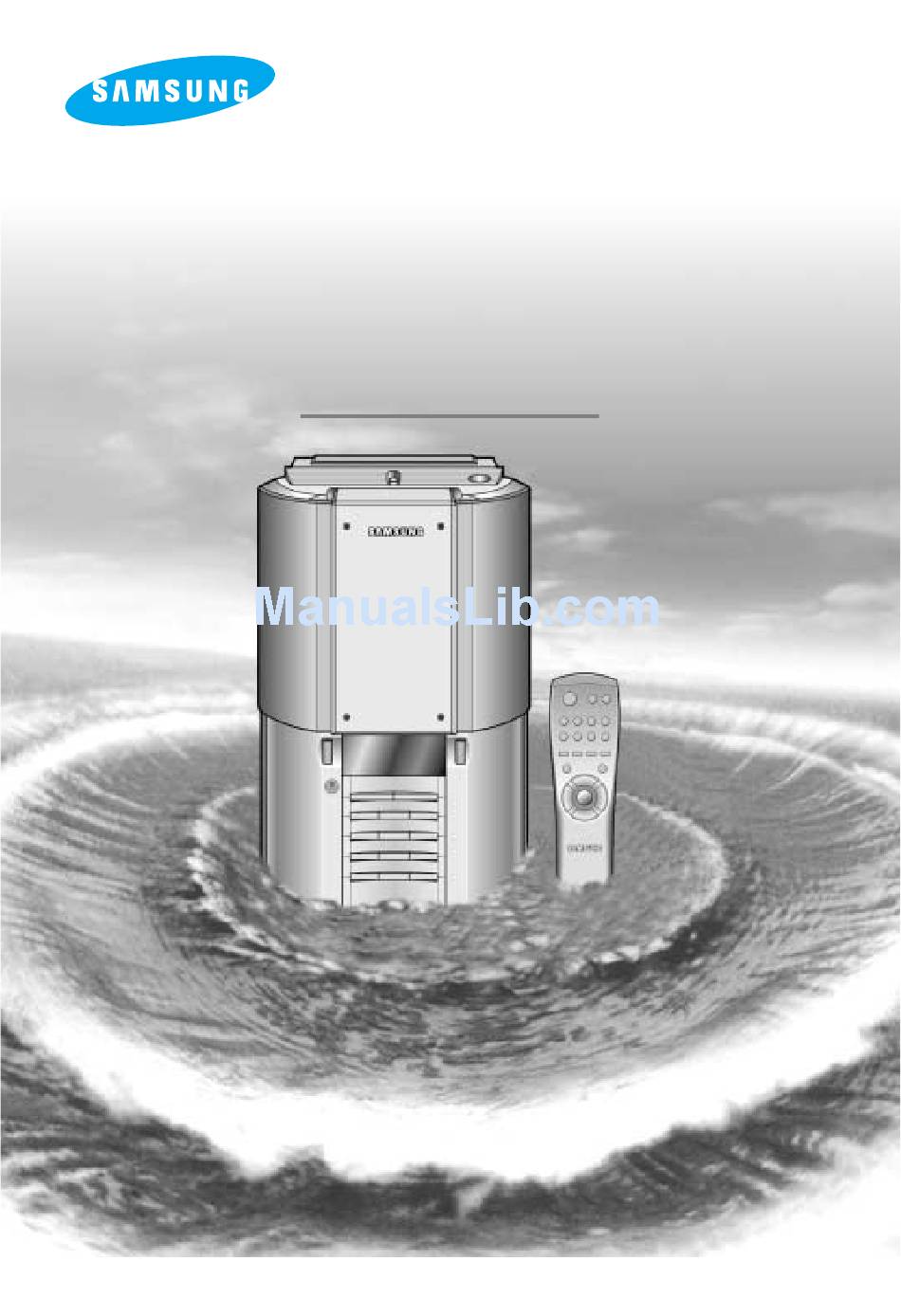

- Page 1 MICRO COMPONENT SYSTEM MP3-CD / CD-R/RW PLAYBACK MM-ZL7 Instruction Manual...
-
Page 2: Installing Your Micro Component System Safety Warnings
Safety Warnings CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1 CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE REAR COVER, NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. -
Page 3: Table Of Contents
Before Contacting the After-Sales Service ...22 Technical Specifications...23 Press You have just purchased a SAMSUNG micro component system. Please take the time to read these instructions, as they will enable you to set up your player easily and take full advantage of its features. -
Page 4: Front Panel View
Front Panel View 1. CD Door Open/Close( ) 2. On / Standby 3. Multi-Function(CD/TAPE/TUNING) 4. CD Repeat 5. Tuning Mode(Stop) 6. Band 7. PROG./Set 8. CD Synchro 9. Push Eject( ) FUNC. Volume CD/TAPE/TUNING Tuning Mode Display CD Repeat Tape Repeat A<—>B Track/Album Band Preset EQ... -
Page 5: Remote Control
Remote Control 1. On/Standby 2. Preset EQ 3. Power Sound 4. Mono / ST. 5. Tape Mode 6. Multi-Function (CD / TAPE / MP3) 7. Band 8. Volume Control 9. Sleep On/Standby Sleep Mute Power Preset Timer Timer/ Sound on/off Clock Tape Program/... -
Page 6: Rear Panel View
Rear Panel View 1. FM AERIAL CONNECTOR TERMINAL 2. CD DIGITAL OUT JACK 3. AM(MW)/LW AERIAL CONNECTOR TERMINALS 4. AUX INPUT 5. LOUDSPEAKERS CONNECTOR TERMINALS... -
Page 7: Where To Install Your Micro-Component System
Where to Install Your Micro-Component System To take full advantage of your new MICRO component system, follow these installation instructions before connecting the unit. Install the system on a flat, stable surface. Never place this unit on carpeting. Never locate this unit in an outdoor area. Maintain an open space of approximately 6 inches (15 cm) on the sides and rear of the system, for ventilation purposes. -
Page 8: Connecting To An External Source
Connecting to an External Source The auxiliary input can be used to take advantage of the sound quality of your MICRO component compact system when listening to other sources. Example: A television A video disc player A Hi-Fi stereo video cassette recorder To connect the external source, the source must have an audio output. -
Page 9: Connecting The Am (Mw)/Lw Aerial
Connecting the AM (MW)/LW Aerial The AM aerial (for long and medium waves) can be: Placed on a stable surface Fixed to the wall (you must first remove the base) The AM aerial connector terminals are located on the rear of the system and are marked AM. To avoid noise interference, check that the loudspeaker wires do not run close to the aerial wires. -
Page 10: Setting The Clock
Setting the Clock Your system is equipped with a clock which allows you to turn your system on and off automatically. You should set the clock: When you purchase the Micro component system After a power failure After unplugging the unit For each step, you have a few seconds to set the required options. -
Page 11: Selecting A Track
Selecting a Track You can select the track you wish to listen to, either when the compact disc player is stopped or when a disc is playing. To start playback at the beginning of the... Press... Next track ... I once Current track ... -
Page 12: Searching For A Specific Music Passage On A Cd
Searching for a Specific Music Passage on a CD When listening to a compact disc, you can quickly search for a specific music passage on a track. To search through the tracks... Forwards ... Backwards ... It is recommended that you turn the volume down before using this function. -
Page 13: Programming The Order Of Playback
Programming the Order of Playback *This function dose not operate in the MP3-CD. You can decide for yourself: The order in which you listen to the tracks The tracks to which you do not wish to listen This feature can be combined with the Repeat function. If necessary, stop the player by pressing STOP ( ). -
Page 14: Selecting A Stored Station
Searching for and Storing the Radio Stations(continued) Adjust the volume by: Pressing Volume + or - on the front panel Pressing the VOL. + or - buttons on the remote control Select the stereo or mono mode by pressing Mono/ST. Result: The STEREO indicator is displayed when selected. -
Page 15: About Rds Broadcasting
About RDS broadcasting This unit has the RDS (Radio Data System) function, which enables for the various information such as broadcasting station, radio text, time and 30 types of programs (News, Rock, Classic, etc.) to be received from the FM RDS station together with normal radio signal. Press the On/Standby button. -
Page 16: Pty(Program Type) Indication And Pty-Search Function
PTY(Program Type) indication and PTY-SEARCH function The PTY information is composed of an identification symbol, which helps the FM radio to recognize the program type of each FM station. The below 30 PTY information is shown on the display by pressing the Pty button. -
Page 17: Listening To A Cassette
Listening to a Cassette Switch the system on by pressing On/Standby. Select the TAPE function by pressing FUNC. on the front panel. Open the cassette deck by pushing on the corner of the cover marked Push Eject until you hear a click and then releasing it. Insert the pre-recorded cassette with the open edge of the tape facing downwards. -
Page 18: Recording A Radio Programme
Recording a Radio Programme You can record a radio programme of your choice and listen to it at a later date. Insert a blank cassette in the cassette deck. Select the TUNER function by pressing FUNC. button. Select the radio station that you wish to record by pressing õ... -
Page 19: Timer Function
Timer Function The timer enables you to switch the system on or off at specific times. Example: You wish to wake up to music every morning. If you no longer want the system to be switched on or off automatically, you must cancel the timer. Before setting the timer, check that the current time is correct. -
Page 20: Setting The System To Switch Off Automatically
Setting the System to Switch Off Automatically While listening to a compact disc or a cassette, you can set the system to switch off automatically. Example: You wish to go to sleep to music. Press Sleep. Result: The following indications are displayed: Press Sleep one or more times to indicate how long the system should continue playing before it switches off: 90 MIN... -
Page 21: Power Sound Function
Power Sound function This machine is equipped with the function of Power Sound which amplifies bass treble output to twice as much for powerful real sound. Press the Power Sound button. Result: P, SOUND is displayed for a few seconds. A more powerful resonant sound is diffused. -
Page 22: Safety Precautions
The model and serial numbers, normally printed on the rear of the system Your warranty details A clear description of the problem Then contact your local dealer or SAMSUNG after-sales service. FUNC. Volume CD/TAPE/TUNING Tuning Mode Display CD Repeat Tape Repeat A<—>B... -
Page 23: Technical Specifications
Technical Specifications SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice. RADIO Usable sensitivity Signal/noise ratio Usable sensitivity Total harmonic distortion AM (MW) Signal/noise ratio... - Page 24 THIS APPLIANCE IS MANUFACTURED BY: ELECTRONICS AH68-00772B...
