Summary of Contents for Lenovo ThinkVision E22-28

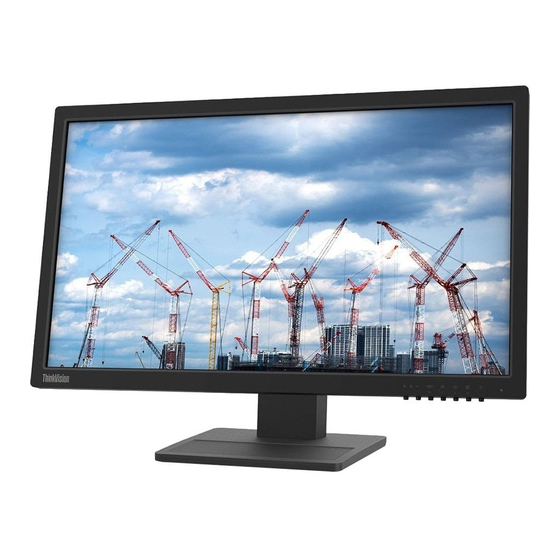

- Page 1 E22-28 Simplified service manual for dismantling Model Name: Lenovo E22-28...
- Page 2 Exploded Diagram...
- Page 3 1. Precaution Please read the precaution as follows to prevent any damages to the LCD Monitor. Make sure all power connector is removed. Be sure that the LCD Monitor is in power off status. Prepare soft cloth sponge as working platform to place LCD monitor...
- Page 4 2. Appropriate tools Select the Appropriate tools for disassembly and re-assembly. Phillips screwdriver spacer screwdriver C/D disassembly tool Gloves or soft cloth...
- Page 5 3. Disassembly SOP Put the monitor on a flat surface (Put the EPE on under the monitor) Remove the screw *4pcs Tool : Screwdriver Pull out stand Use the C/D disassembly tool to release Rear cover hook from disassemble hole on bottom...
- Page 6 Unplug speaker line Remove All tape and foil Release the middle frame from the Panel Release the keypad pcb from the the middle frame Unplug light bar line and LVDS line Take out of the chassis assembly...
- Page 7 Take out of the panel from bezel Remove the acetate tape Remove the screw * 2pcs Tool : Spacer screwdriver Remove All screw*5pcs Tool : Screwdriver Tool : spacer screwdriver Take out PCB and Peel off all mylar.
- Page 8 Take out the Thermal pads from Power pcb...
