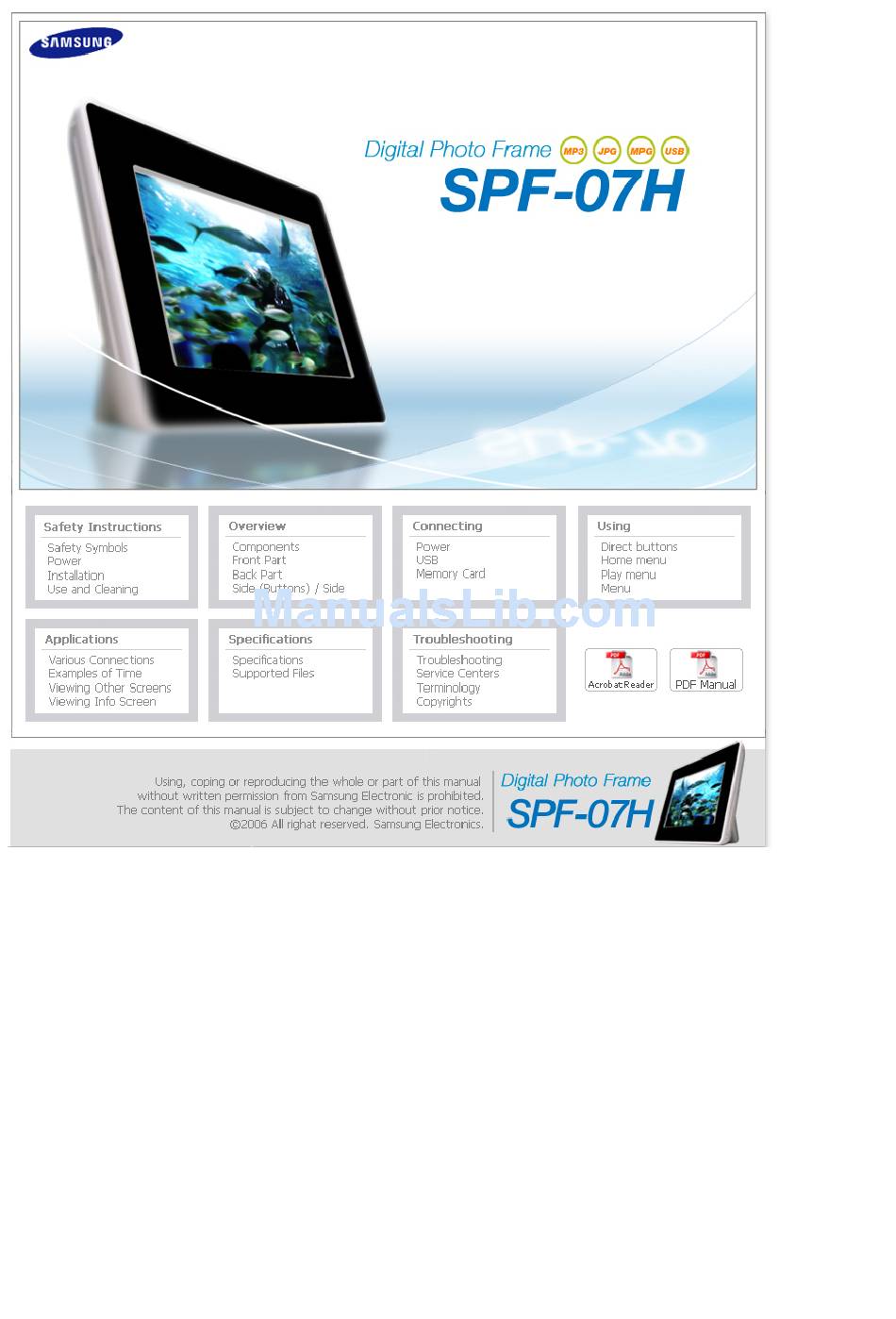

Samsung SPF-07H User Manual

Samsung spf-07h: user guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Samsung SPF-07H

Summary of Contents for Samsung SPF-07H

  • Page 2: Safety Symbols

    Safety Symbols Safety Symbols Make sure to keep the directions given below in order to prevent hazards and property damages by using the product correctly. Identifies information about practices or circumstances that failure to following the accompanying directions may lead to serious personal injury or death. Identifies information about practices or circumstances that failure to following the accompanying directions may lead to personal injury, or product malfunction.

  • Page 3: Installation

    Do not bend or pull the power cord forcibly. Do not place heavy stuff on it. Make sure to turn the power off and disconnect the power plug from the outlet before moving the product. Make sure to disconnect other connection lines from other devices as well.
  • Page 4 When installing the product on a cabinet or shelf, do not let the front end of the product's bottom be projected out of its front edge. Do not place the power cord near a heat generating appliance. Do not install the product in a place exposed to oil, smoke, moisture, water, or rainwater, or in a car.
  • Page 5 Do not insert metals such as a chopsticks, wire, or gimlet, or flammables such as a paper or match into the terminals at the back of the product. Otherwise, it may cause electric shock or a fire. If water or foreign materials enter the product, make sure to turn the product off and disconnect the power plug form the outlet, and then contact a service...
  • Page 6 disconnect the power plug. If you use it without verification, it may cause electric shock or a fire. Please contact a service center.
  • Page 7 Stylish design With its sleek and clean, high class design, your Digital Photo Frame can even be an ornament you can enjoy on a desk or table. A 90 degree rotating stand allowing both horizontal and vertical installations...
  • Page 8 Digital Photo Frame User Manual Quick Start Warranty User Manual Cables USB cable Power cord Power adapter (A-B type) Cleaning cloth Sold separately...
  • Page 9 CF card Features Components Front Part Power Shows the status of power. Indicator When the product is powered on, it turns on with a light. Features Components Back Part SD/MMC card Front Part Back Part (Buttons) Front Part Back Part (Buttons) Side Side...

  • Page 10: Front Part

    You can hear music files and movies without additional installation of a speaker. Stand A 90 degree rotating stand allows both horizontal and vertical installations. If your Digital Photo Frame is installed vertically, you can rotate your photos using the rotation function to fit to the vertical installation. Sliding Prevention Supports the product so that it does not slip on a slippery place.
  • Page 11 ] Select Button Selects a file to play back, a setting on the menu, or an item. [SHOW] Slide Show Files are displayed in thumbnails on the bottom of the screen during Button playback. To play a file, use the Right and Left buttons to move selection on the file and press this Features Components...

  • Page 12: Memory Card

    Connecting Power Connect the power adapter to the POWER terminal at the back of the product. Connect the power cord to the power adapter. If all cables are connected, insert the power plug to a 220V outlet. Press the button at the right of the product to turn the product on. Connecting USB Power Memory Card...
  • Page 13 (For more information on external devices and their cables, contact a service center for them.) Samsung has no liability on external device malfunctions caused by using any cable except standard cables specified by each device. Some external products provide a cable that does not meet USB standards. Hence, they may cause a malfunction.
  • Page 14 CF CARD Slide the card into in the direction marked on its top. To remove a memory card, press the button at the top of the card slot. SD/MMC Slide the card into in the direction marked on its top. CARD If you remove the memory card during playback of MP3, movie, or photos, the product may not operate normally.

  • Page 15: Direct Button

    Direct button MENU The menu is hidden automatically after one minute. Button Shows the menu on the bottom center of the screen. MENU (MENU button) Pressing the menu button releases Volume/Brightness mode. (Up button) Direct button Description Action/Stop...
  • Page 16 Button Moves up the selected frame on the menu. (Up button) Operating During Playback Position Volume Up (when the volume adjustment window is displayed) Play Mode Brightness Up (when the brightness adjustment window is displayed) Operating Contents List Position Sub menu of Moves up (Down button) Button...
  • Page 17 Button Moves to the left the selected frame on the menu. (Left button) (Right button) Button Moves to the right the selected frame on the menu. (Right button) / SHOW (Select / Slide Show button) Button Button Operation / SHOW Description Description Description...
  • Page 18 (Select / Slide Show button) Operating During Playback Position Shows/Hides the list of thumbnails Play Mode on the bottom. Operating Contents List Position Sub menu of Select and playback HOME Replay If there is an existing content that was played back, it returns to that playback screen. Contents List When a specific time passes, it returns to the clock screen.
  • Page 19 screen Inside Memory Loads contents stored in the Inside Memory. SD / MMC Connected Storage Media Connected Storage Media Inside Memory SD / MMC Shows the contents list that corresponds to the left and right menus. Setup Upper Menu Sub Menu Speed &...
  • Page 20 Info. Display Auto Replay - Select whether to playback the Server contents automatically or not Replay the content automatically. Layout List Arrangement Brightness - Adjust brightness from 0 to 100 levels. Picture 0~100 Current Time Alarm Time Auto Power Off Select Language - Language English...
  • Page 21 Play Play back the file. Stop Return to the first of the slide show. Previous File Play the previous file in the contents list. Next File Play the next file in the contents list. MENU : Stops the file being played back Mode Select a mode among Repeat All, Random, and Repeat One.
  • Page 22 Select one among 90 on Left, Standard, and 90 on Right. You can install Rotation your Digital Photo Frame vertically. Mode Select a mode among Repeat All, Random, and Repeat One. Save Save the file being displayed in the selected location.
  • Page 23 I want to use contents through various connections. If you connect a USB storage media or a CF/SD/MMC card to your Digital Photo Frame and turn it on, you are moved to the Contents List screen automatically and your Digital Photo Frame loads contents from the connected storage media and card.
  • Page 24 Files Move selection to the desired file using the button. I want to display other information including time while my Digital Photo Frame is turned on. Configuring Select Setup of Information to Select Show Info..
  • Page 25 The update progression is displayed on the screen. When the update finishes, your Digital Photo Frame will be restarted automatically. After boot-up, turn your Digital Photo Frame off, remove the USB memory card, and turn your Digital Photo Frame on again, for maximum safety.

  • Page 26: Specifications

    Specifications Items Type Resolution Brightness Panel Contrast Ratio View Angle Interface Supported Formats Built-in Memory Sound Media (Memory Card) Power Photo File Content Files FAT16,FAT32 (200 Characters) Music File Movie File I/O Device Adjustment Memory Card File Management Specifications Supported Files Specifications 7"...
  • Page 27 MPEG4 SP, ASP/L3,L5 (720x480, 2Mbps, 30fps) WMV9 SP, MP/medium level (720x480, 2Mbps, 30fps) Supported image file format : JPEG, 3200x2400 The Digital Photo Frame uses these modules: It complies to GPL licensing. Linux Kernel 2.6.11, AAC, ffmpeg MP3 For more information, visit the following web sites: AMD AU1200 web site (http://wwwd.amd.com/amd/devkits.nsf)

  • Page 28: Troubleshooting

    Troubleshooting This selection provides various problems and their remedies you can encounter during using the digital photo frame. If you encounter a problem, first check the list given below and take the suggested action if there is any one that matches. After that, if the problem still persists, contact or visit the nearest service center.
  • Page 29 Therefore, you need to set time again whenever your Digital Photo Frame turns on. However, if you are connected to Server, you don't have to set time again because your Digital Photo Frame gets time info from the Server and sets its time automatically.
  • Page 30 USB Cable 2) Cable for Connecting Other Devices Service Centers If you need a product service, contact or visit a Samsung service center. Services Samsung Electronics web site Samsung Service web site If you let us know model number and malfunction status of your product and your contact, we could provide our service more quickly for your problems and questions.
