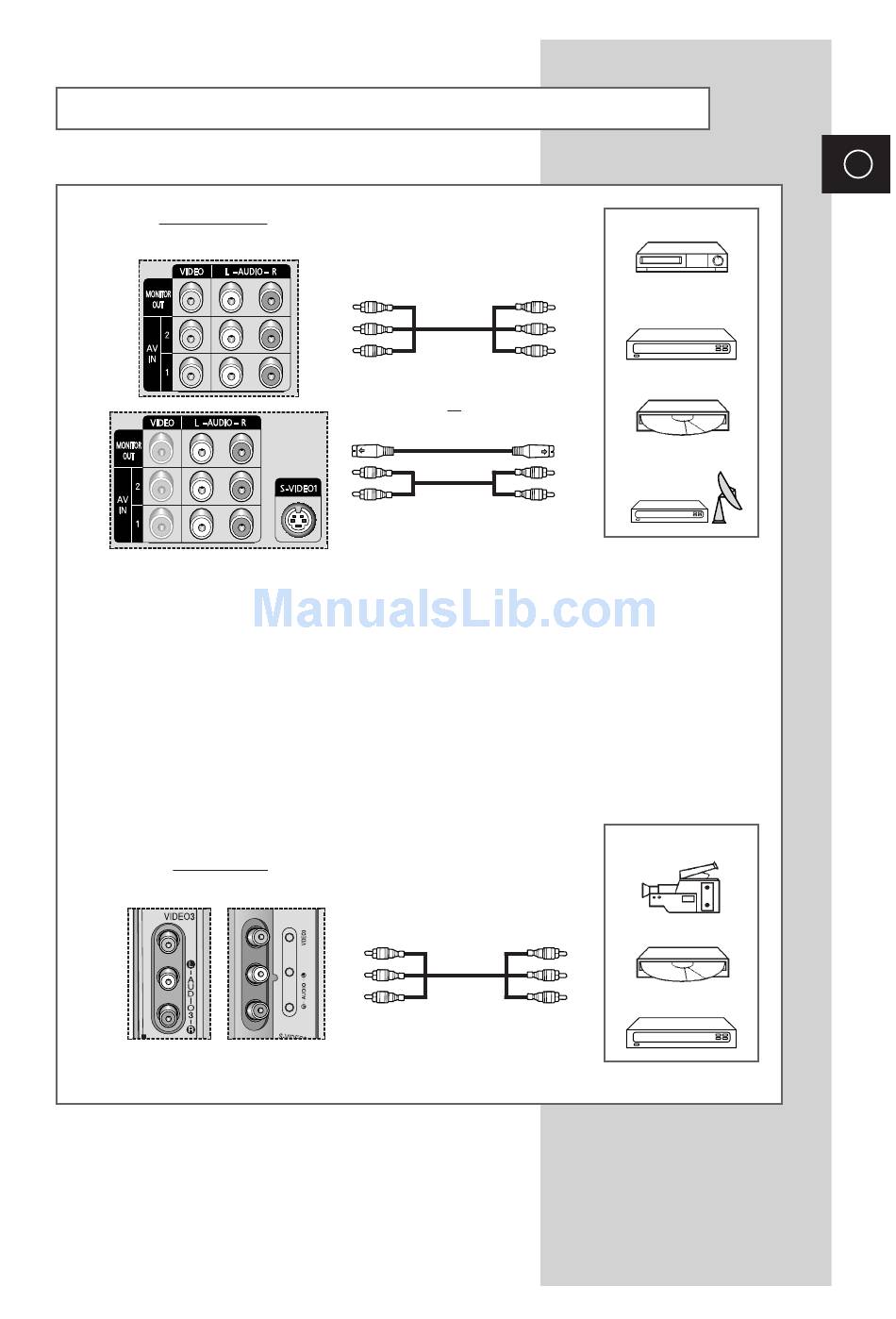

Connecting to the External Devices
Rear of the TV
(Input/Output)
①
This end can be fitted with:
◆ Three RCA connectors (VIDEO + AUDIO-L and R)
◆ An S-Video connector and two audio RCA connectors (L+R); AV-1, AV-2
②
If you have a second VCR and wish to copy cassettes tape, connect the source VCR to "AV-1" and the
target VCR to "MONITOR OUT" so that you can redirect the signal from source VCR to target VCR.
③
If you have a decoder, connect the decoder to the VCR and the VCR to the television.
➃
"MONITOR OUT" is used for displaying the current picture to an external device. When you wish to
record the current picture, connect the VCR to "MONITOR OUT".
Side of the TV
(Input)
(depending on the model)
②
①
③
or
➃
VCR
Decoder /
Video game device
Video disc player
Satellite receiver
Camcorder
Video disc player
Video game device
