INSTALLATION GUIDE
NI PXI-8183
Installing the NI PXI-8183
To protect both yourself and the chassis from electrical hazards, leave the chassis
Caution
powered off until you finish installing the NI PXI-8183 module.
This document contains information about installing your NI PXI-8183
controller in a PXI chassis.
For complete configuration and troubleshooting information
(including information about BIOS setup, adding RAM, and so on), refer
to the NI PXI-8183 User Manual. The manual is in PDF format on the
documentation CD included with your controller, and the National
Instruments Web site,
ni.com
This section contains general installation instructions for the NI PXI-8183.
Consult your PXI chassis user manual for specific instructions and
warnings.
1. Plug in your chassis before installing the NI PXI-8183. The power cord
grounds the chassis and protects it from electrical damage while you
install the module. (Make sure the power switch is turned off.)
2. Remove any filler panels blocking access to the system controller slot
(Slot 1) in the chassis.
3. Touch the metal part of the case to discharge any static electricity that
might be on your clothes or body.

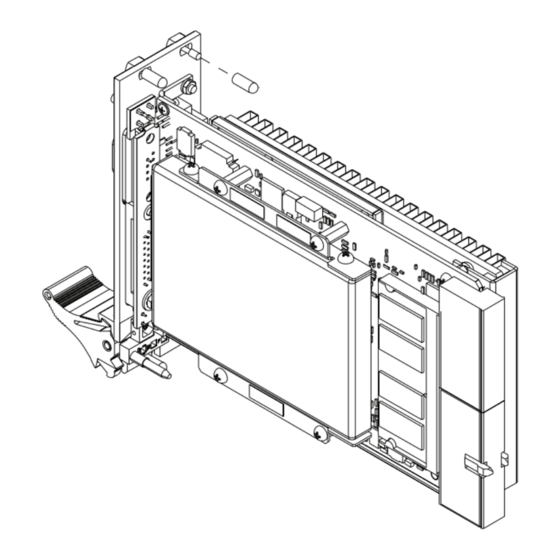

4. Remove the protective plastic covers from the four bracket-retaining
screws as shown in Figure 1.
.
