- Page 1 OWNER’S MANUAL BOTTOM FREEZER FRIDGE Please read this owner’s manual thoroughly before operating and keep it handy for reference at all times. GR-J338LSJM www.lg.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS PRODUCT FEATURES HOW TO USE Before Use Control Panel IMPORTANT SAFETY - Control Panel Features INSTRUCTIONS In-Door Ice Bin - Detaching the In-Door Ice Bin - Assembling the In-Door Ice Bin COMPONENTS Automatic Icemaker Fridge Exterior - Turning the Automatic Icemaker On or Off Fridge Interior... -
Page 3: Product Features
PRODUCT FEATURES PRODUCT FEATURES * Depending on the model, some of the following functions may not be available. FILTERED WATER AND ICE DISPENSER The water dispenser dispenses fresh, chilled water. The ice dispenser dispenses cubed and crushed ice. DOOR ALARm The Door Alarm function is designed to prevent fridge malfunctioning that could occur if a fridge door or freezer drawer remains open. -
Page 4: Important Safety Instructions
ImPORTANT SAFETy INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE. This guide contains many important safety messages. Always read and obey all safety messages. This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or others, or cause damage to the product. - Page 5 ImPORTANT SAFETy INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE. To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety precautions should be followed, including the following: This product is not to be used for special purposes such as the storage of medicine or test materials or for use on ships, etc.
- Page 6 If the fridge is disconnected from the power supply, you should wait for at least five minutes before plugging it back in. If you notice a chemical or burning plastic smell or see smoke, unplug the fridge immediately and contact your LG Electronics Service Center.
- Page 7 ImPORTANT SAFETy INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE. To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety precautions should be followed, including the following: WARNING Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
-
Page 8: Components
COmPONENTS COMPONENTS Use this page to become more familiar with the parts and features of your fridge. *The appearance and specifications of the actual product may differ depending on the model. Fridge Exterior Handle Opens and closes the door. Filtered Water and Ice Dispenser Button Dispenses purified water and ice. -
Page 9: Fridge Interior
COmPONENTS Fridge Interior LED interior lamps Adjustable Fridge Shelf The interior lamps light up the The shelves in your fridge are inside of the fridge. adjustable to meet your individual storage needs. Water filter Purifies water. Door-In-Door Case NOTE A convenient storage area for The filter should be replaced every 6 months. -
Page 10: Installation
INSTALLATION INSTALLATION Installation Overview Please read the following installation instructions first after purchasing this product or transporting it to another location. 1 Unpacking your 2 Choosing the proper 3 Disassembling/Assembling fridge location 4 Connecting the water 5 Leveling and Door supply and water line Alignment NOTE... -
Page 11: Unpacking Your Fridge
INSTALLATION Unpacking Your Fridge Choosing the Proper Location Select a place where a water supply can be WARNING easily connected for the automatic icemaker. Use two or more people to move and NOTE install the fridge. Failure to do so can result in back or other injury. -
Page 12: Ambient Temperature
INSTALLATION Removing/Assembling the Ambient Temperature Fridge Door Handles Install this appliance in an area where the temperature is between 13°C and 43°C. If the temperature around the appliance is too low or NOTE high, cooling ability may be adversely affected. When it is necessary to move the fridge through a narrow opening, removing the doors is the recommended procedure. -
Page 13: Removing/Assembling The Freezer Drawer Handle
INSTALLATION Removing/Assembling the Removing/Assembling the Freezer Drawer Handle Doors and Drawers Removing the Handles When it is necessary to move the fridge through a narrow opening, removing the doors is the recommended procedure. Loosen the set screws located on the lower side of the handle with a in. -
Page 14: Removing The Left Fridge Door
INSTALLATION Removing the Left Fridge Door Rotate the hinge lever counterclockwise . Lift the top hinge free of the hinge lever latch. The water supply is connected to the upper right part of the rear surface of the fridge. Remove the ring in the joint area. Hold the water supply connection and gently push the Collet to detach the water supply line as shown in... -
Page 15: Removing The Right Fridge Door
INSTALLATION Removing the Right Fridge Door Rotate the hinge lever clockwise. Lift the top hinge free of the hinge Remove the top hinge cover screw lever latch. Lift the hook (not visible), located at the bottom of the front side of the cover with a flat-head screwdriver. -
Page 16: Assembling The Right Fridge Door
INSTALLATION Assembling the Right Fridge Door Install the right-side door first. Connect the wire harness Make sure that the plastic sleeve is inserted in the bottom of the door. Lower the door onto the middle hinge pin as shown in the figure. Make sure that the door-switch located inside the cover is tightly connected. -
Page 17: Assembling The Left Fridge Door
INSTALLATION Assembling the Left Fridge Door Push the water supply tube into the hole on the top case and pull it through the Install the left fridge door after the right door is backplate. installed. Make sure that the plastic sleeve is inserted in the bottom of the door. -
Page 18: Removing The Freezer Drawers
INSTALLATION Removing the Freezer Drawers NOTE In the following figures, the Pullout Drawer Collet located above the freezer drawer is not shown Tube for clarity. CAUTION Insert Line Use two or more people to remove and Clip install the freezer drawer. Failure to do so can result in back or other injury. - Page 19 INSTALLATION Pull the drawer open to full extension. Remove the screws from the rails at both ends. Gently lift and pull out the ice bin. Grip both sides of the drawer and pull it up to remove it from the rails. CAUTION On the left rail, use a flat blade screwdriver to push in on the tab to release the drawer...
-
Page 20: Assembling The Freezer Drawers
INSTALLATION Assembling the Freezer Drawers Lower the door into its final position and tighten the screws located on both sides. Pull out both rails simultaneously, until both rails are fully extended. Grasp the drawer on each side and hook the Insert the drawer into the frame, and push drawer supports into the rail tabs located on the drawer back into place until you hear a... -
Page 21: Connecting The Water Line
INSTALLATION Connecting the Water Line Water Pressure The water pressure must be between 20 and Before You Begin 120 psi. If the fridge is installed in an area with low water pressure (below 20 psi), you can This water line installation is not covered by install a booster pump to compensate for the low the fridge warranty. -
Page 22: What You Will Need
INSTALLATION What You Will Need Water Line Installation Instructions ¼ in. outer diameter, to Copper Tubing, WARNING connect the fridge to the water supply. Be sure both ends of the tubing are cut When using any electrical device square. (such as a power drill) during To determine how much installation, be sure the device is tubing you need: measure... - Page 23 INSTALLATION FASTEN THE SHUTOFF VALVE CONNECT THE TUBING TO THE VALVE Fasten the shutoff valve to the cold water Place the compression nut and ferrule (sleeve) pipe with the pipe clamp. for copper tubing onto the end of the tubing and connect it to the shutoff valve.
-
Page 24: Turning On The Power
INSTALLATION Turning On the Power TURN THE WATER ON AT THE SHUTOFF VALVE Tighten any connections that leak. Plug in the fridge. CAUTION Check to see if leaks occur at the water CAUTION line connections. Connect to a rated power outlet. Have a certified electrician check PLUG IN THE FRIDGE the wall outlet and wiring for proper... -
Page 25: Leveling And Door Alignment
INSTALLATION Leveling and Door Alignment Door Alignment Leveling The left fridge door has an adjustable nut, located After installing, plug the fridge’s power cord on the bottom hinge, to raise and lower the door into a 3-prong grounded outlet and push the for proper alignment. -
Page 26: How To Use
HOW TO USE HOW TO USE Before use Clean the fridge. Clean your fridge thoroughly and wipe off all dust that accumulated during shipping. CAUTION Do not scratch the fridge with a sharp object or use a detergent that contains alcohol, a flammable liquid or an abrasive when removing any tape or adhesive from the fridge,. -
Page 27: Control Panel
HOW TO USE Control Panel * Depending on the model, some of the following functions may not be available. Control Panel Features Ice Type Press the Ice Type button to choose either cubed or crushed ice. The cubed or crushed ice icon will illuminate. - Page 28 HOW TO USE Control Panel Features (continued) Express Freeze Lock This function increases both ice making and The Lock function disables every other button freezing capabilities. on the display. When you touch the Express Freeze button, the graphic will illuminate in the display and When power is initially connected to the fridge, will continue for 24 hours.
-
Page 29: In-Door Ice Bin
HOW TO USE In-Door Ice Bin To remove the in-door ice bin, grip the front handle, slightly lift the lower part, and slowly pull out the bin as shown. * Depending on the model, some of the following functions may not be available. CAUTION Keep hands and tools out of the ice compartment door and dispenser chute. -

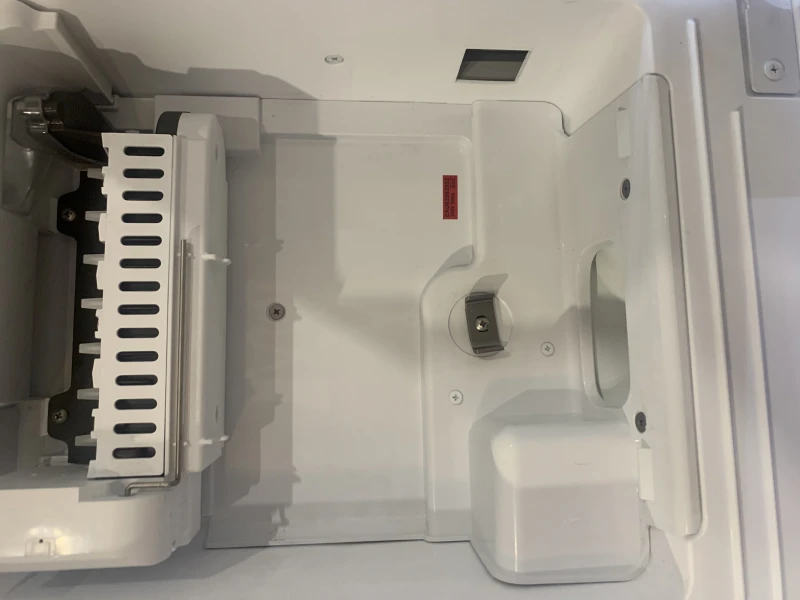

Page 30: Automatic Icemaker
HOW TO USE Automatic Icemaker WARNING Personal Injury Hazard * Depending on the model, some of the DO NOT place fingers or hands on the following functions may not be available. automatic ice making mechanism while the fridge is plugged in. Ice is made in the automatic icemaker and sent to the dispenser. -
Page 31: When You Should Turn The Icemaker Off
HOW TO USE Automatic Icemaker When You Should Turn the Icemaker Off (continued) When the water supply will be shut off for several hours. CAUTION When the ice bin is removed for more The first ice and water dispensed may than one or two minutes. -
Page 32: Ice And Water Dispenser
HOW TO USE Ice and Water Dispenser Incorrect Way Correct Way * Depending on the model, some of the following functions may not be available. Water CAUTION Keep children away from the dispenser. Children may play with or damage the controls. -
Page 33: Storing Food
HOW TO USE Storing Food Food Preservation Location Each compartment inside the fridge is designed to store different types of food. Store your food in the optimal space to enjoy the freshest taste. Adjustable fridge shelf Vegetable storage Adjustable shelves to meet (Crisper) your individual storage needs. -
Page 34: Food Storage Tips
HOW TO USE Storing Frozen Food Food Storage Tips * The following tips may not be applicable NOTE depending on the model. Check a freezer guide or a reliable cookbook for further information about preparing food Wrap or store food in the fridge in airtight and for freezing or food storage times. -
Page 35: Humidity Controlled Crisper And Glide'n'serve
HOW TO USE Storing Frozen Food (continued) Humidity Controlled Crisper and Glide’N’Serve Packaging Humidity Controlled Crisper Successful freezing depends on correct packaging. When you close and seal the package, it must not allow air or moisture in or * Depending on the model, some of the out. -
Page 36: Detaching And Assembling The Storage Bins
HOW TO USE Detaching and Assembling the To Remove the Glass Storage Bins (Pantry drawer not shown for clarity) Lift up the glass under the crisper cover, and Glide‘N’Serve and Humidity pull up and out. Controlled Crisper To remove the Humidity Controlled Crisper and the Glide’N’Serve, pull out the Crisper Glide’N’Serve to full extension, lift the front... -
Page 37: Door-In-Door
HOW TO USE Door-In-Door Door-In-Door Case To open the Door-In-Door case, slightly push The Door-In-Door compartment allows for easy the marked area to pop it open. The Door-In- access to commonly used food items. Door Case is removable for easy cleaning and adjustment. - Page 38 HOW TO USE Door-In-Door Door Bins Door-In-Door Lower Shelf The Door-In-Door inner and outer door bins are The Door-In-Door lower shelf is removable for removable for easy cleaning. easy cleaning. To remove the door bins, lift up and pull out. To remove the lower shelf, lift the shelf retainer up and out.
-
Page 39: Adjusting The Fridge Shelves
HOW TO USE Adjusting the Fridge Shelves Using the Folding Shelf You can store taller items, such as a gallon The shelves in your fridge are adjustable to container or bottles, by simply pushing the meet your individual storage needs. Your front half of the shelf underneath the back half model may have glass or wire shelves. -
Page 40: Maintenance
mAINTENANCE MAINTENANCE Cleaning Both the fridge and freezer sections defrost automatically; however, clean both sections about once a month to prevent odors. Wipe up spills immediately. Always unplug the fridge before cleaning. General Cleaning Tips Exterior Unplug fridge or disconnect power. Waxing external painted metal surfaces helps provide rust protection. -
Page 41: Replacing The Water Filter
mAINTENANCE Replacing the Water Filter Inside Walls (allow freezer to warm up so the cloth will not stick) It is recommended that you replace the water To help remove odors, you can wash the inside filter: of the fridge with a mixture of baking soda proximately every six months. - Page 42 Take the new water filter out of its packing Visit your local dealer or distributor and remove the protective cover from the Web: Find Parts & Accessories from o-rings. With Support section of lg.com the water Part number of the replacement water filter tabs in filter: ADQ36006101...
-
Page 43: Smart Diagnosis
Smart Diagnosis™ feature when instructed to hold your phone to the speaker. to do so by the LG call center agent. The transmission sounds that you will hear are normal and sound similar to a fax machine. -
Page 44: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING Review the Troubleshooting section before calling for service; doing so will save you both time and money. Problem Possible Causes Solutions Fridge and The fridge control is set to OFF Turn the control ON. Refer to the Setting the Freezer section (some models). - Page 45 TROUBLESHOOTING Problem Possible Causes Solutions Fridge or Freezer Fridge was recently installed. It may take up to 24 hours for each compartment section is too to reach the desired temperature. warm. Air vents are blocked. Rearrange items to allow air to flow throughout the compartment.
- Page 46 TROUBLESHOOTING Problem Possible Causes Solutions Interior moisture Doors are opened often or for When the doors are opened often or for long buildup. long periods of time. periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment.
- Page 47 TROUBLESHOOTING Problem Possible Causes Solutions Frost or ice Condensation from food with a This is normal for food items with a high water crystals on frozen high water content has frozen content. food (inside of inside of the food package. sealed package).
- Page 48 TROUBLESHOOTING Problem Possible Causes Solutions Icemaker is not Doors are opened often or for If the doors of the unit are opened often, ambient making enough long periods of time. air will warm the fridge which will prevent the unit ice (continued).
- Page 49 TROUBLESHOOTING Problem Possible Causes Solutions Not dispensing Doors are not closed Ice will not dispense if any of the fridge doors are ice. completely. left open. Infrequent use of the dispenser. Infrequent use of the ice dispenser will cause the cubes to stick together over time, which will prevent them from properly dispensing.
- Page 50 TROUBLESHOOTING Problem Possible Causes Solutions Not dispensing New installation or water line Dispense 2.5 gallons of water (flush for water. recently connected. approximately 5 minutes) to remove trapped air and contaminants from the system. Do not dispense the entire 2.5 gallon amount continuously.
- Page 51 TROUBLESHOOTING Problem Possible Causes Solutions Ice has bad taste Water supply contains minerals A water filter may need to be installed to or odor. such as sulfur. eliminate taste and odor problems. NOTE: In some cases, a filter may not help. It may not be possible to remove all minerals / odor / taste in all water supplies.
- Page 52 TROUBLESHOOTING Problem Possible Causes Solutions Icemaker is Icemaker shutoff (feeler arm) Empty the ice bin. If your icemaker is equipped making too much obstructed. with an ice shutoff arm, maker sure that the arm ice. moves freely. Reinstall the ice bin and wait 24 hours to confirm proper operation.
- Page 53 TROUBLESHOOTING Problem Possible Causes Solutions Pulsating or Your fridge is designed to Normal Operation High-Pitched run more efficiently to keep Sound your food items at the desired temperature. The high efficiency compressor may cause your new fridge to run longer than your old one, but it is still more energy efficient than previous models.
