CB2 Manual GENERAL Exposure to RF Electromagnetic Energy Warnings CB2 Overview CB2 Contents Example Systems INSTALLATION Mounting Connections CONFIGURATION IMPORTANT NOTE TO DEALERS Using WiFi (An Internet connection is required) Using a USB Device External Data Multiplexing Using the Set-up App (Android and iOS) Using the On-line Web Based Software Creating an Account OPERATION... -
Page 4: General
CB2 Manual GENERAL 1.1 Exposure to RF Electromagnetic Energy This product complies with EN62311:2008 (EU) and RSS-102 (Canada). This product has been evaluated for compliance with the FCC RF exposure limits given in CFR 47 part 1.307(b) at a distance greater than 2” (25cm) from the antenna. 1.2 Warnings This product is designed to assist navigation and should not be used in the place of ap- propriate navigational judgement. -
Page 5: Cb2 Overview
The fully compliant CB2 is a Class B type AIS Transponder from ACR Electronics. Your ves- sel information such as position, speed, and course is ascertained automatically and con- tinuously using an internal multi-GNSS receiver and transmitted to all other AIS equipped vessels at a maximum rate of every two seconds. -
Page 6: Example Systems
CB2 Manual 1.5 Example Systems 1.5.1 Example System Using NMEA0183 AISLink CB2 1.5.2 Example System Using NMEA2000 The CB2 NMEA2000 LEN = 1 AISLink CB2 912S-02858-01.12... -
Page 7: Installation

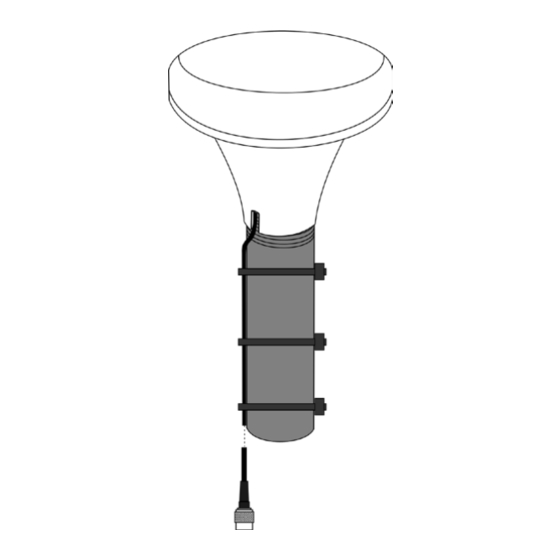

CB2 Manual INSTALLATION 2.1 Mounting 2.1.1 Transceiver mounting Determine the mounting location for the CB2 ensuring that there are suitable access routes for all the required cables and attach securely to a flat surface using the four fixing screws provided. The unit should be easily accessible to allow for disconnection from the power source. - Page 8 CB2 Manual 2.1.2 GPS (GNNS) Antenna Mounting The GPS Antenna should be installed with a clear and unobstructed view of the sky, it should NOT be positioned or mounted on a mast that can cause the antenna to swing and potentially reduce the accuracy of the GPS position and it should NOT be positioned in the direct path of a radar transmitter.
-
Page 9: Connections
CB2 Manual 2.2 Connections Item Connector VHF (SO239) Power/Data GPS Antenna (TNC) NMEA2000 LED Indicator Button USB (Micro-B) To avoid damage to the cables, ensure at least 50mm (2.0 inches) is available below the Transceiver to allow the cables to turn. 912S-02858-01.12... - Page 10 CB2 Manual 2.2.1 RF Connectors The VHF antenna should be connected to the SO239 socket. If the vessel is equipped with a single VHF antenna that is required to be shared between the CB2 and a VHF Radio Transceiver it is necessary to use an active antenna splitter. Attempting to connect two transmitting devies to a single antenna without a splitter will cause severe damage to either or both devices.
- Page 11 CB2 Manual Default NMEA Port Settings DC Power 12 - 24V dc Power BLACK DC Power 0V dc BROWN 38400 Port 1 Fast NMEA BLUE 38400 WHITE 38400 GREEN 38400 YELLOW 4800 Port 2 Slow NMEA GREY 4800 ORANGE 4800 PINK 4800 The CB2 includes 2 bidirectional NMEA 0183 ports.
-
Page 12: Configuration
CB2 Manual CONFIGURATION The CB2 needs to be correctly programmed with the following vessel data before use: • Vessel Maritime Mobile Service Identity (MMSI) number • Vessel name • Vessel call sign • Vessel dimensions and AIS GPS antenna location •... -
Page 13: Important Note To Dealers
CB2 Manual 3.1 IMPORTANT NOTE TO DEALERS If you are a dealer configuring a unit for a customer you should always create an account on behalf of the end user using their email details and a password that you will pass on to them. -
Page 14: Using Wifi (An Internet Connection Is Required)
CB2 Manual 3.2 Using WiFi (An Internet connection is required) Search for ACR AIS Config. From the Google Play Store the Apple App Store Install the ACR App on your mobile device. Set-up a WiFi connection with your mobile device (initial connection only) • Turn off the power to the CB2. • Press and hold the LED button and turn on the power. Keep the button held for 6 seconds until the LED turns Red following Amber flashes. -
Page 15: Using A Usb Device
CB2 Manual 3.3 Using a USB Device Your vessel information can be transferred from your Android phone or computer/laptop to the CB2 using a USB stick and the provided USB On-the-Go cable. Ensure the CB2 is powered off before inserting the USB stick. Once inserted, power on the unit. The CB2 will upload the information from the USB stick automatically. -
Page 16: External Data Multiplexing
CB2 Manual 3.4 External Data Multiplexing The CB2 is capable of multiplexing external data sourced from any device connected by NMEA0183 or NMEA2000 to be transmitted by WiFi to a connected navigation App. To prevent multiple sources and to allow specific sentences to be transmitted it is neces- sary to turn on the appropriate setting during the configuration process. - Page 17 CB2 Manual NMEA0183 Sentences to be created from the NMEA2000 PGNs above: Data True Heading Heading True Heading Speed and Heading Speed Depth Depth Wind Wind Water Temperature Received NMEA0183 sentences required to be transmitted by WiFi: Data True Heading Heading True Heading Speed and Heading...
-
Page 18: Using The Set-Up App (Android And Ios)
CB2 Manual 3.5 Using the Set-up App (Android and iOS) Open the ACR App on your mobile device. NOTE: An Internet connection is required throughout an initial WiFi set-up procedure. Create a USB stick file (Android only) if there is no Internet signal available. Carefully enter as many of the details requested by the App as possible. The App can be used at any time to change information OTHER than the MMSI number. -
Page 19: Operation
CB2 Manual OPERATION Once configured the CB2 will start to operate automatically once the power supply is switched on. The LED will flash Red for a short period while a GPS fix is acquired, after which the LED will remain constant Green flickering slightly every time an AIS signal is received. -
Page 20: Led Indicator Sequences
CB2 Manual 4.2 LED Indicator Sequences LED Sequence Reason Description Flashing Green Start-up Unit is starting and obtaining a GPS fix. Unit is operating and is ready to receive/trans- Steady Green Operating mit. Brief interruptions occur as AIS targets are received Brief interruptions occur as AIS targets are Steady Amber... -
Page 21: Connecting With Wifi
CB2 Manual 4.3 Connecting with Wifi To connect a mobile device or PC with AIS capable navigation software to the CB2 via WiFi is dependent on the original set-up of the unit. 4.3.1 With the default WiFi settings Following a successful configuration, if no specific information is entered, the CB2 will be visible with the SSID: ACR_AISxxxxxxxx where xxxxxxxx is the serial number. -
Page 22: Glossary Of Terms And Abbreviations
CB2 Manual GLOSSARY OF TERMS AND ABBREVIATIONS Automatic Identification System Metre American Wire Gauge Multi-Function Display Digital Selective Calling Millimetres ECDIS Electronic Chart Display and MMSI Maritime Mobile Service Identity Information System European Union Parameter Group Number GNSS Global Navigation Satellite RADAR Radio Detection And Ranging System... -
Page 23: Interface Protocols
CB2 Manual INTERFACE PROTOCOLS 7.1 NMEA0183 Data Sentences Supported Port name Data Speed Transmit sentences Receive sentences Baud Rate Channel 1 Default ABM, ACA, ACK, ACS, ALR, BBM, HDG, HDT, THS, ABM, 34800 EPV, HBT, NAK, SSD, TRL, TXT, ACA, AIQ, AIR, BBM, EPV, VDM, VDO, VER, VSD, DTM*, SPW, SSD, VSD, POSG GBS, GGA*, GLL, GNS, GSV*,... -
Page 24: Wifi Output
CB2 Manual Title 129038 AIS Class A position report 129039 AIS Class B position report 129040 AIS Class B extended position report 129041 AIS Aids to Navigation (AtoN) report 129539 GNSS DOP‘s 129540 GNSS sat’s in /view 129545 GNSS RAIM Output 129792 AIS DGNSS broadcast binary message 129793... -
Page 25: Specifications
CB2 Manual SPECIFICATIONS AIS transmission Transmit Power (EIRP) 5/1Watt Frequency Range 156.025 – 162.025MHz Modulation AIS GMSK: BT 0.4 Receiver Sensitivity -107dBm for 20% packet error rate Frequency Range AIS RX1 and RX2 156.025 – 162.025MHz Frequency Range DSC 156.525MHz WiFi Sensitivity 20dBm (typical) -
Page 26: Approvals
CB2 Manual 10. APPROVALS For approval documents see: https://www.acrartex.com/products/automatic-identification-system-aislink-cb2/ 10.1 USA The CB2 is approved for use in the USA under CFR47 part 95K, 10.2 Canada The CB2 is approved for use in Canada with AIS only under RSS287. 10.3 European Declaration of Conformity Hereby, Ocean Signal Ltd. -
Page 27: Warranty
