30-01-2023 10:09

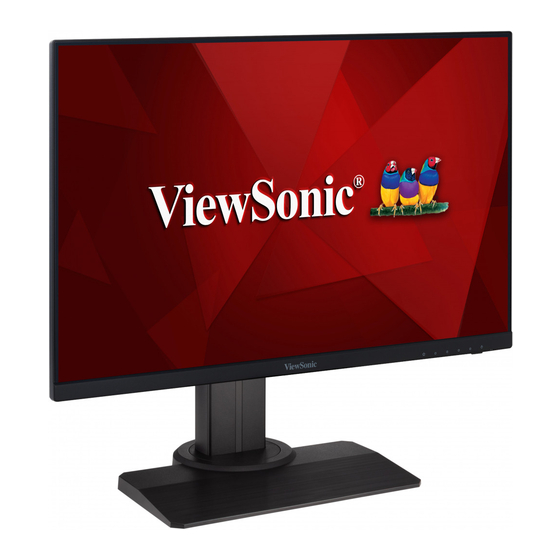

XG2431
Package Contents
Monitor
Power cord
Video cable
Quick start guide
Front View / Rear View
A
Front View
Rear View
Letter
A
B
C
D
I/O Ports
https://manuals.viewsonic.com/index.php?title=XG2431_Full_Guide&mobileaction=toggle_view_desktop
B
HDMI
2
1
DP
C
D
D
Item
Display Screen
Control Panel Keys
Security Slot
Mouse Anchor
XG2431 - ViewSonic Monitor
1/31
Advertisement
Table of Contents
Related Manuals for ViewSonic XG2431
Summary of Contents for ViewSonic XG2431
- Page 1 30-01-2023 10:09 XG2431 - ViewSonic Monitor XG2431 Package Contents Monitor Power cord Video cable Quick start guide Front View / Rear View Front View HDMI Rear View Letter Item Display Screen Control Panel Keys Security Slot Mouse Anchor I/O Ports https://manuals.viewsonic.com/index.php?title=XG2431_Full_Guide&mobileaction=toggle_view_desktop...
-
Page 2: Stand Installation
30-01-2023 10:09 XG2431 - ViewSonic Monitor Number Item AC IN HDMI DisplayPort Audio Out USB Type B (USB Upstream) USB Type A (USB Downstream) Stand Installation Always place the device on a flat, stable surface. Failure to do so may cause the device to fall and damage the device and/or result in personal injury. -
Page 3: Wall Mounting
Refer to the table below for the standard dimensions for wall mount kits. For use only with a UL certified wall mount kit/bracket. To obtain a wall-mounting kit or height adjustment base, contact ViewSonic® or your local dealer. https://manuals.viewsonic.com/index.php?title=XG2431_Full_Guide&mobileaction=toggle_view_desktop 3/31... -
Page 4: Connecting To Power
30-01-2023 10:09 XG2431 - ViewSonic Monitor Maximum Hole Pattern (W x Interface Pad (W x H x Screw Specification & Loading Hole Quantity 14 kg 100 x 100 mm 115 x 115 x 2.6 mm Ø 5 mm M4 x 10 mm - 4 pieces 1. -
Page 5: Connecting External Devices
30-01-2023 10:09 XG2431 - ViewSonic Monitor Connecting External Devices https://manuals.viewsonic.com/index.php?title=XG2431_Full_Guide&mobileaction=toggle_view_desktop 5/31... -
Page 6: Tilt Angle Adjustment
30-01-2023 10:09 XG2431 - ViewSonic Monitor Note: To connect the monitor to an external device (PC, laptop…etc.), please use one of the included video cables for your application and connect it to both terminals. Tilt Angle Adjustment Tilt the monitor backwards to the desired viewing angle via the attached stand (-5˚... - Page 7 30-01-2023 10:09 XG2431 - ViewSonic Monitor NOTE: Follow the key guide that appears on the screen to select the option or make adjustments. Icon Menu Description ViewMode Select one of the preset color settings. Volume Adjust the level, or mute the volume.
-
Page 8: General Operation
30-01-2023 10:09 XG2431 - ViewSonic Monitor Description Press and hold the keys to lock/unlock the OSD Menu. When the menu appears on the screen, continue holding both keys for 10 seconds to lock/unlock the OSD Menu. Press and hold the keys to lock/unlock the Power button. - Page 9 30-01-2023 10:09 XG2431 - ViewSonic Monitor 2. Press the 1 or 2 key to select the main menu. Then press the 3 key to enter the selected menu. 3. Press the 1 or 2 key to select the desired menu option. Then press the 3 key to enter the sub-menu.
-
Page 10: Input Select
30-01-2023 10:09 XG2431 - ViewSonic Monitor NOTE: Follow the key guide to select the option or make adjustments. 5. Press the 4 key to return to the previous menu. OSD Tree Input Select Sub-menu Menu Option HDMI 1 HDMI 2... -
Page 11: Color Adjust
30-01-2023 10:09 XG2431 - ViewSonic Monitor Color Adjust Sub-menu Menu Option (-/+, Contrast 0~100) Contrast/Brightness (-/+, Brightness 0~100) sRGB Bluish Cool Native Warm Color Temperature (-/+, 0~100) User (-/+, Green Color 0~100) (-/+, Blue 0~100) Auto Color Space Auto Full... - Page 12 30-01-2023 10:09 XG2431 - ViewSonic Monitor Sharpness (-/+, 0/25/50/75/100) Blue Light (-/+, 0~100) Filter Aspect Ratio 16:9 16:10 Manual Image Overscan Adjust Black (-/+, Stabilization 0/10/20/30/40/50/60/70/80/90/100) Advanced (-/+, 0/25/50/75/100) Standard Response Advanced Time Ultra Fast Setup Menu Sub-menu Menu Option English Français...
-
Page 13: Technical Specifications
30-01-2023 10:09 XG2431 - ViewSonic Monitor Light Normal PureXP Extreme Ultra Resolution Notice Information OSD Time Out (-/+, 5/15/30/60) OSD Background Power Indicator Auto Power Off 30 minutes 45 minutes Sleep 60 minutes 120 minutes Standard ECO Mode Optimize Conserve DisplayPort 1.1... - Page 14 30-01-2023 10:09 XG2431 - ViewSonic Monitor Model No. VS18533 XG2431 https://manuals.viewsonic.com/index.php?title=XG2431_Full_Guide&mobileaction=toggle_view_desktop 14/31...
- Page 15 30-01-2023 10:09 XG2431 - ViewSonic Monitor Item Category Specifications a-Si TFT, Active Matrix 1920 x 1080 LCD; Type 0.2745 mm x 0.2745 mm pixel pitch Display Size 62.23 cm, (24.5" viewable) Color Filter RGB vertical stripe Hard coating (3H), Anti-...
- Page 16 30-01-2023 10:09 XG2431 - ViewSonic Monitor Recommended 1920 x 1080 @ 240Hz 1920 x 1080 @ 50, 60, 120, 144, 240Hz 1680 x 1050 @ 60Hz 1600 x 1200 @ 60Hz 1600 x 900 @ 60Hz 1440 x 900 @ 60,...
-
Page 17: Compliance Information
1. Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display. 2. Please use the power adapter from ViewSonic® or an authorized source only. 3. The test condition follows EEI standards. -
Page 18: Ce Conformity For European Countries
30-01-2023 10:09 XG2431 - ViewSonic Monitor CAN ICES-003(B)/NMB-003(B) CE Conformity for European Countries The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. The following information is only for EU-member states: The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). -
Page 19: Indian Restriction Of Hazardous Substances
Rule. Product Disposal at End of Product Life ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic® website to learn more. USA & Canada https://www.viewsonic.com/us/company/green/go-green-with-viewsonic/#recycle-program... -
Page 20: Customer Service Contact Information
30-01-2023 10:09 XG2431 - ViewSonic Monitor XG2431_UG_ENG_1a_2020-11-18 Customer Service Contact Information For technical support or product service, see the table below or contact your reseller. https://manuals.viewsonic.com/index.php?title=XG2431_Full_Guide&mobileaction=toggle_view_desktop 20/31... - Page 21 30-01-2023 10:09 XG2431 - ViewSonic Monitor You will need the product's serial number Asia Pacific & Africa Country / Website Region https://viewsonic.com/au/ < Australia https://viewsonic.com/au/> https://www.viewsonic.com/bd/ < Bangladesh https://www.viewsonic.com/bd/> https://www.viewsonic.com.cn < 中囯(China) https://www.viewsonic.com.cn> 香港 (繁體中 https://www.viewsonic.com/hk/ < 文) https://www.viewsonic.com/hk/> Hong Kong https://www.viewsonic.com/hk-en/ <...
-
Page 22: Limited Warranty
30-01-2023 10:09 XG2431 - ViewSonic Monitor ประเทศไทย https://www.viewsonic.com/th/ < (Thailand) https://www.viewsonic.com/th/> https://www.viewsonic.com/vn/ < Việt Nam https://www.viewsonic.com/vn/> South Africa https://www.viewsonic.com/za/ < & Mauritius https://www.viewsonic.com/za/> Americas Country / Website Region United https://www.viewsonic.com/us/ < States https://www.viewsonic.com/us/> https://www.viewsonic.com/us/ < Canada https://www.viewsonic.com/us/> Latin https://www.viewsonic.com/la/ <... -
Page 23: What The Warranty Covers
ViewSonic® warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, and as your sole remedy, repair or replace the product with a similar product. Replacement Product or parts may include remanufactured or refurbished parts or components. -
Page 24: Limitation Of Implied Warranties
Exclusion of damages: ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for: Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages. - Page 25 Exclusion of damages: ViewSonic®’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for: Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
- Page 26 30-01-2023 10:09 XG2431 - ViewSonic Monitor Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico: Name, address, of manufacturer and importers: México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas, Col. San Fernando Huixquilucan, Estado de México Tel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm <...
- Page 27 30-01-2023 10:09 XG2431 - ViewSonic Monitor Distrito Federal: Guadalajara, Jal.: QPLUS, S.A. de C.V. SERVICRECE, S.A. de C.V. Av. Coyoacán 931 Av. Niños Héroes # 2281 Col. Del Valle 03100, México, Col. Arcos Sur, Sector Juárez D.F. 44170, Guadalajara, Jalisco...
- Page 28 If smoke, an abnormal noise, or a strange odor is present, immediately turn the device off and call your dealer or ViewSonic®. It is dangerous to continue using the device. Do not attempt to circumvent the safety provisions of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.
-
Page 29: Glossary Of Terms
30-01-2023 10:09 XG2431 - ViewSonic Monitor if the power-supply cord or plug is damaged. if liquid is spilled onto or objects fall into the unit. if the unit is exposed to rain or moisture. if the unit does not operate normally or has been dropped. -
Page 30: Audio Adjust
30-01-2023 10:09 XG2431 - ViewSonic Monitor Advanced Gamma Allows the user to manually adjust the brightness level of the monitor’s grayscale levels. There are five selections: 1.8, 2.0, 2.2, 2.4, and 2.6. Advanced Sharpness Adjusts the picture quality of the monitor, with a range of 0 to 100. -
Page 31: Maintaining The Monitor
Disclaimer ViewSonic® does not recommend the use of any ammonia or alcohol-based cleaners on the display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the monitor.
