ENGLISH

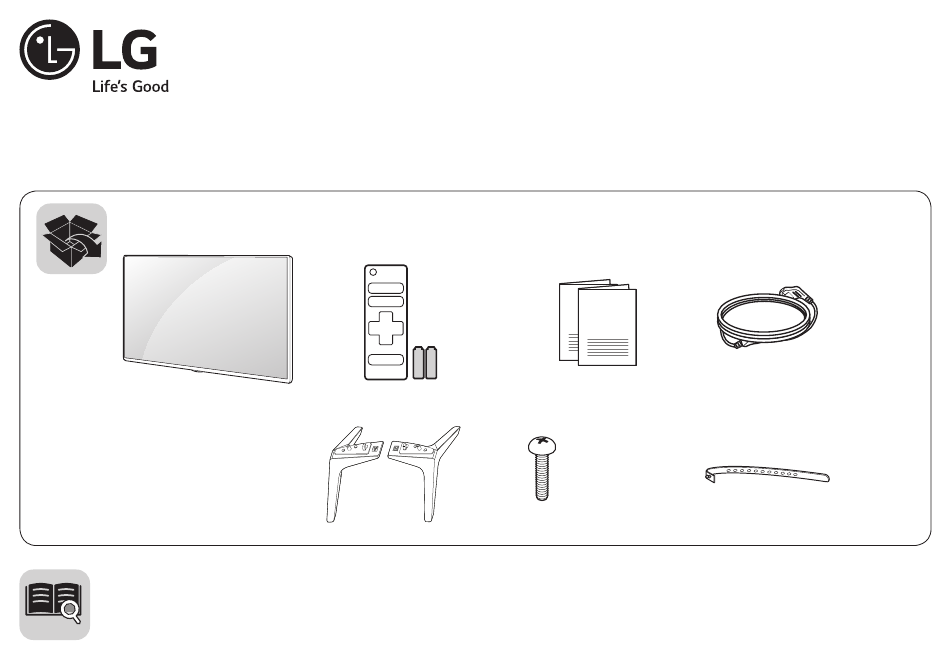

Easy Setup Guide
Please read this manual carefully before operating your set and retain it for future reference.
ESPAÑOL
Guía Rápida de Configuración
Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
FRANÇAIS
Guide de configuration rapide
Avant d'utiliser l'appareil, veuillez lire attentivement ce manuel et le conserver pour pouvoir vous y reporter ultérieurement.
www.lg.com
AAA
X 4
(M4 x L16)
43LV640S
49LV640S
P/No: MFL69843883 (1901-REV01)
Printed in Korea
LED TV

Advertisement

Table of Contents
loading

Related Manuals for LG 49LV640S

Summary of Contents for LG 49LV640S

  • Page 1 Easy Setup Guide 43LV640S Please read this manual carefully before operating your set and retain it for future reference. 49LV640S ESPAÑOL Guía Rápida de Configuración Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
  • Page 2 ENGLISH Read Safety & Reference. ESPAÑOL Leer Seguridad y Consultas. FRANÇAIS Lisez Sécurité et références.
  • Page 7 (22,4) (3.1) (3,1) (20.5) (20,5) (20.2) (20,2) 1,107 1 107 79.4 79,4 11.42 11,42 11.3 11,3 49LV640S-UB 1.0 A / 100 W 1,0 A / 100 W (43.5) (43,5) (27.5) (27,5) (9.2) (9,2) (25.3) (25,3) (3.1) (3,1) (25.1) (25,1) (24.9)

  • Page 9: Safety And Reference

    OWNER’S MANUAL Safety and Reference LED TV* * LG LED TVs are LCD TVs with LED backlighting. Please read this manual carefully before operating your TV and retain it for future reference. 43LV640S 49LV640S 55LV640S www.lg.com *MFL69885582* P/NO : MFL69885582 (1806-REV04) Copyright ©...
  • Page 10 Warning! Important Safety • Only use attachments/accessories specified by the manufacturer. instructions • Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution Read these instructions. Keep these instructions. when moving the cart/apparatus combination to Heed all warnings.
  • Page 11 Electronics. Unauthorized modification could • Use only an authorized AC adapter and power void the user’s authority to operate this product. cord approved by LG Electronics. Otherwise, this • Outdoor Antenna Grounding (Can differ by may result in fire, electric shock, malfunction, or country): If an outdoor antenna is installed, product deformation.

  • Page 12: Optional Extras

    • Keep the product away from direct sunlight. • Product specifications or contents of this manual • Never touch this apparatus or antenna during a may be changed without prior notice due to lightning storm. upgrade of product functions. • When mounting a TV on the wall, make sure not •...

  • Page 13: Lifting And Moving The Tv

    Lifting and Moving the TV Using the Button When moving or lifting the TV, read the following (Depending upon model) to prevent the TV from being scratched or You can operate the TV functions, using the damaged and for safe transportation regardless of button.

  • Page 14: Using The Kensington Security System (Optional)

    Detailed instructions will be included with the wall mount. We recommend that you use an LG brand wall mount. The LG wall mount is easy to adjust or to connect the cables. When you do not use LG’s wall mount bracket, •...

  • Page 15: Other Connections

    Connecting to an Antenna or Cable Connect an antenna, cable, or cable box to watch TV while referring to the following. The illustrations may differ from the actual items and an RF cable is optional. • Remove the stand before installing the TV •...
  • Page 16 (Power) Turns the TV on or off. Returns to the last TV channel. Changes the picture mode. Activates or deactivates the subtitles. Shows information on the current program. Not functional. Changes the sound mode. Resizes an image. (Q.Settings) Accesses the Quick Settings. (Input) Changes the input source.
  • Page 17 Settings To set additional picture options (Q.Settings) • (All Settings) • Picture • Picture Mode Settings • Picture Options To select Picture Mode Adjusts detailed setting for images. • Noise Reduction Eliminates noise in the picture. (Q.Settings) • (All Settings) • Picture • •...

  • Page 18: Troubleshooting

    The customer is responsible to ensure the compatibility of their equipment with any LG Electronics software. If needed, please consult with LG Electronics and update new software versions according to the guidance provided by LG Electronics.

  • Page 19: Specifications

    • Operating Temperature are available for download. 0 °C to 40 °C (32 °F to 104 °F) LG Electronics will also provide open source code • Operating Humidity to you on CD-ROM for a charge covering the cost Less than 80 % of performing such distribution (such as the cost of •...
  • Page 20 Wireless Module (LGSBWAC72) 26.97 23.97 27.00 24.00 Specifications 33.71 29.97 1920 x 1080p 33.75 30.00 Wireless LAN (IEEE 802.11a/b/g/n/ac) 56.25 50.00 Frequency Range Output Power (Max.) 67.43 59.94 2400 to 2483.5 MHz 15 dBm 67.50 60.00 5150 to 5725 MHz 14.5 dBm 5725 to 5850 MHz 14.5 dBm...

  • Page 21: Supported Photo Formats

    My Media Supported Files Supported Video Formats • Maximum data transfer rate: H.264 1,920 x 1,080 Extension Codec @ 60P BP/MP/HP @ L4.2 40 Mbps, HEVC 1,920 x VC-1 Advanced Profile (Except 1,080 @ 60P MP @ L4.1, Main10 Profile @ L4.1 40 Video for WMVA), VC-1 Simple and Mbps (Mega bit per second)

  • Page 22: Fcc Notice

    Regulatory FCC Radio Frequency Interference Requirements (for UNII devices) High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. FCC NOTICE These radar stations can cause interference with and/or damage this device. This device cannot be (For USA) co-located with any other transmitter.
  • Page 23 WARNING! RSS-247 Requirement (For Canada) Never place a television set in an unstable [For product having the wireless function using 5 location. A television set may fall, causing serious GHz frequency bands] personal injury or death. Many injuries, particularly to children, can be avoided by taking simple (1) The device for operation in the band 5150–5250 precautions such as: MHz is only for indoor use to reduce the potential...

  • Page 24: Key Codes

    Key Codes • This feature is not available for all models. Code Code (Hexa) Function Note Function Note (Hexa) (Power) R/C Button R/C Button R/C Button (Home) R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button (Input) R/C Button R/C Button...

  • Page 25: External Control Device Setup

    (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0 x 0557, Product ID : 0 x 2008) USB to serial converter which RS-232C IN is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.

  • Page 26: Customer Computer

    Set ID For Set ID number, see “Real Data Mapping”. (Q.Settings) • (All Settings) to access the main menus. 1 Press 2 Press the Navigation buttons to scroll to General • Set ID and press 3 Press the Navigation buttons to scroll to Set ID and press 4 Scroll left or right to select a set ID number and select .

  • Page 27: Communication Parameters

    Communication Parameters Baud rate : 9600 bps (UART) Stop bit : 1 bit Data length : 8 bits Communication code : ASCII code Parity : None Use a crossed (reverse) cable. Command reference list (Depending upon model) DATA DATA COMMAND1 COMMAND2 COMMAND1 COMMAND2 (Hexadecimal) (Hexadecimal)

  • Page 28: Transmission / Receiving Protocol

    Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] First command to control the TV. (j, k, m or x) [Command 2] Second command to control the TV. [Set ID] You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
  • Page 29 • Commands may work differently depending upon model and signal. [c][ ][Set ID][ ][OK/NG][Data][x] • Using the PC input, you select either 16:9 or 4:3 01. Power (Command: k a) screen aspect ratio. • To control Power *On or Off of the set. •...
  • Page 30 06. Contrast (Command: k g) 11. OSD Select (Command: k l) • To adjust screen contrast. You can also adjust • To select OSD (On Screen Display) on/off when contrast in the Picture menu. controlling remotely. Transmission Transmission [k][g][ ][Set ID][ ][Data][Cr] [k][l][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 64 Data 00 : OSD off...
  • Page 31 15. Balance (Command: k t) 18. Energy Saving (Command: j q) • To adjust balance. You can also adjust balance in • To reduce the power consumption of the TV. You the Sound menu. can also adjust Energy Saving in Picture menu. Transmission Transmission [k][t][ ][Set ID][ ][Data][Cr]...
  • Page 32 * Tune Command Examples: * Digital Antenna/Cable 1. Tune to the Analog antenna (PAL) Channel 10. Data 00 : xx (Don’t care) Set ID = All = 00 [Data 01][Data 02]: Major Channel Number Data 00 & 01 = Channel Data is 10 = 00 0a Data 01 : High byte Channel Data Data 02 = Analog Antenna TV = 00 Data 02 : Low byte Channel Data...
  • Page 33 23. Input select (Command: x b) (Main Picture * For Japan Model • To tune channel to following physical/major/ Input) minor number. • To select input source for main picture. Transmission Transmission [m][a][ ][0][ ][Data00][ ][Data01][ ][Data02][ ] [x][b][ ][Set ID][ ][Data][Cr] [Data03][ ][Data04][ ][Data05][Cr] Data 00 : DTV 10 : ATV...
  • Page 34 If not use the remote-controller with data formats recommended, IR output signals will be suppressed automatically by IR receiver. In this case, LG does not guarantee IR working function. To make sure of this matter, here are two methods as below.

  • Page 35: Child Safety

    CHILD SAFETY: PROPER TELEVISION PLACEMENT MATTERS THE CONSUMER ELECTRONICS INDUSTRY CARES • Manufacturers, retailers and the rest of the consumer electronics industry are committed to making home entertainment safe and enjoyable. • As you enjoy your television, please note that all televisions – new and old- must be supported on proper stands or installed according to the manufacturer’s recommendations.
  • Page 36 LG Customer Information Center Declaration of Conformity For inquires or comments, visit www.lg.com or call; Trade Name Model 43LV640S-UB, 49LV640S-UB, USA, Commercial User 1-888-865-3026 55LV640S-UB CANADA 1-855-286-2456 Responsible LG Electronics Inc. Party Address 1000 Sylvan Ave. Englewood Cliffs NJ 07632 U.S.A...
