- Page 1 *Assembly Guide & Warranty Card Included FLAT/INCLINE BENCH OWNER’S MANUAL Model # SF1000 Revision 102519...
- Page 2 FORCE STRENGTH OWNERS MANUAL IMPORTANT: All Products shown are prototype. Actual product delivered may vary. Product specifications, features & software are subject to change without notice. For the most up to date owner’s manual please visit www.truefitness.com. For documents in additional languages please visit www.truefitness.com/resources/document-library/ IMPORTANTE: Todos los productos mostrados son prototipos.
- Page 3 FORCE STRENGTH OWNERS MANUAL Frank Trulaske began TRUE Fitness over thirty-five year ago with the simple philosophy of delivering superior fitness products, service and support. Today, TRUE is the global leader in premium fitness equipment for the commercial and residential markets. Our goal is to be the leader in technology, innovation, performance, safety and style.
-
Page 4: Table Of Contents
FORCE STRENGTH OWNERS MANUAL TABLE OF CONTENTS: Chapter 1: Safety Instructions Chapter 5: Customer Service Safety Instructions Contacting Service Space Requirements Contacting Sales Working Dimensions Reporting Freight Claims or Parts Damage Warning Decals Chapter 6: Additional Information Proper Training Position Warranty Registration Chapter 2: Assembly Instructions Pre-Assembly Check List... -
Page 5: Chapter 1: Safety Instructions
*for additional information visit http://oehha.ca.gov/prop65 WARNING: Keep equipment stable on flat ground. True Fitness recommends for all strength equipment to be bolted down to the floor to avoid toppling during improper use. WARNING: Replace warning labels that may be worn, damaged or missing. - Page 6 CHAPTER 1: SAFETY INSTRUCTIONS CAUTION: • Health related injuries may result from incorrect or excessive use of exercise equipment. • Take care when getting on or off strength equipment. • If you do not understand how to use/operate a piece of equipment seek assistance from facility staff or trainer to demonstrate safe and proper use.
-
Page 7: Space Requirements
CHAPTER 1: SAFETY INSTRUCTIONS SPACE REQUIREMENTS: TRUE recommends leaving a 40” (1.0m) safety zone on all sides of the unit. Additionally for Functional Trainers there should be enough room left for full extension of all cable in all directions. (See Fig 1) WORKING DIMENSIONS: Height Length... -
Page 8: Warning Decals
WARNING DECALS: WARNING: Replace warning labels that may be worn, damaged or missing. *To replace any worn or missing warning decals contact TRUE Fitness by one of the following: www.truefitness.com or contact customer service at 800-883-8783. Truefitness.com / 800.426.6570 / 636.272.7100... -
Page 9: Proper Training Position
CHAPTER 1: SAFETY INSTRUCTIONS PROPER TRAINING POSITION: A. Adjust the Seat Pad Position (A) B. Adjust back pad position (B). C. Sit on the seat pad and lean back onto the back pad. D. Perform the exercise in a slow, controlled manner. Truefitness.com / 800.426.6570 / 636.272.7100... - Page 10 The assembly of this product requires at least two people to ensure that it is safely and properly assembled. • When ordering, use item number and description from the lists. Use only True Fitness replacement parts when servicing. Failure to do so will void your warranty and could result in personal injury or damage your machine.
-
Page 11: Pre-Assembly Checklist
CHAPTER 2: ASSEMBLY GUIDE PRE-ASSEMBLY CHECKLIST: Box One Contents: Item No. Description QTY. Main Frame Support Bracket Back Pad Bracket Forward Adjustment Bracket Center Adjustment Bracket Seat Pad Bracket Seat Pad Back Pad Head Pad Axle 25.4 x 132.5 Axle 19 x 83.1 Axle 19 x 114.3 Hardware Pack (not pictured) is included in box one as well. -
Page 12: Assembly Steps
CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS: STEP 1 Support Bracket: 1. Attach the Support Bracket to the Main Frame ITEM Description Flat Washer 13 x 24 x 1.5 as shown below. M12 x 80 Socket Head Cap Screw M12 Nylon Lock Nut Main Frame Support Bracket Truefitness.com / 800.426.6570 / 636.272.7100... - Page 13 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 2 Center Adjustment Bracket: ITEM Description 1. Install the Center Adjustment Bracket as Axle 19 x 83.1 shown. Flat Washer 13 x 24 x 1.5 M12 x 140 Socket Head Cap Screw M12 Nylon Lock Nut Center Adjustment Bracket Main Frame...
- Page 14 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 3 Forward Adjustment Bracket: ITEM Description 1. Attach the Forward Adjustment Bracket to the Axle 19 x 114.3 Main Frame as shown Flat Washer 13 x 24 x 1.5 M12 x 140 Socket Head Cap Screw M12 Nylon Lock Nut Main Frame Forward Adjustment Bracket...
- Page 15 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 4 Seat Pad Bracket: ITEM Description 1. Install the Seat Pad Bracket as shown. Axle 25.4 x 132.5 Axle 19 x 83.1 Flat Washer 13 x 24 x 1.5 M12 x 110 Socket Head Cap Screw M12 Nylon Lock Nut Seat Pad Bracket Truefitness.com / 800.426.6570 / 636.272.7100...
- Page 16 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 5 Back Pad Bracket: 1. Attach the Back Pad Bracket to the Center ITEM Description Axle 19 x 83.1 Adjustment Bracket and Seat Pad Bracket as Flat Washer 13 x 24 x 1.5 shown below.
- Page 17 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 6 Seat, Back & Head Pads: ITEM Description 1. Install the Seat, Back & Head Pads as shown. Flat Washer 11 x 20 x 2 M10 x 30 Socket Head Cap Screw Back Pad Head Pad Seat Pad...
-
Page 18: Product Overview

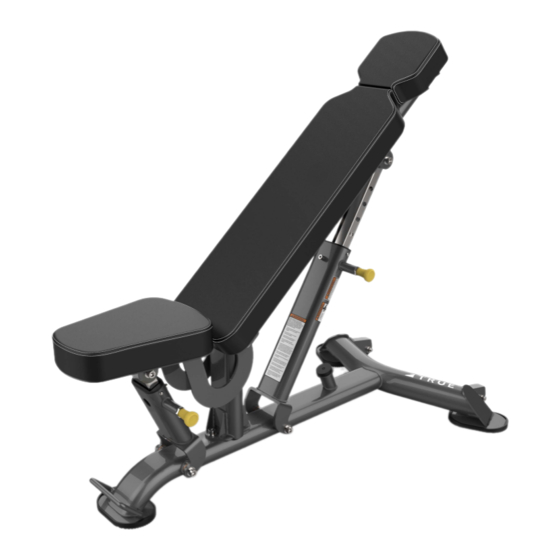

CHAPTER 3: PRODUCT OVERVIEW FLAT/INCLINE BENCH OVERVIEW: Back Pad Adjustment Pin Back Pad Seat Pad Seat Pad Adjustment Pin Truefitness.com / 800.426.6570 / 636.272.7100... -
Page 19: Chapter 4: Care & Maintenance
The following items are critical to the safety of users and maintenance staff as well as to ensure the optimum performance of the machines. These inspections should be performed each day before the equipment is subject to use. TRUE Fitness is not responsible for performing or scheduling regular maintenance or inspections. -
Page 20: Cleaning The Equipment
CAUTION Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and may void the TRUE Fitness Warranty. Never pour or spray liquids on any part of the equipment. Allow the equipment to dry completely before using. -
Page 21: Chapter 5: Customer Service
CONTACTING SERVICE: TRUE Fitness recommends that you gather the serial number, model number, and a brief description of the reason for the request. After information has been gathered you may choose to contact your selling dealer or local service company to set an appointment. -
Page 22: Reporting Freight Claims Or Parts Damage
Obvious damage to external packaging / internal product. Please refuse the shipment and it will be returned to TRUE Fitness by the carrier. Contact the TRUE Fitness customer support team by calling 800.883.8783 or sales support team by calling 800.426.6570 Monday-Friday during normal business hours to notify us that the shipment has been refused. Once we have received the damaged shipment, a replacement shipment will be sent to you. -
Page 23: Chapter 6: Additional Information
NOTE: Buying after-market products from a 3rd party will by contacting TRUE directly at: result in voided warranty. TRUE Fitness, Service Department 865 Hoff Road, St. Louis, MO 63366 Frame: The frame is warranted for defects in material and 1.800.883.8783... - Page 24 CHAPTER 6: ADDITIONAL INFORMATION Commercial Limited Warranty Force Strength Line Save Time and Register Online! Activate Multiple Warranties at truefitness.com The above Limited Warranty is subject to and will be in accordance with the conditions set forth below: NOTE TO AUTHORIZED WARRANTY LABOR PROVIDERS: Warranty labor reimbursement or warranty parts rights may 1.
-
Page 25: Warranty Registration
If you prefer to mail your warranty card, have the owner of the product complete the information below and return it to TRUE Fitness within 30 days from the date of equipment installation.
