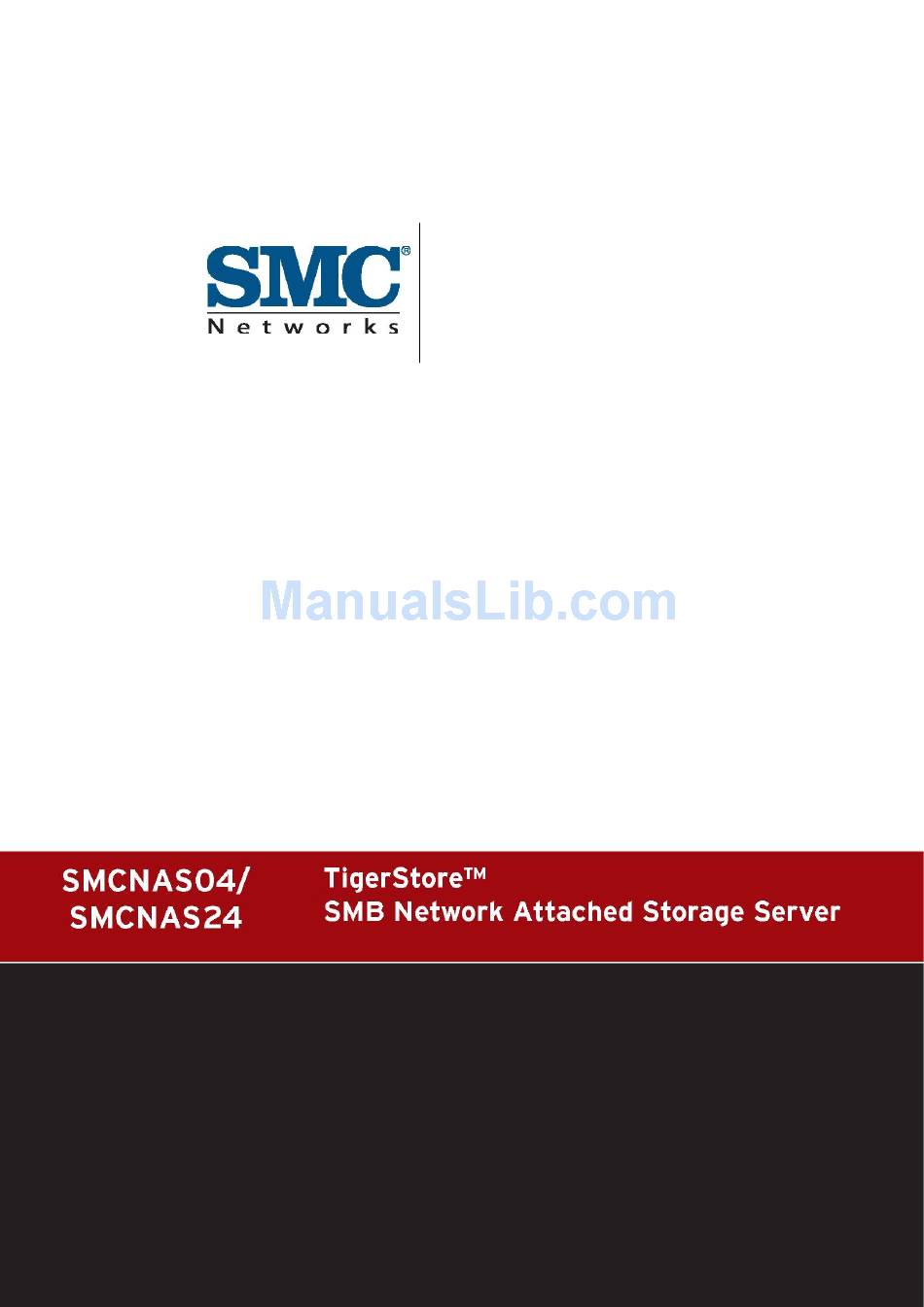

- Page 1 Backup Utility USER GUIDE...
- Page 2 NAS Backup Master User Guide May 2007...
- Page 3 TRADEMARKS All brand and product names are trademarks or registered trademarks of their respective companies. NOTE The information in this manual is subject to change without notice.
-
Page 4: Table Of Contents
Table of Contents Table of Contents... v Chapter 1 Setting Up the Backup Master ... 7 1.1 Installing the Backup Master...7 1.2 Configuring the Backup Master ...22 Backup Now ...26 Basic Setup ...29 Schedule Setup ...32 Advanced Setup ...35 Restore...41 Special notice information ...51... -
Page 5: Chapter 1 Setting Up The Backup Master
Master 1.1 Installing the Backup Master IMPORTANT: Do not turn on power to your storage system and do not connect to your computer until after you have finished installing the Backup Master. You need to install the Backup Master before you can perform any system configurations. - Page 6 4. Click “Next” and the following screen appears.
- Page 7 5. Click “Next” to continue and the following screen appears. If you want to select a different folder, click “Browse” and select your desired folder.
- Page 8 6. To continue, click “Next” and the following screen appear. If you want to select a different Start menu folder, click “Browse” instead and select your desired folder.
- Page 9 7. To continue, click “Next” and the following screen appear. Click “Create a desktop icon” if wish to do so.
- Page 10 8. Click “Next” to continue and the “Ready to Install” screen appears.
- Page 11 9. Click “Install” to continue and the following screen appear, showing the progress of installation.
- Page 12 10. When the next screen appears, click “Finish” to exit the Backup Master installation. The “NAS Backup Master Detector” icon system tray to signify that the Backup Master was successfully installed. would appear on your Windows...
- Page 13 11. Install the Backup program user manual...
- Page 14 12. Click “Next” to continue and select destination location 13. Click “Next” to continue and select start menu folder...
- Page 16 14. Click “Next” to continue and ready to Install...
- Page 17 15. Click “install” to continue and installing...
- Page 18 16. finish install...
- Page 19 17. Press the Power button to turn on your storage system. 18. Connect one end of the Ethernet cable to the network connector on the back of your storage system and the other end to your computer.
-
Page 20: Configuring The Backup Master
1.2 Configuring the Backup Master After installing the Backup Master, you can start the configuration process. Your choice is important and impacts how best you can use the device. To start using the Backup Master: Double-click the “NAS Backup Master Detector” icon system tray, or Select Start Program... - Page 21 If exceed the number of people use the software at the same time, alarm will out as follow picture After entering the correct Product Serial Number or the next time you start up Backup Master, the Main Menu appears as shown:...
- Page 22 There are 5 options on the Main Menu namely: “Backup Now,” “Basic Setup,” “Schedule Setup,” “Advanced Setup,” and “Restore.”...
- Page 23 NOTE: 1. If the device is not connected to your computer or to power, and is not turned on, the following screen appears. Click “Yes” to quit.
-
Page 24: Backup Now
Backup Now The “Backup Now” option allows you to perform a backup based on your settings on the “Basic Setup” menu. When you select “Backup Now” on the Main Menu without first specifying the backup target and destination, the following screen would appear for about 10 seconds. - Page 25 To hide this screen, click “Hide” and an icon would appear on your Windows system tray. Right-click the icon using your mouse and click “SHOW” to restore the screen Or, you can place your mouse on top of the icon to show the progress of your backup operation To cancel the backup process anytime, click “Stop Backup”...
- Page 26 After backup is complete, the following screen appears.
-
Page 27: Basic Setup
2. Select the destination drive where you want to store your backup files on the right window. You can only select the destination drive, Backup Master will create the directory“\Backup Master\backup\”if not yet existing) and store the file(s) there. NOTE: If you want to specify your NAS storage device directly, click the NAS checkbox. - Page 28 Double-click the NAS storage device on the right window and the following screen appears. Enter the default Username “guest” and Password “guest.”...
- Page 29 Click “OK” and the following screen appears showing the folder of your storage device. 3. Click “Finish” and Back to the Main Menu ,The next time you click “Backup Now” on the Main Menu, the Backup Master would perform backup based on your last settings on “Basic Setup.”...
-
Page 30: Schedule Setup
Schedule Setup The “Schedule Setup” option allows you to automatically perform backups. Upon clicking “Schedule Setup” on the Main Menu, the “Schedule Setup” menu would appear. See the previous section for instructions on configuring the basic setup if you have not done so or you want to change the previous settings. To configure your settings for “Schedule Setup:”... - Page 31 If you select “Specific date,” you may scroll through the particular month by clicking the arrow buttons. Set the “Time” (hour:minute) for scheduled backup to occur. Click the “Monthly” checkbox if you want the scheduled backup to be performed every month on your specified date. To select the date(s) to backup automatically, select this date(s) on the left window, then click “...
- Page 32 Just as the scheduled time for backup is about to occur, the following would appear onscreen. Click anywhere inside the dialog box if you do not want the scheduled backup to proceed. If the scheduled backup has already started and you want to terminate it prematurely, right-click the “NAS Backup Master Detector”...
-
Page 33: Advanced Setup
Advanced Setup The “Advanced Setup” option allows you to select Comprehensive or Duplicate backup. Upon clicking “Advanced Setup” on the Main Menu, the following screen would appear to allow you to configure the “Advanced Setup” settings. Select the type of backup. “Comprehensive backup”... - Page 34 1. If you select “Comprehensive backup,” click “Next” and the following screen appears. If you select “Duplicate,” click “Next” and the following screen appears. Only the “No Compression and No Encryption” option is available. Proceed immediately to step 3.
- Page 36 2. Select whether you want to compress and encrypt the files or not. If you select “Compression and Encryption,” you need to enter a password on the “Please input password” text box (up to twelve alphabets and/or numerals but not less than four characters). Confirm the password by typing it again on the “Confirm password”...
- Page 37 “Backup the updated content” selecting this option allows you to backup the files that have been updated as well as filenames not existing on the destination folder only. Backup Master would compare the filename and last saved date and if they are not the same, would perform the backup.
- Page 38 To locate files that was backed-up using the “Duplicate” option, Backup Master will automatically create the following directories – “x:\Backup Master\Duplicates\Basic\D\ Jeffery”,where “x” is the destination drive, “D” is the source drive, and “Jeffery” is the name of the folder and its corresponding contents the particular backup was performed. New backups could be added and easily distinguished using the source drive letter, folder name or filename of the backup that was performed.
-
Page 39: Restore
“Comprehensive backup” option under “Advanced Setup.” Upon clicking “Restore” on the Main Menu, the following screen would appear. NOTE: Click the “NAS“ button to select restore points found on your NAS storage device only. 1. Click the particular restore point that you desire and the following screen appears. - Page 40 2. Click “Next” and the following screen appears. You can select whether to restore to its original location or to a new location.
- Page 41 Restore to original location Upon clicking “Next,” the following warning would appear onscreen.
- Page 42 Restore to new destination Upon clicking “Yes,” the following screen appears. Select the destination drive where you want to save your restored files.
- Page 43 Click “ + ” or right-click the desired destination drive to choose between opening the selected directory and creating a subdirectory.
- Page 44 If you choose to create a subdirectory, the following screen appears that allows you to enter the new folder name. The newly created subdirectory would be shown onscreen.
- Page 46 3. Upon clicking “Yes” (for “Restore to original location”) or “Next” (for “Restore to new destination”), the following screen appears showing the progress of the restore process. To cancel the restore process anytime, click “Stop” and the following screen appears.
- Page 48 Upon completing the restore process, the following screen appears. Click the “Main Menu” icon to return to the Main Menu.
-
Page 49: Special Notice Information
Special notice information If the following screen appears, NAS is processing information. To prevent physical abnormal network connection, please check your netting line whether work normally... - Page 50 Informations Support Technique sur www.smc.com DEUTSCH Technischer Support und weitere Information unter www.smc.com SPANISH En www.smc.com Ud. podrá encontrar la información relativa a servicios de soporte técnico DUTCH Technische ondersteuningsinformatie beschikbaar op www.smc.com PORTUGUES Informações sobre Suporte Técnico em www.smc.com SWEDISH Information om Teknisk Support fi...
