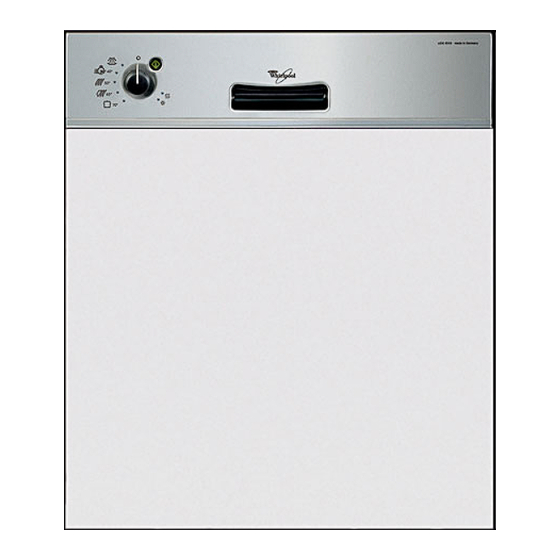

Whirlpool ADG 8640 Quick Reference Manual

ADG 8640
Programme selector knob
Mains On / Off
Start button
Switches "on" when the dishwasher is
operating. Flashes when a fault occurs.
Switches off at the end of the programme.
Indicators
Add regeneration salt
Only add regeneration salt immediately before
starting a wash programme.
Programmes
Pre-Rinse
Quickwash
Eco
1)
Normal
4) 5)
Antibacterial
Intensive
1) Reference programme for energy label in compliance with EN
50242 regulations;
2) Refer to "User instructions";
3) Program data obtained in conformity with European standard EN
50242. Values may vary in relation to usage, e.g.: different loads,
water temperatures - above or below 15°C - as well as water
hardness and power supply voltage, etc.
Important information for Test Laboratories:
For detailed information on the EN comparison test and other tests, contact the following address: "nk_customer@whirlpool.com".
Whirlpool is a registered trademark of Whirlpool USA
Before using the dishwasher, read the user instructions!
Quick Reference Guide
Programme chart
Loading instructions
cold
Crockery to be washed later.
Lightly soiled crockery with no
40°C
dried-on food.
50°C
Normally soiled crockery.
50°C
Normally soiled crockery.
Normally or heavily soiled crockery,
with additional antibacterial action.
Recommended programme for heavily
70°C
soiled crockery, especially suitable for
pans and saucepans.
Detergent
A
-
X
X
X
X
X
4) The bacteria removal efficiency has been tested by the Institut
Pasteur de Lille (France), based on the NF EN 13697 standard of
November 2001.
5) Programme interruption (e.g. the door being opened) may
compromise the result of the antibacterial rinse.
(We reserve the right to make technical modifications)
GB
2) 3)
Consumption
B
Litres kWh Minutes
- 5.0 0.02 10
- 13.0 0.70 30
- 13.0 1.35 80
X 16.0 1.05 160
X 16.0 1.75 120
X 17.0 1.90 135
5019 396 91536
WH/I/K/GB
