GENERATOR
N12000ES
User Manual

Advertisement

Table of Contents
loading

Related Manuals for New Holland N12000ES

Summary of Contents for New Holland N12000ES

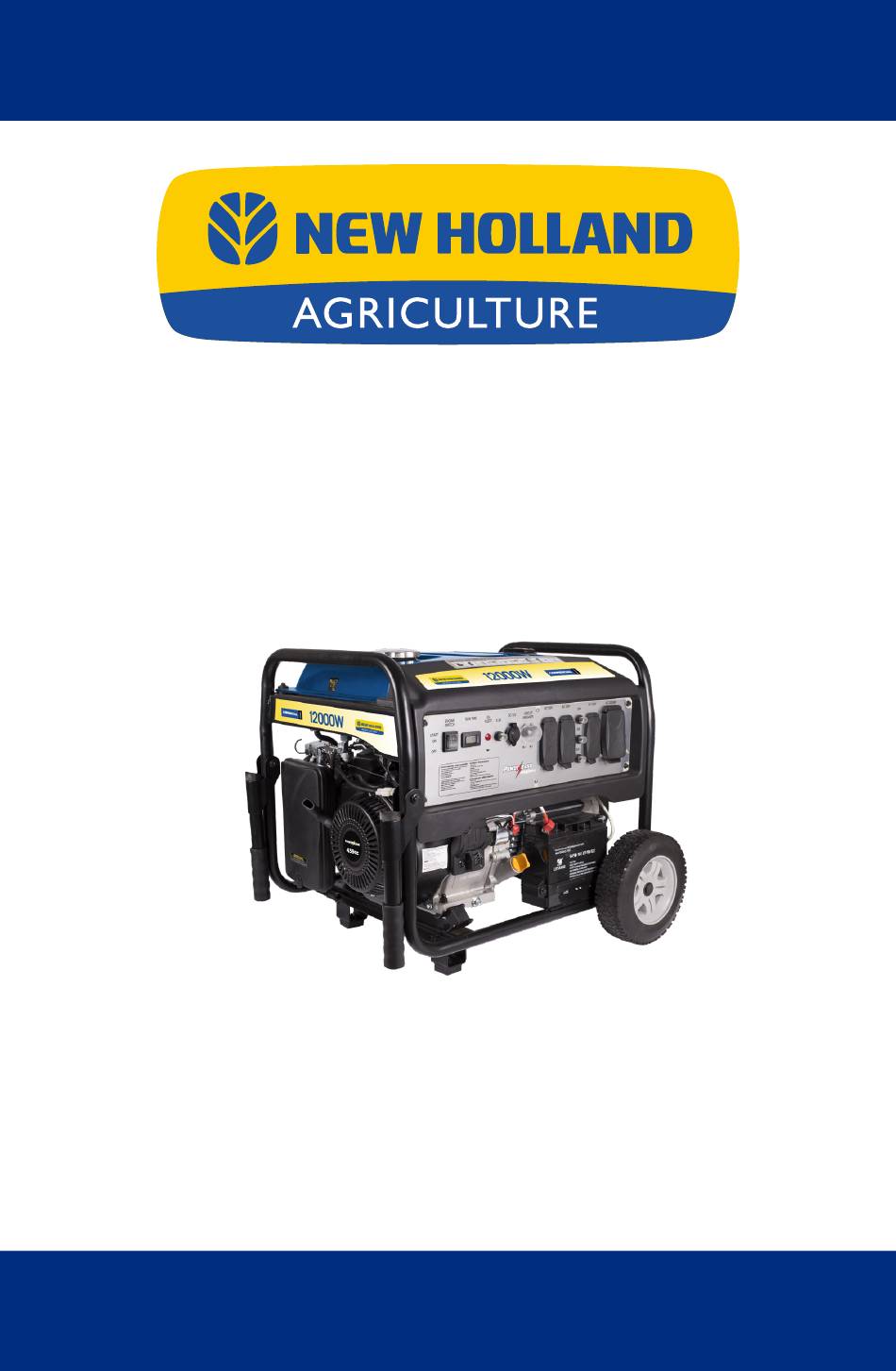

  • Page 1 GENERATOR N12000ES User Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction Using the Operators Manual Registering Your Product Wattage Reference Guide Wattage Reference Guide Safety Safety Rules Hazard Symbols and Meanings Ground Fault Circuit Interrupter Protection Generator Components 13 General Component Chart Preparing the Generator 14 Grounding the Generator Pre-Operation Checklist 15 Engine Oil 15 Fuel...
  • Page 3 TABLE OF CONTENTS Operation 20 Using Electric Power 20 AC Application 21 DC Application 21 Connection of Cable 21 Safety Precautions While Charging 22 Wattage Information 23 Spark Arrester 23 How To Remove The Spark Arrester 23 Clean The Spark Arrester Screen Stopping the Generator 24 Stopping the Generator 24 Oil Sensor...

  • Page 4: Introduction

    INTRODUCTION Attention: Read through the complete manual prior to the initial use of your generator. Using the Operator’s manual The operating manual is an important part of your generator. It should be read thoroughly before initial use, and referred to often to make sure adequate safety and service concerns are being addressed.
  • Page 5 WATTAGE REFERENCE GUIDE DEVICE RUNNING WATTS DEVICE RUNNING WATTS 500 - 750 *Air Conditioner 1700 *Garage Door (12,000 BTU) Opener 1200 3800 *Air Conditioner Hair Dryer (24,000 BTU) 6000 250 - 1100 *Air Conditioner Hand Drill (40,000 BTU) 1200 Battery Charger Iron (20 Amp) 1000...

  • Page 6: Safety

    SAFETY SAVE THESE INSTRUCTIONS Safety Rules This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. The safety alert symbol is used with a signal word (DANGER, CAUTION, WARNING), a pictorial and/or a safety message to alert you to hazards.
  • Page 7 SAFETY WARNING Generator exhaust contains carbon monoxide, a poisonous gas that can kill you. You CANNOT smell or see this gas. • Use the generator outdoors, away from open windows, vents, or doors that could allow the carbon monoxide gas to come indoors. Keep the generator at least 1 meter (3 feet) away from any structure or building during use.
  • Page 8 SAFETY WARNING Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death. When Adding or Draining Fuel • Observe all safety regulations for the safe handling of fuel. Handle fuel in safety containers. If the container does not have a spout, use a funnel.

  • Page 9: Ground Fault Circuit Interrupter Protection

    SAFETY Ground Fault Circuit Interrupter Protection These generators are equipped with a GFCI (Ground Fault Circuit Interrupters) 120V duplex receptacles for protection against the hazards of electrical shock from defective attachments such as, tools, cords, and cables. WARNING The GFCI may not function unless the generator is properly grounded.
  • Page 10 SAFETY This product has been designed with internal grounding or floating bonded neutral. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. DANGER Improper grounding can result in a risk of electrocution. Check with a qualified electrician for your local requirements if you are in doubt as to whether the unit is properly grounded.
  • Page 11 SAFETY Important Safety Instructions WARNING To reduce the risk of injury, read this operator’s manual completely before using. When using this product, the following basic precautions should always be followed. • Do not enclose the generator or cover it. The generator may become overheated if it is enclosed.
  • Page 12 • Make sure the engine is stopped before starting any maintenance, servicing or repair. NOTE: Make sure maintenance and repair of the generator are performed by properly trained personnel only. SAVE THESE INSTRUCTIONS N12000ES moDEl 16HP ENGINE 459cc DISplACEmENT...

  • Page 13: Generator Components

    GENERATOR COMPONENTS The following diagram is intended for general reference purposes only. Your unit may differ in several aspects. For specific model information, please visit: CNHPOWEREQUIPMENT.COM 11. DC Connection 1. Control Panel 12. DC Breaker 2. Fuel Tank 13. Hour Meter 3.

  • Page 14: Preparing The Generator

    PREPARING THE GENERATOR Grounding Instructions DANGER Improper connection of the equipment grounding conductor can result in a risk of electrocution. Check with a qualified electrician if you are in doubt as to whether the unit is properly grounded for your local regulations. The ground terminal on the frame can be used to connect the generator to a suitable ground source.

  • Page 15: Pre-Operation Checklist

    PRE-OPERATION CHECKLIST Engine Oil Before checking or refilling oil, be sure the generator is placed on a stable and level surface with the engine stopped. This generator uses SAE 10W30 oil. 1. Remove oil dipstick and check the engine oil level. 2.

  • Page 16: General Recommendations

    PRE-OPERATION CHECKLIST WARNING DO NOT overfill the tank, leave room for the fuel to expand. 1. If fuel level is low, refill with unleaded automotive gasoline. 2. Check fuel gauge while filling. 3. When using the generator for the first time or stopping due to the fuel running out, pull the recoil handle several times after filling the tank.

  • Page 17: Check Generator Surroundings

    PRE-OPERATION CHECKLIST Check Generator Surroundings When listening to a radio near the generator, the radio sound may be disturbed on account of the radio wave conditions and the radio performance from the generator. WARNING Keep area clear of flammables or other hazardous mate- rials.
  • Page 18 STARTING YOUR GENERATOR 3. Pull the recoil starter handle slowly until passing the compression point (resistance will be felt), then return the handle to its original position and pull briskly. 4. After starting, allow the recoil starter handle to return to its original position with the handle still in your hand.

  • Page 19: Electric Start

    STARTING YOUR GENERATOR Electric Start 1. Make sure all appliances are disconnected from the generator. 2. Turn engine choke switch to the START (ON) position. (When the engine is warm or temperature is high, start engine with the choke switch in the “OFF” position). 3.

  • Page 20: Operation

    OPERATION Using Electric Power WARNING Risk of electrocution. Make sure that the appliance is switched off before connecting it to the generator. • DO NOT move the generator while it is running. AC Application 1. Make sure the voltage indicated on the voltmeter is at the normal level (approx.

  • Page 21: Dc Application

    OPERATION DC Application The DC terminal is used for trickle charging 12 volt batteries or low amperage drawing DC tools or appliances.. It provides 12V - 8.3A (100W) of maximum power. Connection of Cable Connect positive terminal (red) on generator to positive (+) terminal on battery.

  • Page 22: Wattage Information

    OPERATION Wattage Information Some appliances need a “surge” of energy when starting. This means that the amount of electrical power needed to start the appliance may exceed the amount needed to maintain its use. Electrical appliances and tools normally come with a label indicating voltage, cycles / Hz, amperage (amps) and electrical power needed to run the appliance or tool.

  • Page 23: Spark Arrester

    OPERATION Spark Arrester The spark arrester must be cleaned regularly to keep it functioning as designed. A clogged spark arrester: • Prevents the flow of exhaust gas • Reduces engine output • Increases fuel consumption • Makes starting difficult CAUTION If engine has been running, the muffler and the spark arrester will be very hot.

  • Page 24: Stopping The Generator

    STOPPING THE GENERATOR Stopping The Generator 1. Turn off the power switch of the electric equipment and unplug the cord from receptacle of the generator. 2. Allow the engine about 3 minutes to cool down without load before stopping. 3. Push the engine switch to the OFF position. 4.

  • Page 25: Troubleshooting

    TROUBLESHOOTING Troubleshooting Chart If you are experiencing a problem that is not listed in this chart, or have checked all the possible cause listed and you are still experiencing the problem, see your authorized dealer. Problem Cause Correction Engine is running, 1.

  • Page 26: Maintenance

    MAINTENANCE Maintenance CAUTION Make sure the engine is stopped before starting any maintenance, ser- vicing or repair. NOTE: It is recommended to use ear and eye protection when performing operation, maintenance and repair of the generator. Maintenance, replacement or repair of the emission control devices and systems must be performed by an authorized service provider.

  • Page 27: Changing Engine Oil

    MAINTENANCE Changing Engine Oil Change oil after the first 20 hours of operation. Thereafter it should be changed every 100 hours. This generator uses SAE 10W30 oil. 1. Drain oil by removing the drain plug and the oil filler cap while the engine is warm.

  • Page 28: Maintenance Schedule

    MAINTENANCE CAUTION Since the fuel (gasoline) will deteriorate with time, replace fuel (gasoline) with fresh fuel periodically; every three months or add a fuel stabilizer. 1. Check the fuel (gasoline), engine oil, and air cleaner. 2. Start engine. 3. With appliances such as lighting activated, run the engine for over ten minutes.

  • Page 29: Transporting & Storage

    TRANSPORTING & STORAGE Transporting When transporting the generator, make sure that the fuel (gasoline) is drained from the tank. WARNING To prevent fuel spillage due to the vibration and impact, never transport the generator with fuel (gasoline) in the tank. Secure the tank cap. To avoid the risk of the gasoline flammability, never leave the generator in an area exposed to direct sunlight or high temperatures for a long period time.
  • Page 30 If you need assistance with the assembly or operation of your Generator please call 1-855-850-6668...
