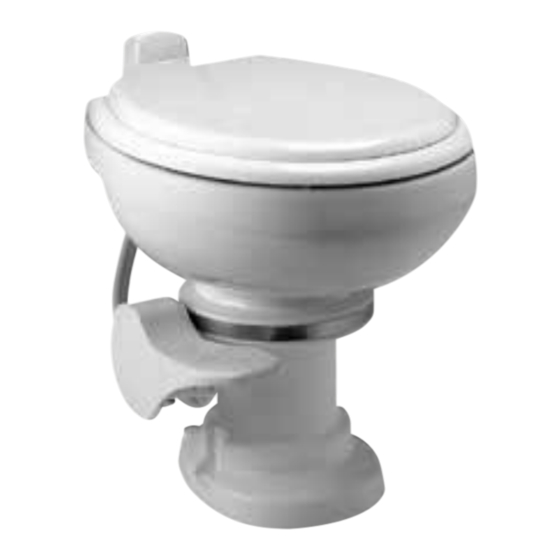

Gravity-Discharge Toilets
INSTRUCTION MANUAL
IMPORTANT NOTICE
Dometic
toilet systems must be
®
installed according to Dometic's
recommended procedures.
110
This manual must be read and understood before
adjustment, maintenance, or service is performed.
Modification of this product can result in property
damage.
210
WARNING
1
510H
Advertisement
Table of Contents
Related Manuals for Dometic 510H
Summary of Contents for Dometic 510H
- Page 1 INSTRUCTION MANUAL WARNING IMPORTANT NOTICE Dometic toilet systems must be ® installed according to Dometic’s This manual must be read and understood before recommended procedures. adjustment, maintenance, or service is performed. Modification of this product can result in property damage.
-
Page 2: Toilet Model Identification
(see page 8). Operation To prepare the Dometic toilet for use, check to be sure water supply to the toilet is connected. Turn on water supply and check system for leaks. Flush toilet and check for leaks. -
Page 3: Installation
11 inches from back wall (Figure A). 2. If installing new floor flange, make certain that the toilet mounting bolts align properly with Dometic toilet mounting pattern (Figure B). 3. Secure flange to floor using at least four flat-head screws (one each at the front, back, right and left sides of flange) through countersunk holes. -
Page 4: Winterization And Storage
Winterization and Storage When a Dometic toilet is stored for long periods of time or may be exposed to temperatures below freezing, the toilet must be winterized or stored according to one of the following procedures. -
Page 5: Deodorants And Special Tissue
Toilet warranty does not cover freeze damaged water valve that may result from improper winterization. Deodorants and Special Tissue Your Dometic toilet requires the regular addition of a deodorant product to reduce malodors and to help break down holding tank contents. Several factors should be considered in selecting a deodorant product. -
Page 6: Troubleshooting Guide
Troubleshooting Guide SEAL BAND CLAMP DISK FASTENER Dometic toilet base assembly FLUSH BALL FLUSH PEDAL BAND CLAMP WATER VALVE ASSEMBLY TOP VALVE CAP FILTER SCREEN SHAFT SPRING CARTRIDGE VALVE BODY Dometic toilet bowl, WATER rear view VALVE SCREWS PEDAL COVER... - Page 7 Problem Possible Cause Service Instruction 3. Flush ball will not close a. Too much friction between flush a. Lubricate between flush ball and completely. ball and ball seal. seal with lubricant (e.g. silicone spray, furniture polish). b. Water valve screws are too tight. b.
-
Page 8: Two-Year Limited Warranty
90 days from the date of purchase. 1D. This warranty covers all parts of the Dometic toilet which is warranted to be free of defects in material and workmanship under normal use.
