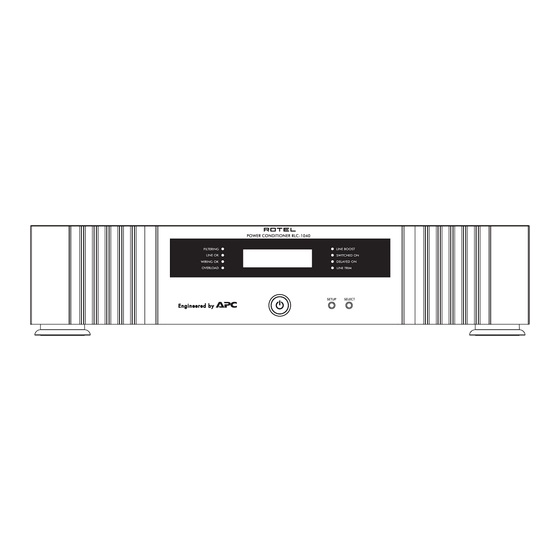

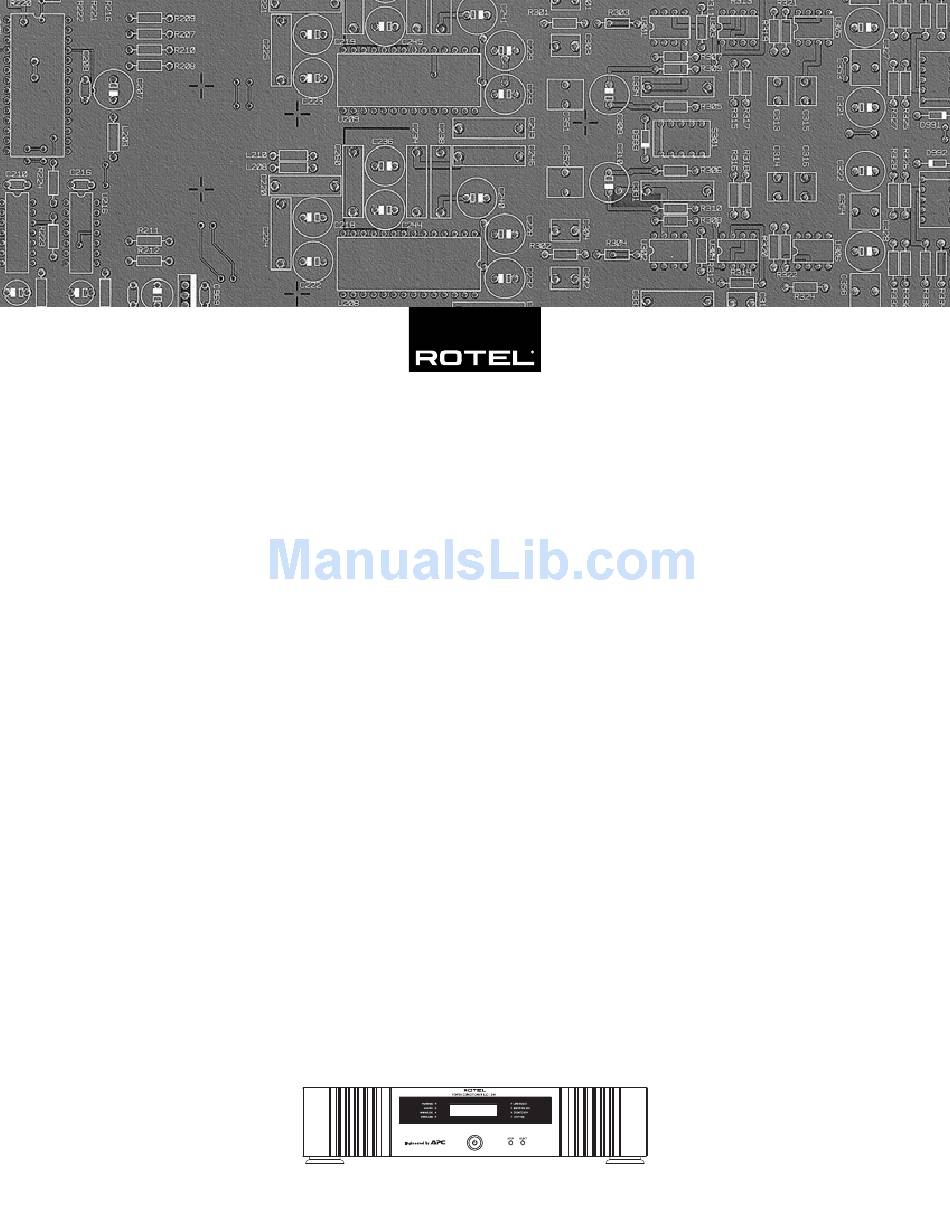

- Page 1 Owner’s Manual RLC-1040 Power Conditioner...
-
Page 2: Important Safety Information
RLC-1040 Power Conditioner Important Safety Information WARNING: There are no user serviceable parts inside. Refer all servicing to qualified service personnel. WARNING: To reduce the risk of fire or electric shock, be sure that the apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. -
Page 3: Front And Rear Panel Controls And Connections
English Front and Rear Panel Controls and Connections � � � � � � � � � � � � � � � � � � � Rack Ear Mounting... -
Page 4: Table Of Contents
– the pursuit of equipment that is musical, reliable and af- fordable. All of us at Rotel thank you for buying this product and hope it will bring you many hours of enjoyment. -
Page 5: Parts List
Rotel dealer for answers to any questions you might have. In addition, all of us at Rotel welcome your questions and comments. Save the RLC-1040 shipping carton and pack- ing material for future use. -
Page 6: Delayed On Status Indicator 8
“IN”, connect other cables from the connectors marked “OUT” to the device(s) being protected (CATV box or Cable Modem). The RLC-1040 has an internal cable splitter so a single cable input can provide signals to two components. The RLC-1040 also provides the same surge protection for your satellite or RF antenna sys- tem. -
Page 7: Input Power Connector
STANDBY mode. It can remain connected and active at all times. Recovery From a Power Failure If there is a power failure while the RLC-1040 is on, the unit will automatically turn itself back on when power is restored. If it is in “STANDBY”... -
Page 8: Dimmer Function
AVR Range Function Allows you to adjust the AVR (Automatic Voltage Regulation) system of the RLC-1040. It can be set to: Narrow, Normal or Wide. Narrow AVR Range – Takes input voltages from 100-132 VAC and regulates it to 120 VAC ±... -
Page 9: Status And Information Screens
Solution: Check both home and unit circuit breakers. If the circuit breaker located on the rear of the RLC-1040 has tripped, the center post will extended outwards. Push it back in to reset it. If the trip occurs again, reduce the amount of equipment plugged into the unit and try again. -
Page 10: Limited Warranty
Physical Dimensions (H x W x D) Unpackaged Weight Shipping Weight Safety Agency Approvals All specifications are accurate at the time of printing. Rotel reserves the right to make improvements without notice. 92V - 145V 120 Vac 47 - 63 Hz 12 Amps... - Page 12 082 OM RLC 1040 032306 English The Rotel Co. Ltd. 10-10 Shinsen-Cho Shibuya-Ku Tokyo 150-0045 Japan Phone: +81 3-5458-5325 Fax: +81 3-5458-5310 Rotel of America 54 Concord Street North Reading, MA 01864-2699 Phone: +1 978-664-3820 Fax: +1 978-664-4109 Rotel Europe...
