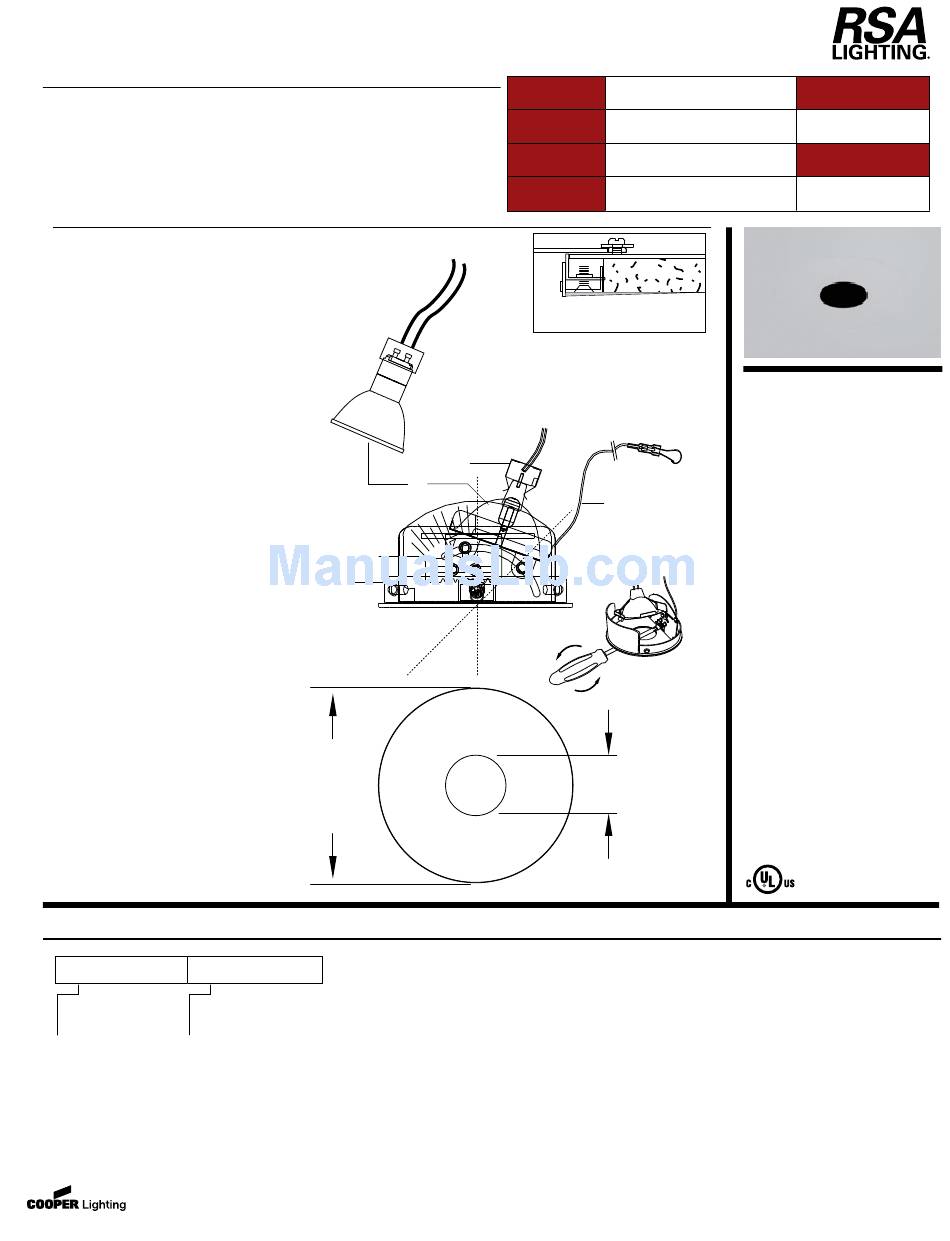

DESCRIPTION
4" round recessed trimless adjustable pinhole fixture with hot aiming
feature. For use with 12V MR16 lamp 71W max. or CMHMR16 20W or
39W.
For use in downlighting / accent applications.
SPECIFICATION FEATURES
A ...Trimless Fixture
Round adjustable pinhole trimless fixture.
Includes bullet plunger retainers for
smooth snap-in action during installation
and removal of trim for relamping. Helps
guard against plaster cracking.
B ...Lamp
For use with 12V MR16 lamp 71W max.
or CMH MR16 20W or 39W. Lamp not
included. Lamp holder has 45º HOT
AIMING adjustability. 12V MR16 fixture
includes clear protective glass lens
and can accept up to three (3) optical
accessories total.
C ...Socket
Posi-Grip bi-pin socket for 12V MR16.
GX10 for metal halide lamps. (Included
with Quiet Ceiling Housing sold
separately)
D ...Hot Aiming
Lamp may be adjusted with the power
on by using a philips screwdriver for up
to 45º tilt. Self locking rack and pinion
mechanism and visual angle indicators
ensure precise adjustment.
E ...Finish
Trim face is powder coated in white,
black, industrial silver, stainless
steel or primer finish for painting in
existing ceiling color. All other internal
components are flat black.
F....Safety
Steel safety cable provided. Attaches
to tab inside housing to prevent falling
during maintenance or as a result of
accidental dislodging of the trim.
ORDERING INFORMATION
QCT1775
Fixture
Finish
QCT1775 =
WH
4" Round Trimless
BK
Pinhole Fixture
S
for 12V MR16 or CMH MR16
SS
PM
www.cooperlighting.com
D
A
4.00"
DIA.
White
=
Black
=
Industrial Silver
=
Stainless Steel (painted)
=
Primer
=
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
Catalog #
Project
Comments
Prepared by
Ceiling mudding compound is applied
right to the edge of the fixture.
• 12V MR16 71W max.
• CMH MR16 20W or 39W
C
B
45
30
15
0
0º - 45º
QUIET CEILING
4" Round Trimless
F
Recessed Pinhole
Hot Aiming
QCT904RM / QCT904RMMH
1.34"
DIA.
Type
Date
TRIMLESS
QCT1775
Fixture
FOR 12V MR16 71W max.
CMH MR16 20W or 39W
Compatible Housings:
QCT900 / QCT900MH
QCT902IC / QCT902ICMH
QCT906SP / QCT906SPMH
rev 030108
