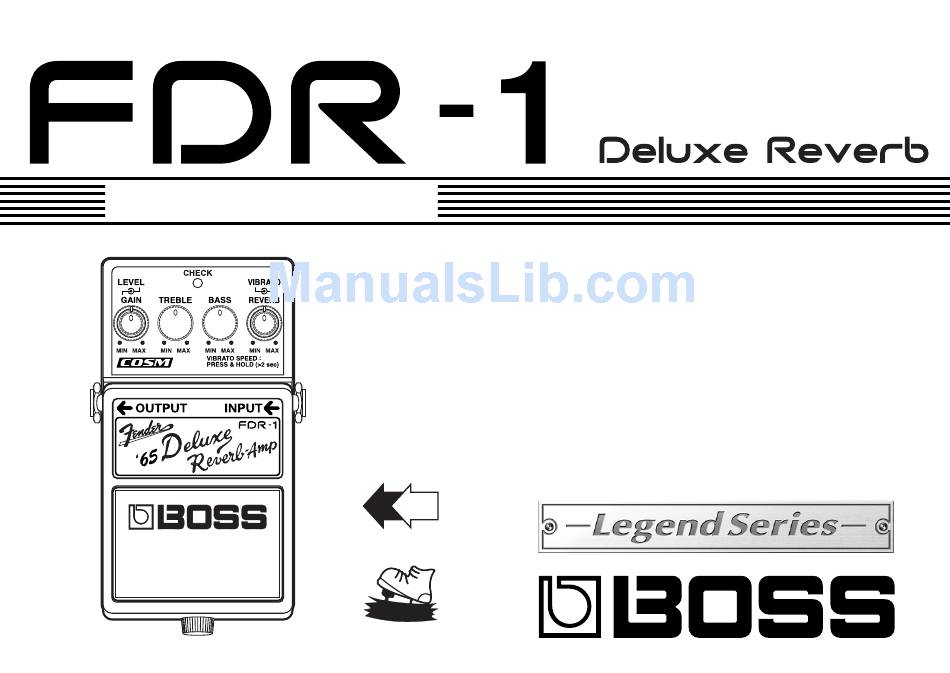

- Page 1 Owner’s Manual AC & BATTERY POWERED...
- Page 2 Thank you, and congratulations on your choice of the BOSS FDR-1 Deluxe Reverb. Before using this unit, carefully read the sections entitled: “USING THE UNIT SAFELY” and “IMPORTANT NOTES” (supplied on a separate sheet). These sections provide important in- formation concerning the proper operation of the unit.
-
Page 3: Main Features
● Uses COSM technology to model the amp sound of a Fender® DELUXE REVERB®. ● Makes it easy for you to enjoy that vintage Fender® amp sound simply by connecting the FDR-1 to your usual guitar amp. ● Features reverb and vibrato effects like those on an actual DELUXE REVERB® amp. -
Page 4: Panel Descriptions
AC adaptor. * If there is a battery in the unit while an AC adaptor is being used, the FDR-1 will switch over to battery-powered operation should the line voltage be interrupted due to a power... -
Page 5: Output Jack
* These jacks double as power switch. Power to the FDR-1 is turned on when you plug into the INPUT jack; the power is turned off when the cable is unplugged. When not using the FDR-1, be sure to disconnect the plug from the INPUT jack. - Page 6 Panel Descriptions fig.FDR-1_name1.eps 7. GAIN Knob This adjusts the amount of distortion and the volume level. Turning it clockwise makes distortion stronger and increases the volume level. 8. LEVEL Knob This adjusts the volume of the effect sound. * No sound is output when this knob is turned completely counterclockwise.
- Page 7 Connections * Inserting a connecting plug into the INPUT jack turns on the power to the unit. * Raise the amp volume only after turning on the power to all connected devices. * The use of an AC adaptor is recommended as the unit’s power consumption is relatively high.
-
Page 8: Recommended Settings
Connections Recommended Settings fig.FDR-1-connenct-e.eps Guitar Amplifier (JC-120 etc.) * This unit is equipped with a protection circuit. A brief interval (a few seconds) after power-up is required before the unit will operate normally. 9V DC/200 mA AC Adaptor BOSS PSA-series... - Page 9 Recommended Settings for a Roland JC-120 Set to OFF fig.FDR-1_JC-120.eps Recommended Settings for a Fender® Combo Amp fig.FDR-1_TWINREVERB.eps BRIGHT MAX MIN TREBLE MIDDLE Set to OFF Recommended Settings for a Stack fig.FDR-1_JCM2000.eps PRESENCE We recommend using a clean setting (no dis- tortion) on the connected amp.
-
Page 10: Operating The Unit
Operating the Unit fig.FDR-1_operation1.eps 1. After you have made the necessary connections p. 8 , set the panel knobs as shown in the illustration. 2. Depress the pedal switch to turn the effect on. (The CHECK indicator lights when the effect is on.) fig.FDR-1_operation2.eps 3. - Page 11 The rate will be stored in FDR-1. When the vibrato rate is changed, the actual vibrato effect and the indicated scale of VIBRATO knob might be different.
- Page 12 * You can also set the rate by turning the VIBRATO knob while depressing the pedal switch (p. 11). When you’ve finished setting the rate, release the pedal switch, then depress it again, holding it down for two or more seconds. Red/Green Blinking Press and hold Tap the FDR-1’s pedal the FDR-1’s pedal switch switch in timing with the for at least two tempo.
- Page 13 * You can also set the rate by turning the VIBRATO knob while depressing the pedal switch (p. 11). When you’ve finished setting the rate, release the pedal switch, then depress it again, holding it down for two or more seconds. Red/Green Blinking Press and hold Tap the FDR-1’s pedal the FDR-1’s pedal switch switch in timing with the for at least two tempo.
-
Page 14: Changing The Battery
Changing the Battery When the indicator goes dim or no longer lights while the effect is on, it means that the battery must be replaced. Replace the battery following the steps below. * The use of an AC adaptor is recommended as the unit’s power consumption is relatively high. -
Page 15: Troubleshooting
Check the AC adaptor connection (p. 7, p. 8). * Never use any AC adapter other than one specified for use with the FDR-1. ● Is the battery low or dead? Replace it with a new battery (p. 14). -
Page 16: Setting Samples
Setting Samples Standard Crunch Sound fig.FDR-1-sample1.eps Hard Overdrive Sound fig.FDR-1-sample1.eps Surf Rock Sound fig.FDR-1-sample1.eps Vibrato Sound fig.FDR-1-sample1.eps For details about the vibrato rate, please refer to p. 12, p. 13. -
Page 17: Setting Memo
Setting Memo fig.FDR-1-memo.eps fig.FDR-1-memo.eps fig.FDR-1-memo.eps fig.FDR-1-memo.eps... - Page 18 Setting Memo fig.FDR-1-memo.eps fig.FDR-1-memo.eps fig.FDR-1-memo.eps fig.FDR-1-memo.eps...
-
Page 19: Specifications
Specifications FDR-1: Deluxe Reverb Nominal Input Level:... -20 dBu Input Impedance:... 1 MΩ Nominal Output Level:... -20 dBu Output Impedance: ... 2.2 kΩ Recommended Load Impedance:... 10 kΩ or greater Controls:... Pedal switch, GAIN knob, LEVEL knob, TREBLE knob, Indicators:...CHECK indicator (for effect on/off status and battery check) Connectors:... - Page 20 Specifications Weight: ... 440 g /1 lb (including battery) Accessories... Owner’s manual, leaflet (“USING THE UNIT SAFELY,” Option ... AC adaptor (PSA-series) * 0 dBu = 0.775 Vrms * In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
- Page 21 MEMO...
- Page 22 MEMO...
-
Page 23: Federal Communications Commission Radio Frequency Interference Statement
This product complies with the requirements of European Directive 89/336/EEC. FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 24 G6027116R1...
