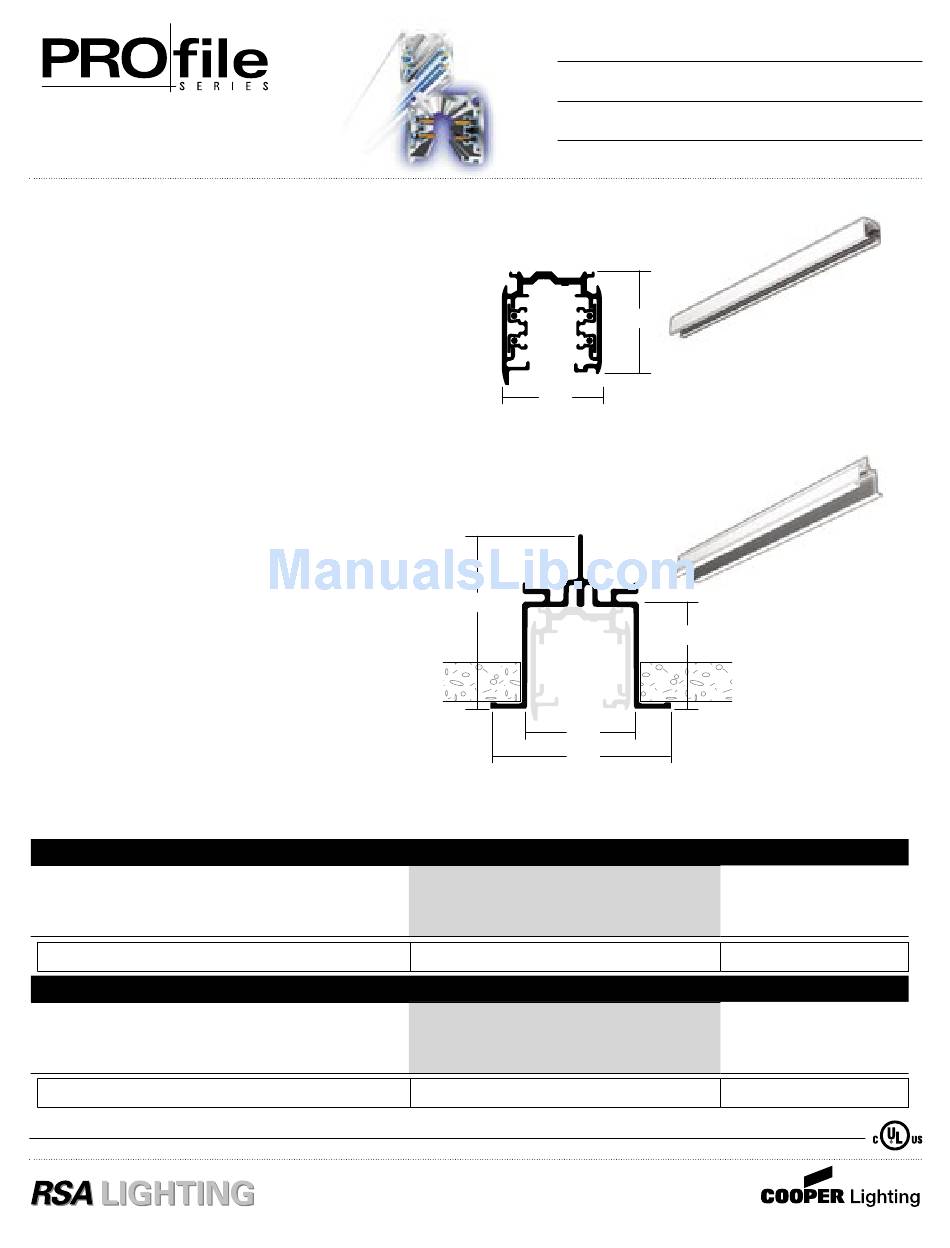

20 Amp Track
Two Circuit Two Neutral - 120V
TEK4
Superior performance for dimmed lighting, low life-cycle
cost, and high power handling capability make RSA's Profile
Series 20 Amp 2 Circuit / 2 Neutral track an excellent choice.
This system is ideal for dimming intensive applications. The
independent neutrals guarantee that the two circuits are
completely isolated. Cross-circuit interference and neutral
harmonics are completely eliminated, essential for trouble
free dimming. The lack of harmonics ensures superior fixture
performance and longer equipment life. Independent neutrals
also offer twice the power handling capacity of ordinary common
neutral track.
Profile Series 20 Amp 2 Circuit / 2 Neutral track is engineered
to be a durable, dependable, and simple-to-install lighting
solution. The track's extruded aluminum construction and
continuously crimped conductor ensure mechanical strength
and electrical reliability. The integral suspension rail and pre-
drilled mounting holes of the track simplify installations.
• Independent Neutrals - enable greater power capacity (2 x
20A); Dimming capability-dim on two independent circuits
without harmonics or interference on the neutral conductor.
• Oversized Conductors - for higher operating safety and
reduced overload potential.
• Secure Bus Bar Insulation - firmly crimped insulation secures
both conductors and insulation for the life of product
• Separate Mechanical Suspension Points - provides superior
weight bearing capacity; ensures electrical contact integrity
and reduces likelihood of arcing.
• Polarity Ridge - takes the guesswork out of connector and
track alignment during installation.
Item
20 Amp Track Section
❑ TEK4
Two Circuit / Two Neutral
120 Volt Circuit
TEK4
Item
❑ FTP4
Recessed Housing for Two Circuit / Two
Neutral Track Section
FTP4
Ordering Example:
TEK4 12 1
Description: 20 Amp Track Section Two Circuit / Two Neutral - 12 foot length - Aluminum Finish
