Summary of Contents for Vizio M21d-H8R

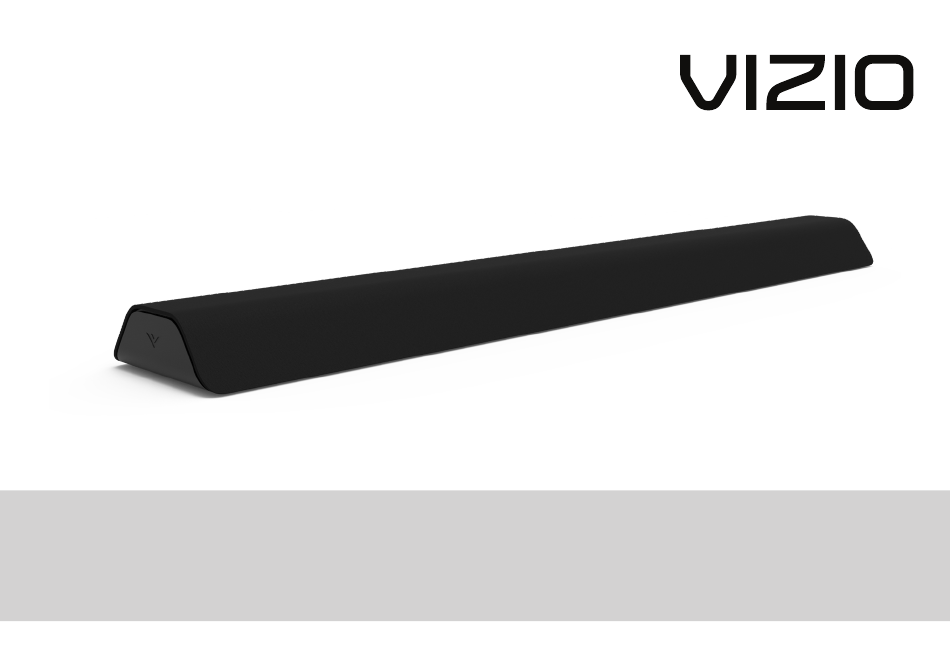

- Page 1 USER MANUAL Model: M21d-H8R Model: M21d-H8R VIZIO 2.1 Channel Sound Bar with Dual Integrated Subwoofers VIZIO 2.1 Channel Sound Bar with Dual Integrated Subwoofers Please read this guide before using the product. Please read this guide before using the product.
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Your Unit is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire. To prevent your Unit from being damaged, the following rules should be observed for its installation, use, and maintenance. Please read the following safety instructions before operating your Unit. Keep these instructions in a safe place for future reference.
- Page 3 IMPORTANT SAFETY INSTRUCTIONS • The wall socket should be located near your Unit and be easily accessible • Keep your Unit away from moisture. Do not expose your Unit to rain or moisture. If water penetrates into your Unit, unplug the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Package Contents ............................5 Controls & Connections ..........................6 Using the Remote ............................11 Proper Placement ............................12 Mode & Level Settings ..........................13 Using Button Combinations ........................16 Programming the Sound Bar ........................17 Bluetooth Pairing ............................18 Using Bluetooth Mode .......................... -
Page 5: Package Contents
Package Contents VIZIO Remote Control Power Cable Sound Bar with 2x AAA Batteries HDMI Cable Stereo RCA to 3.5mm to 3.5mm Digital Optical 3.5mm Audio Cable Audio Cable Cable 2 x Wall Mount Brackets Wall Mount Template User Manual Quick Setup Steps... -
Page 6: Controls & Connections
Controls & Connections AUX In AUX VA Analog Audio In Analog Audio In Bottom of Sound Bar (Stereo 3.5mm) (Stereo 3.5mm) Power Port Digital Optical Audio In HDMI In HDMI (ARC) Out to TV Supports .WAV and .MP3 file format playback only. Only use this port to connect a Voice Assistant device. - Page 7 Controls & Connections Front of Sound Bar Right Side Power Press to turn on or off. Input Press to change the audio source. Volume Increase or decrease the loudness of the audio. Bluetooth Input Hold to pair. (See ‘Bluetooth Pairing’ for more information.) ENG - 7...
- Page 8 First-time Setup Choose the best possible connection cable type and connect it to your TV. Bottom of Sound Bar BETTER GOOD BEST Digital Optical 3.5mm to HDMI ARC Cable RCA cable Cable Be sure the TV port is an audio Some TVs do not pass through digital audio: Not all TVs have the audio outputs shown.
- Page 9 First-time Setup Bottom of Sound Bar Connect the power cable to the sound bar AC IN as shown. Plug the power cable into an electrical outlet. ENG - 9...
- Page 10 When needed, VIZIO recommends replacing the batteries that came with this remote with two, new Duracell ‘AAA’ alkaline batteries. After turning on both your TV and sound bar, it will automatically begin searching for an active input.
-
Page 11: Using The Remote
Using the Remote Display Displays Sound Bar Settings Input Change the input source. Power (Long press for Auto Input Search.) Turn on or off Bluetooth Press to go to Bluetooth Mode Select an option, play or pause. (Long press for Pairing Mode) (Long press for Info) Previous Next... -
Page 12: Proper Placement
Proper Placement For the best surround sound experience, position the sound bar as shown. The sound bar should be close to ear level (approx. 2-3 ft. off the floor). Sound bar is centered below the TV. (If your TV permits it, you can also slide the sound bar underneath the TV.) ENG - 12... -
Page 13: Mode & Level Settings
The sound bar will be discoverable for 15 Searching: Flash from left Bluetooth Pairing minutes. You can now search for the sound bar (VIZIO M21d) using your Bluetooth Device. to right continuously. The sound bar will power down if no device is found. - Page 14 Mode & Level Settings Function LED Behavior Description SETUP > PwrLED > Use the Next/Previous buttons and OK button to enable/disable the Power LED Power LED. PwrLED Note: Disabling the Power LED will also mute voice notifications. SETUP > EcoPwr > Use the Next/Previous buttons to enable/disable Eco Power Mode. Eco Power Mode When ON, the sound bar will go into standby after a period of inactivity.
- Page 15 SETUP > VZtvRmt > Use the Next/Previous buttons to enable/disable VIZIO TV VIZIO TV Remote Remotes. When enabled (On), you can use a VIZIO TV remote control to turn on the sound VZtvRmt bar (using the TV Volume Up button) and control volume.
-
Page 16: Using Button Combinations
Note: This will erase all settings and preferences that you have set. Enabled Enable/disable the use of a VIZIO TV remote control to power on and adjust the volume of VIZIO TV Remote the sound bar. To enable/disable this function, Press and hold the Power (... -
Page 17: Programming The Sound Bar
Programming the Sound Bar You can program your sound bar to accept TV remote IR commands. • Press the SETUP button on the remote, then use the Up/Down buttons to navigate to Prg Remote. • Use the Next/Previous buttons to toggle through Learn Vol -, Learn Vol +, and Learn Mute. Function LED Behavior Description... -
Page 18: Bluetooth Pairing
Press and hold the Bluetooth button on the sound bar or remote for five (5) seconds. Search for the sound bar (VIZIO M21d) using your Bluetooth device. For more information, refer to the user documentation that came with the device. -
Page 19: Using Bluetooth Mode
Using Bluetooth Mode Your sound bar supports music streaming from devices with Bluetooth capability. (Device compatibility will vary, see your device’s documentation for more information.) Once you have paired your source device to the sound bar your device should remain paired. (within range) If the source is changed back to Bluetooth, any paired Bluetooth device will reconnect automatically. -
Page 20: Connecting To A Voice Assistant
Connecting to a Voice Assistant Your sound bar can connect to a Voice Assistant (VA) device through an AUX VA or Bluetooth connection. Once connected, your sound bar will now act as the VA speaker. Features and Benefits: • Voice Assistant Dedicated Input: VA can be active on the sound bar even if the sound bar is set to a different input with audio playing. - Page 21 Using Bluetooth to Connect Press and hold the Bluetooth button on the sound bar or remote for five (5) seconds. Search for the sound bar (VIZIO M21d) using your VA device app. For more information, refer to the user documentation that came with the device.
-
Page 22: Advanced Setup
Advanced Setup HDMI Digital Optical 3.5mm to RCA USB Thumb Cable Cable Drive Cable Tablet/MP3 Player/Laptop Media Player Game Console Supports .WAV and .MP3 file format playback only. ENG - 22... -
Page 23: Connecting With Hdmi Arc
Connecting with HDMI ARC HDMI (ARC) port on your TV HDMI (ARC) HDMI ARC port location may differ by TV manufacturer. See your TV’s user manual for more information. ENG - 23... - Page 24 Enable System Audio Control from the CEC menu. The following steps are for use with a VIZIO TV, steps may differ by TV manufacturer. See your TV’s user manual for more information. CEC Function naming may differ by TV manufacturer. See your TV’s user manual for more information.
-
Page 25: Wall-Mounting
Wall-mounting Place the included wall mounting template against the wall under your TV. Mark the two bracket holes using a pencil. Install the wall mount brackets to the wall. Be sure your screws are attached to wood studs, drywall anchors (for drywall), or concrete anchors (for brick/concrete walls). Bracket Screw (Not included with sound bar) Suggested screw size: 3.5 mm diameter,... - Page 26 Wall-mounting Wall-Mount Slots Bottom of Sound Bar Note: When wall mounting the sound bar, this arror should point upwards. Hang the sound bar on the wall mount backets then slide down to lock in place. ENG - 26...
-
Page 27: Register Your Product
Why register? Customized Support Get assistance quickly with your information on hand. News and Offers Take advantage of the latest news and special offers from VIZIO. Safety and Satisfaction Stay up-to-date with important product updates and notifications. ENG - 27... -
Page 28: Customer Service
Customer Service SUPPORT.VIZIO.COM Find help with: • New product setup • Replacement remotes • Bluetooth and streaming • Connecting your devices • Technical problems • Product updates and more Phone Text Message Live Chat Available (877) 698-4946 (205) 301-3729 Online Se habla Español •... -
Page 29: Help & Troubleshooting
Help & Troubleshooting • Press the POWER button on the remote control or on the side of your sound bar. There is no power. • Ensure the power cord is securely connected. • Plug a different device into the electrical outlet to verify that the outlet is working correctly. •... -
Page 30: Limited Warranty
VIZIO’s Responsibilities If VIZIO determines that a product is covered by this warranty, VIZIO will (at its option) repair or replace it, or refund the purchase price to you. There will be no charge for parts or labor during the warranty period. Replacement parts may be new or recertified at VIZIO’s option and sole discretion. Replacement parts and VIZIO’s labor are warranted for the remaining portion of the original warranty or for ninety (90) days from warranty service, whichever is longer. - Page 31 If you feel VIZIO has not met its obligations under this warranty, you may attempt to resolve the issue informally with VIZIO. If you are unable to resolve the issue informally and wish to file a formal claim against VIZIO, and if you are a resident of the United States, you must submit your claim to binding arbitration according to the procedures described below, unless an exception applies.
- Page 32 General No employee or agent of VIZIO may modify this warranty. If any term of this warranty, other than the class action waiver, is found to be unenforceable, that term will be severed from this warranty and all other terms will remain in effect. If the class action waiver is found to be unenforceable, then the entire section titled “Binding Arbitration Agreement;...
-
Page 33: Legal & Compliance
Legal & Compliance FCC Class B Radio Interference Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 34 All software is provided subject to software license agreements and you agree that you will be bound by such license agreements in addition to other applicable terms of use. By using the VIZIO products, you agree to the VIZIO Terms of Service and Privacy Policy. The VIZIO Terms of Use and Privacy Policy may be updated from time to time and are available to view at vizio.com/terms and vizio.com/privacy, respectively.
-
Page 35: Specifications
Legal & Compliance Specifications One 1.73" x 2.91” (44 x 74 mm) Full Range Driver + Sound Bar: One 1.41” (36 mm) Tweeter for Each Channel (2 for left, 2 for right) Built-in Subwoover Two 2.79" x 3.58” (71 x 91 mm) Drivers One 3.5mm Stereo Audio One 3.5mm AUX Voice Assistant One Optical (Toslink) - Page 36 Logos are registered trademark owned by Bluetooth SIG,Inc. and any use of such marks by ® VIZIO, Inc. is under license. Other trademarks and trade names are those of their respective owners. For DTS patents, see http:/ /patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, and Digital Surround are registered trademarks and/or trademarks of DTS, Inc.
