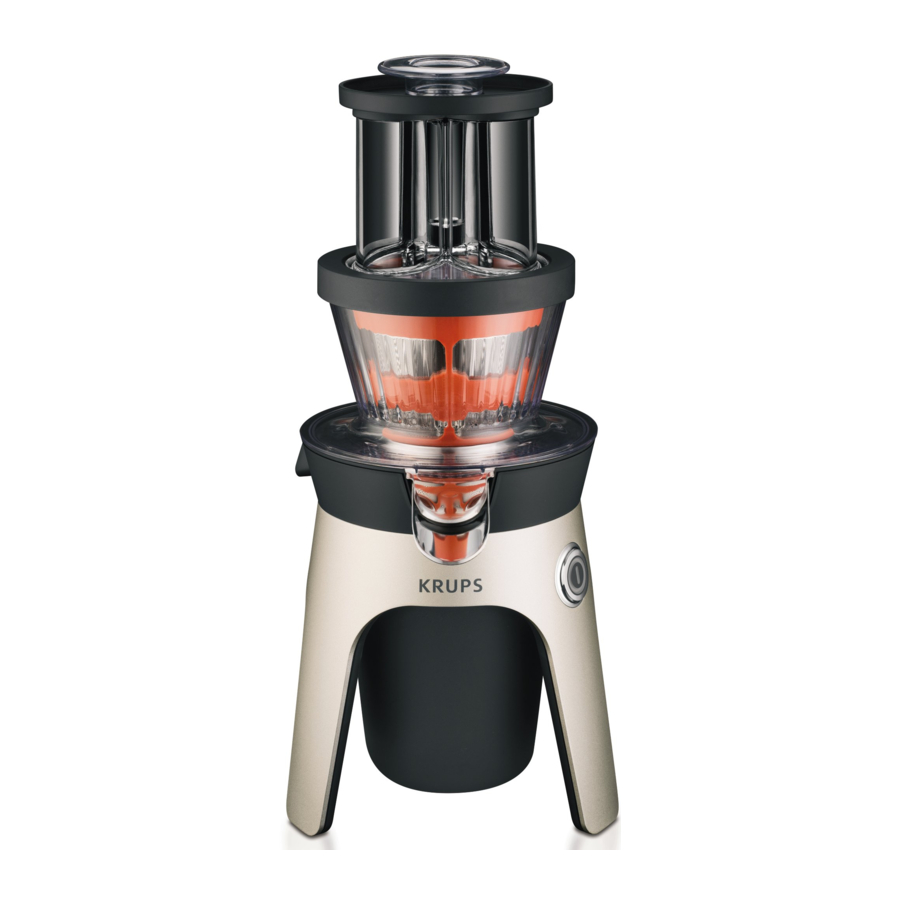

KRUPS INFINYPRESS ZB500E - Slow Juicer Manual

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should be followed including the following:

1. Read all instructions.
2. To protect against risk of electrical shock do not put unit in water or other liquid.
3. Close supervision is necessary when unit is used by or near children.
4. Unplug from outlet when not in use, before putting on or taking off parts and before cleaning.
5. Avoid contact with moving parts.
6. Never feed food by hand. Always use food pusher.
7. Do not operate appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
8. Always make sure juicer cover is correctly locked in place before motor is turned on.
9.
   The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
10. Make sure the motor stops completely and the power supply plug is removed from outlet before disassembling.
11. Do not put your fingers or other objects into the juicer opening while it is in operation. If food becomes lodged in opening, use food pusher or another piece of fruit or vegetable to push it down. When this method is not possible turn the motor off, unplug it and disassemble juicer to remove remaining food.
12. Ensure unit is completely assembled before use.
13. Do not use outdoors. This appliance is for household use only. Do not use this appliance for anything other than its intended use.
14. Do not let cord hang over edge of table or counter or bench or touch hot surfaces, including the stove.
15. Switch off the appliance before changing accessories or approaching parts which move in use.
16. Do not leave the juicer unattended when in use.
17. Always ensure the juicer is turned off. Then switch the appliance off and unplug the cord. Make sure the pressing screw has stopped before opening, when the juicer is not in use, and before disassembling, cleaning and storing.
18. Do not operate the appliance continuously for more than 20 minutes. Please let cool down a few minutes.
19. Be careful when handling the stainless steel filter basket. The small cutting blades are very sharp. Handle very carefully. Mishandling may cause injury.

SAVE THESE INSTRUCTIONS

Polarization Plug
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electrical shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.

DESCRIPTION

1. Pusher
2. 3 part feed tube
3. Pressing screw
4. Juice filter
5. Coulis filter
6. Residue strap (not separable from the filter)
7. Bowl
8. Juice collector
9. Spout with drip-stop system
10. Juice exit
11. Residue exit
12. Motor unit
13. Start/Stop button
14. Jugs (one to collect residue and one to collect juice)
15. Foam separator
16. Cleaning brush

BEFORE FIRST USE

• Unpack the appliance and place it on a horizontal, solid and stable work-top, then take it apart completely. Make sure that you have removed all packaging before you start using the appliance.
• Wash all the removable parts, rinse them out and dry them carefully: the pusher (A), the feed tube (B), the pressing screw (C), the filters (D and E), the residue strap (F), the bowl (G), the juice collector and the spout with drip-stop (H and I), and the jugs (N).

USING THE APPLIANCE

• Assemble the appliance as indicated on the drawings and choose the filter according to the desired preparation:
  Juice filter (D – orange colour) with small holes to make juices.
  Coulis filter (E – raspberry colour) with wider holes to make thicker preparations, like coulis.


• During the assembly, make sure that the residue strap is correctly positioned on the filter.


USE

• Before use, wash all pre-treated food products carefully.
• Prepare the full amount of ingredients to be pressed. Most fruit and vegetables do not require peeling or deseeding. Peel only those with thick skin (citrus fruits, bananas, pineapple, melon, passion fruit...).
  Remove the stones (in peaches, apricots, mangoes...) and the hard cores of pineapples.
• Cut up fruit and vegetables that are too large to fit through the feed tubes.
• Never put fruit stones, excessively hard foods (ice cubes, sugar cubes), extremely fibrous foods, or meat into your juicer.
• Place one jug (N) under the spout (I) and the other jug (N) under the residue exit (K ) to collect the pulp. Remember to empty the jug under the residue exit when it is full.


• Press the Start/Stop button (M) to turn on the appliance, place the food in the feed tubes (B) and push them down using the pusher (A). Make sure that the spout (I) is in the "low" position (juice flow).


• The fruit and vegetables must only be inserted while the motor is running.
• Never use your fingers or other utensils to push food through the spout.
• Do not press too hard on the pusher (A).
• Once the ingredients have passed through, let the appliance turn for a few more seconds in order to obtain the maximum amount of juice.
• We recommend that you do not use the appliance continuously for over 20 minutes.
• After making your juice, activate the drip-stop system by pushing the spout up before removing the jug to stop the flow of the juice.
• If the juice contains froth, you can fit the foam separator accessory (O), onto the jug (N) which allows you to keep the froth inside the jug when you pour out the juice into a glass.



Practical tips when choosing ingredients:

• Choose fruit and vegetables that are best for juicing such as oranges, apples, pears, pineapple, grapes, tomatoes, carrots, celery, cucumber, beetroot.
• It is difficult to extract juice from some fruits and vegetables such as bananas, avocados, auberginesand figs.
• When you press less juicy fruit (like bananas) and aromatic herbs, alternate with other juicy fruitsor vegetables in order to facilitate extraction. Always finish with juicy fruit or vegetables.
• When you use fibrous vegetable with other ingredients, press them at the end and if you press fibrous vegetable alone, clean the screw regularly because fibers can block the screw.

• When you press long leaf herbs (such as wheatgrass), cut the leaves in 1 inch pieces in order to keep them from getting tangled around the pressing screw. Press a maximum of 14 oz of herbs at a time.
• Out of season, you can use frozen fruit. Let them thaw completely before pressing. You can alsouse fruit with syrup (lychees, peaches...).

CLEANING

Between 2 preparations

• Rinse the appliance without taking it apart by pouring water gradually into the feed funnel (B), with the appliance on. Make sure that you have placed an empty jug (N) under the juice exit. You can then make one juice immediately after the other! After use
• Cleaning must be carried out immediately after use.
• Make sure that the appliance is disconnected.
• Never immerse the motor unit (L), power cord or plug in water or any other liquid.
• Do not put the motor unit (L) in the dishwasher.
• Take apart and clean all the removable parts: filters (D-E) (if necessary, use the brush (P)), residue strap (F ) (inseparable from the filter but removable for cleaning purposes; if necessary, use the back end of the brush (P)), bowl (G), juice collector (H) with spout with drip-stop (I).

• Make sure to clean the inside of the screw (C ) carefully; if necessary, use the brush (P).
• Clean the residue exit (K ) with a lightly moist and non-abrasive sponge.
• The pusher (A), the feed tube (B), the bowl (G), the screw (C ), the juice collector (H) with the spout with drip-stop (I), the jugs (N), and the foam separator (O) can all go into the dishwasher. If the filters (D/E) are clogged, prewash them with warm water and washing up liquid and use the brush (P). If the filter residue exit is clogged, remove the residues using the back end of the brush (P).
• Do not clean the juice collector (H), the spout with drip-stop (I), the plastic parts (bowl (G), food pusher (A), feed tube (B)) with the abrasive side of the sponge.

Tips: To extract the screw (C) from the filter (D/E), turn both pieces together and then press on the screw.

WHAT TO DO IF YOUR APPLIANCE DOES NOT WORK

DISPOSING OF YOUR APPLIANCE

Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point or at an approved service centre.

MANUFACTURER'S WARRANTY

: www.krups.com
With a strong commitment to the environment, most of K rups products are repairable during and after the warranty period. B efore returning any defective products to the point of purchase, please call K rups consumer service directly at the phone number below for repair options. Your help to sustain the environment is appreciated!

This product is guaranteed by Krups for a period of 2 years against any manufacturing defect in materials or workmanship, starting from the initial date of purchase.
The manufacturer's warranty by Krups is an extra benefit which does not affect consumer's Statutory Rights.
The Krups warranty covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labor. At Krups's choice, a replacement product may be provided instead of repairing a defective product. Krups's sole obligation and your exclusive resolution under this warranty are limited to such repair or replacement.

The Krups warranty only applies within US A, Canada & Mexico, and is valid only on presentation of a proof of purchase. The product can be taken directly in person to an authorized service centre or must be adequately
