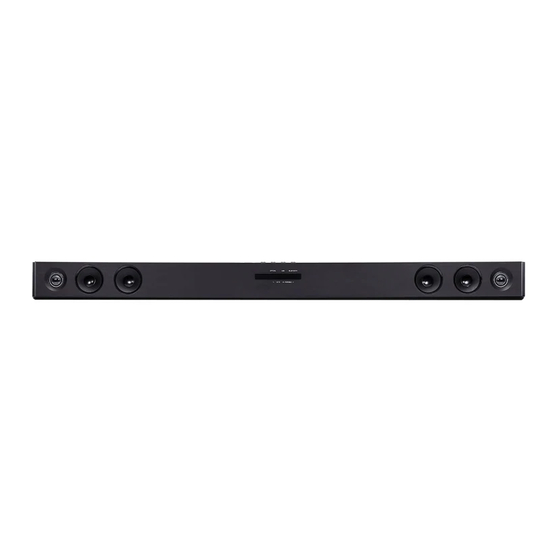

- Page 1 OWNER’S MANUAL Sound Bar Please read this manual carefully before operating your set and retain it for future reference. MODEL SK1D www.lg.com Copyright © 2018-2019 LG Electronics Inc. All Rights Reserved. 1904_Rev02...
- Page 2 Getting Started Safety Information WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled RISK OF ELECTRIC SHOCK DO NOT OPEN with liquids, such as vases, should be placed on the apparatus.
- Page 3 Getting Started CAUTION concerning the Power Cord This device is equipped with a portable battery or accumulator. The Power Plug is the disconnecting device. In case of an emergency, the Power Plug must remain readily How to Safely remove the batteries or the accessible.
- Page 4 Getting Started Symbols Refers to alternating current (AC). Refers to direct current (DC). Refers to class II equipment. Refers to stand-by. Refers to “ON” (power). Refers to dangerous voltage.
-
Page 5: Table Of Contents
– BLUETOOTH connection lock (BT lock) Connecting to your TV Using BLUETOOTH App – Using an OPTICAL cable – Install “Music Flow Bluetooth” App onto – LG Sound Sync Your BLUETOOTH Device Optional equipment connection – Activate Bluetooth with “Music Flow – OPTICAL IN connection Bluetooth”... -
Page 6: Getting Started
Indicates cautions for preventing possible damages from abuse. LG Sound Sync Controls volume level of this unit by the remote control of your LG TV that is compatible with LG Sound Sync. BLUETOOTH® Listens to music stored on your Bluetooth device. -
Page 7: Remote Control
Getting Started Remote control • • • • • • • • • • • • • • a • • • • • • • • • • • • • 1 (Power) : Switches the unit ON or OFF F (Function): Selects the function and the input source. -
Page 8: Front Panel
Getting Started Front panel D E F A 1/! (Standby/On) D Standby LED It lights up in red on standby mode. B F (Function) Selects the function and input source. E Remote sensor C p/o (Volume) F Function LED Adjusts volume level. G Speakers Rear panel A PORT.IN : Connect to a Portable device. -
Page 9: About Led Condition
: LED is off. Condition Description OPTICAL LED turns on. OPTICAL function is selected. OPTICAL LED blinks twice and LG Sound Sync (Optical) function is turns on. selected. USB LED turns on. USB function is selected. USB LED blinks. Paused USB playback. - Page 10 Press and hold AUTO POWER ON on the Bluetooth device only on remote control for about 2 seconds in (Page 21) Bluetooth and LG TV functions. Bluetooth function. Initial setting of this function The standby LED blinks once. was set to off.
-
Page 11: Installing The Sound Bar
Getting Started Installing the sound bar You can hear the sound by connecting the unit to the other device : TV, Blu-ray disc player, DVD player, etc. Place the unit in front of the TV and connect it to the device you want. -
Page 12: Connecting
OPTICAL OUT jack on the TV using an It is compatible with an LG TV that supports OPTICAL cable. LG Sound Sync. Make sure of the LG Sound Sync logo on your TV. Controllable function by LG TV's remote control :... - Page 13 LG Sound Sync with wired connection LG Sound Sync with wireless connection 1. Connect your LG TV to the unit by using an optical cable. 1. Turn on the unit by pressing 1 on the remote control or 1/! on the unit.
-
Page 14: Optional Equipment Connection
Connecting Optional equipment PORT. IN connection connection OPTICAL IN connection Connect an optical output jack of external devices to Portable the OPTICAL IN jack. cable Optical MP3 player, etc... cable To the digital optical output jack of external device Listening to music from your portable 1. -
Page 15: Usb Connection
Connecting USB connection USB device requirement Connect USB memory device to the USB port on the y Devices which require additional program back of the unit. installation connected to a computer, are not supported. y Do not extract the USB device while in operation. y For a large capacity USB, it may take longer than a few minutes to be searched. -
Page 16: Playable File
Connecting Note Playable file y Folders and files on the USB are recognized Sampling Frequency as below. MP3 : within 32 to 48 kHz : Folder WMA : within 32 to 48 kHz : File Bitrate MP3 : within 80 to 320 kbps WMA : within 56 to 128 kbps y Maximum files : Under 999 y Maximum directories : Under 99... -
Page 17: Operating
Depending on the remote control, this function may not work well. This unit memorizes a current Resume song which is played before y This function does not operate on LG TV's playback changing the function or magic remote control. turning off the unit. -
Page 18: Drc (Dynamic Range Control)
AUTO POWER On/Off This unit automatically turns on by an input source : Optical, LG TV or Bluetooth. When you turn on your TV or an external device connected to this unit, this unit recognizes the input signal and select the suitable function. -
Page 19: Auto Function Change
When LG TV signal comes in When you turn on your LG TV connected by LG Sound Sync (Wireless connection), this unit changes the function to LG TV. You can hear the sound from your TV. When 3.5 mm stereo cable is connected When you connect your portable device using a 3.5... -
Page 20: Using Bluetooth® Technology
Bluetooth device display y Available Devices : Smart phone, MP3 player, depending on the type of Bluetooth device. Notebook, etc.. Your unit appears as “LG SK1D (XX)” . y Version : 4.0 Note y Codec : SBC y XX means the last two digits of Bluetooth address. -
Page 21: Bluetooth Connection Lock (Bt Lock)
You can limit Bluetooth connection to only the Bluetooth device as close as possible and Bluetooth and LG TV function to prevent unintended keep the distance. Bluetooth connection. However it may not work well in the cases... -
Page 22: Using Bluetooth App
Operating Using BLUETOOTH App Install “Music Flow Bluetooth” App through “Google Android Market (Google Play Store)” Note 1. Tap the “Google Android Market (Google Play y Only Android OS is available to use “Music Store)” icon. Flow Bluetooth” app with this unit. 2. - Page 23 Operating Note y “Music Flow Bluetooth” app will be available in the software version as follow; - Android O/S : Ver 4.0.3 (or later) y If you use “Music Flow Bluetooth” app for operation, there would be some differences between “Music Flow Bluetooth” app and the supplied remote control.
-
Page 24: Sound Adjustment
Operating Sound adjustment Night mode This function is useful when you want to watch movies at low volume late at night. Set Night mode to On to reduce the sound intensity and improve Setting the surround mode fineness and softness. This system has a number of pre-set surround sound Press NIGHT ON/OFF button to turn on or off night fields. -
Page 25: Troubleshooting
Depending on the connected device, this function may not operate. y Check whether your LG TV supports LG Sound Sync. LG Sound Sync does y Check connection of LG Sound Sync (Optical or wireless). not work. -
Page 26: Notes To Use Wireless
Troubleshooting PROBLEM CAUSE & CORRECTION Check the details below and adjust the unit according to them. y Switch [ON] state of DRC function to [OFF] by using remote controller. y Change Audio DRC setting on connected device setup menu to [OFF] state. When you feel the y With the sound bar connected with TV, change the AUDIO DIGITAL OUT setting on output sound of the... -
Page 27: Appendix
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by LG Electronics is under license. Other trademarks and trade names are those of Manufactured under license from Dolby their respective owners. -
Page 28: Specifications
Appendix Specifications General Power requirements Refer to main label. Refer to main label. Power consumption Networked standby : 0.5 W (If all network ports are activated.) Dimensions (W x H x D) Approx. 950 mm x 71 mm x 47 mm Operating temperature 5 °C to 35 °C Operating humidity... -
Page 29: Maintenance
Appendix Maintenance Handling the unit When shipping the unit Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory. Keeping the exterior surfaces clean y Do not use volatile liquids such as insecticide spray near the unit.
