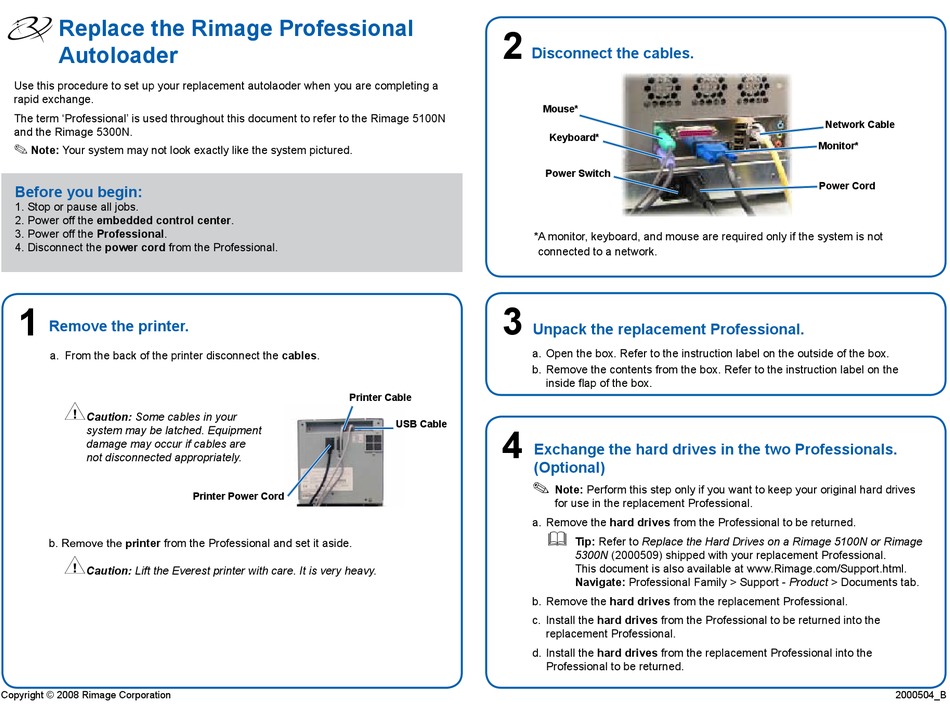

Replace the Rimage Professional
Autoloader
Use this procedure to set up your replacement autolaoder when you are completing a
rapid exchange.
The term 'Professional' is used throughout this document to refer to the Rimage 5100N
and the Rimage 5300N.
✎
Note: Your system may not look exactly like the system pictured.

Before you begin:

1. Stop or pause all jobs.
2. Power off the embedded control center.
3. Power off the Professional.
4. Disconnect the power cord from the Professional.
1
Remove the printer.
a. From the back of the printer disconnect the cables.

Caution: Some cables in your
system may be latched. Equipment
damage may occur if cables are
not disconnected appropriately.
b. Remove the printer from the Professional and set it aside.

Caution: Lift the Everest printer with care. It is very heavy.
Copyright © 2008 Rimage Corporation
Printer Cable
Printer Power Cord
2
Disconnect the cables.
Mouse*
Keyboard*
Power Switch
*A monitor, keyboard, and mouse are required only if the system is not
connected to a network.
3
Unpack the replacement Professional.
a. Open the box. Refer to the instruction label on the outside of the box.
b. Remove the contents from the box. Refer to the instruction label on the
inside flap of the box.
USB Cable
4
Exchange the hard drives in the two Professionals.
(Optional)

Note:
for use in the replacement Professional.
a. Remove the hard drives from the Professional to be returned.
Tip: Refer to Replace the Hard Drives on a Rimage 5100N or Rimage
5300N (2000509) shipped with your replacement Professional.
This document is also available at www.Rimage.com/Support.html.
Navigate: Professional Family > Support - Product > Documents tab.
b. Remove the hard drives from the replacement Professional.
c. Install the hard drives from the Professional to be returned into the
replacement Professional.
d. Install the hard drives from the replacement Professional into the
Professional to be returned.
Perform this step only if you want to keep your original hard drives
Network Cable
Monitor*
Power Cord
