Ricoh Aficio CL3000 Options Manual

Ricoh cl3000: setup guide
Hide thumbs Also See for Aficio CL3000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Maintenance Manual, Installation Manual
Option Setup Guide
For safety, please read this manual carefully before you use this product and keep it handy
for future reference.

Advertisement

Table of Contents
loading

Related Manuals for Ricoh Aficio CL3000

Summary of Contents for Ricoh Aficio CL3000

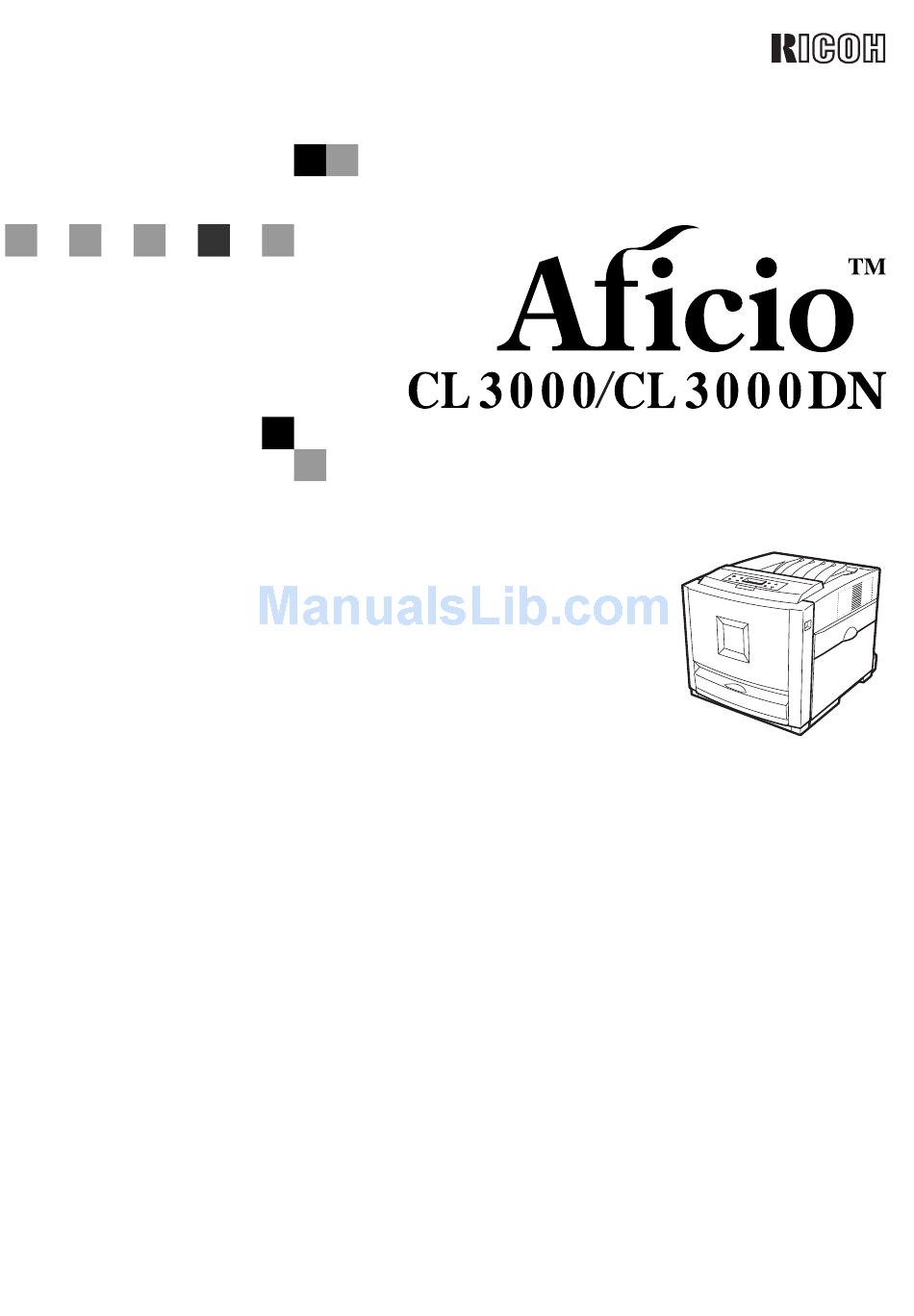

  • Page 1 Option Setup Guide For safety, please read this manual carefully before you use this product and keep it handy for future reference.
  • Page 2 Use of controls or adjustment or performance of procedures other than those specified in this manual might result in hazardous radiation exposure. Do not attempt any maintenance or troubleshooting other than that mentioned in this manual. This printer contains a laser beam generator and direct exposure to laser beams can cause permanent eye damage. Notes: Some illustrations in this manual might be slightly different from the machine.

  • Page 3: Table Of Contents

    AD440 (Duplex Unit) ... 11 Memory Unit Type C (SDRAM Module) ... 13 Printer Hard Disk Type 3000 ... 16 Formatting the Printer Hard Disk drive ... 18 1394 Interface Unit Type 4510... 19 Connecting the cable to the 1394 Interface Unit ... 22 IEEE 1394 Configuration...

  • Page 5: How To Read This Manual

    How to Read This Manual Symbols In this manual, the following symbols are used: R WARNING: This symbol indicates a potentially hazardous situation which, if instructions are not followed, could result in death or serious injury. R CAUTION: This symbol indicates a potentially hazardous situation which, if instructions are not followed, may result in minor or moderate injury or damage to property.

  • Page 7: Options

    • When lifting the machine, use the grips on both sides. The machine could break or cause an injury if dropped. By installing options, you can improve the printer performance and have an ex- panded variety of features to use. For the specifications of each option, see the Administrator Reference.
  • Page 8 Board (Network Interface Board Type 3000) Attach the Paper Feed Unit to the bottom of the printer. You can attach up to two Paper Feed Units. Install the unit to the back of the front cover. Install the module to the SDRAM module slot on the con- troller board.
  • Page 9 Install the User Account Enhance Unit. (User Account Enhance Unit Type B) Install options in the positions as shown in the illustration. ❖ ❖ ❖ ❖ Exterior AD440 (Duplex Unit) Install to the back of the front cover. Makes duplex prints. See p.11 “AD440 (Duplex Unit)”.
  • Page 10 Options ❖ ❖ ❖ ❖ Basic model Printer : Interior Printer Hard Disk Type 3000 Install Printer Hard Disk to the con- troller board. See p.16 “Printer Hard Disk Type 3000”. User Account Enhance Unit Type See p.38 “User Account Enhance Unit Type B”.
  • Page 11 ❖ ❖ ❖ ❖ Network standard model Printer : Interior Printer Hard Disk Type 3000 Install Printer Hard Disk to the con- troller board. See p.16 “Printer Hard Disk Type 3000”. User Account Enhance Unit Type See p.38 “User Account Enhance Unit Type B”.

  • Page 12: Paper Feed Unit Type 3000

    Paper Feed Unit first. Up to two Paper Feed Units can be attached to the printer. When in- stalling two Paper Feed Units, con- n e c t t h e t w o u n i t s f i r s t b y...
  • Page 13 Align the printer to the two up- right pins on the Paper Feed Unit and then lower it slowly. Note ZHBYA930E ❒ Be sure not to place the printer on the Paper Feed Unit cable. ZHBYA950E I I I I Open the connector cover of the printer.
  • Page 14 Options J J J J Connect the Paper Feed Unit ca- ble to the socket inside the printer securely. K K K K Close the connector cover of the printer. To connect two Paper Feed Units, connect the paper feed unit cable...

  • Page 15: Ad440 (Duplex Unit)

    AD440 (Duplex Unit) R CAUTION: • The inside of the machine be- comes very hot. Do not touch the parts with a "v" label (means hot surface). Touching a part with a "v" label (means hot sur- face) could result in a burn. A A A A Turn off the power, and then un- plug the power cable.
  • Page 16 Reference See "Making Printer Settings with the Control Panel" in the Administrator Reference for printing the configuration page. Important ❒ Before using the Duplex Unit, you must make settings in the printer driver.

  • Page 17: Memory Unit Type C (Sdram Module)

    Turn off the power, and then un- plug the power cable. B B B B Remove the two screws that fas- ten the controller board on the back of the printer. The removed screws will be used in step to fasten the controller board.
  • Page 18 64 MB 64 MB 128 MB 192 MB 320 MB 384 MB ❒ The printer may not work prop- G G G G Fasten the controller board to the printer with the two screws that you removed in step ZHBP110E...
  • Page 19 Reference For printing the configuration page, see "Making Printer Set- tings with the Control Panel" in the Administrator Reference. Important ❒ Before using the new Memory Unit, you must make settings in the printer driver.

  • Page 20: Printer Hard Disk Type 3000

    Disk to physical shocks. A A A A Check the contents of the package for the following: ❖ ❖ ❖ ❖ Printer Hard Disk Type 3000 ❖ ❖ ❖ ❖ Screw B B B B Turn off the power, and then un- plug the power cable.
  • Page 21 " L i st / T e s t P ri n t " menu. If it is installed properly, you will see "Printer Hard Disk Drive" for "Controller Option". ❒ If the Printer Hard Disk is not installed properly, reinstall it from step stall it properly even after at-...

  • Page 22: Formatting The Printer Hard Disk Drive

    See "Making Printer Settings with the Control Panel" in the Administrator Reference for printing the configuration page. Important ❒ Before using the new Printer Hard Disk, you must make the settings in the printer driver. Formatting the Printer Hard Disk drive...

  • Page 23: 1394 Interface Unit Type 4510

    It may cause a machine malfunc- tion or a burn. Important ❒ Printing using "1394/Scsi Printer" (Windows 2000) device and "IEEE 1394 and SCSI printers" (Windows XP) with the optional 1394 Inter- face Unit is possible under Win- do ws 2000 and Window s XP.
  • Page 24 Options C C C C Remove the two screws that fas- ten the controller board on the back of the printer. The removed screws will be used in step to fasten the controller board. D D D D While holding the handle, pull out the controller board slowly.
  • Page 25 Important ❒ The printer may not work prop- erly if the controller board is not set correctly. 1394 Interface Unit Type 4510 I I I I...

  • Page 26: Connecting The Cable To The 1394 Interface Unit

    ❒ Do not use a cable more than 4.5 meters (14.8 feet) long. IEEE 1394 Configuration Use this procedure to configure the printer for use in the IEEE 1394 envi- ronment. The following table shows the control panel settings and their default values. These items are in- cluded in the "Host Interface"...

  • Page 27: Host Interface

    Note ❒ To get the IP address for the printer, contact your network administrator. A Press { { { { U U U U } } } } or { { { { T T T T } } } } until the fol- ZHBS040E lowing message appears.

  • Page 28: Scsi Print

    Options ❒ If you press { { { { Escape} } } } when the pointer (k) is on the left- most position, the selected IP address is reset. E Repeat steps C C C C and D D D D to enter the IP address.

  • Page 29: 802.11B Interface Unit Type A

    Turn off the power, and then un- plug the power cable. C C C C Remove the two screws that fas- ten the controller board on the back of the printer. The removed screws will be used in step to fasten the controller ZHBP410E board.
  • Page 30 Options D D D D While holding the handle, pull out the controller board slowly. E E E E Remove USB2.0 Interface Unit. Note ❒ The removed screws will be used in step ❒ Lift the end of USB2.0 Interface Unit (A), and then remove it from the controller board (B).
  • Page 31 Important ❒ The printer may not work prop- erly if the controller board is not set properly. 802.11b Interface Unit Type A K K K K...

  • Page 32: Ieee 802.11B (Wireless Lan) Configuration

    Options IEEE 802.11b (Wireless LAN) Configuration Configure the printer for using the IEEE 802.11b (Wireless LAN). The fol- lowing table shows the control panel settings and their default values. These items are included in the "Host Interface" menu. Setting Name Comm.
  • Page 33 G G G G Press { { { { U U U U } } } } or { { { { T T T T } } } } to select the transmission mode. Note ❒ The factory default is “802.11 Ad hoc”.
  • Page 34 Options B Press the { { { { U U U U } } } } or { { { { T T T T } } } } key to se- lect characters, and then press the { { { { Enter #} } } } key. SSID: The pointer (k) moves to the next character position.
  • Page 35 E Continue entering the key. Note ❒ You can enter either 10 or 26 characters. If the key you en- ter is not 10 or 26 characters long, the following message appears. Error: Enter 10 or 26 characters ❒ If you press the { { { { Escape} } } } key, the pointer (k) moves to the previous character position.

  • Page 36: Bluetooth Interface Unit Type A

    Turn off the power, and then un- plug the power cable. C C C C Remove the two screws that fas- ten the controller board on the back of the printer. ZHBP410E The removed screws will be used in step to fasten the controller board.
  • Page 37 D D D D While holding the handle, pull out the controller board slowly. E E E E Remove USB2.0 Interface Unit. Note ❒ The removed screws will be used in step ❒ Lift the end of USB2.0 Interface Unit (A), and then remove it from the controller board (B).
  • Page 38 ZHBPA530E Important ❒ The printer may not work prop- erly if the controller board is not set properly. ZHBPA920E M M M M Fasten the controller board to the...

  • Page 39: Network Interface Board Type 3000

    Network Interface Board Type 3000 C C C C Remove the two screws that fas- ten the controller board on the back of the printer. The removed screws will be used in step to fasten the controller board.
  • Page 40 ZHBP450E top and bottom rails, and then push in slowly until it stops. ❒ When installing other options ZHBPA050E ❒ The printer may not work prop- E E E E ZHBPC060E Note on the controller board, do not close the controller board, but go to the steps for installing the option.

  • Page 41: Connecting The Network Interface Cable To The Network

    One of them must be attached close to the end of the cable (on the end closet to the printer). The other must be at- tached approximately 45 cm (18") (A) apart from the end. Attach each ferrite core with a loop.

  • Page 42: User Account Enhance Unit Type B

    Turn off the power, and then un- plug the power cable. C C C C Remove the two screws that fas- ten the controller board on the back of the printer. The removed screws will be used in step to fasten the controller board.
  • Page 43 ZHBP130E option. Important ❒ The printer may not work prop- erly if the controller board is not ZHBP140E set properly. ZHBP150E ZHBP070E...
  • Page 44 Options H H H H Fasten the controller board to the printer with the two screws that you removed in step Note ❒ After finishing installation, you can check whether the User Ac- count Enhance Unit is installed properly. Print the configura- tion page from the "List/Test...

  • Page 45: Index

    Network Interface Board Type 3000 , 35 Options , 3 PAPER FEED UNIT Type 3000 , 5 , 8 Printer Hard Disk Type 3000 , 6 , 7 , 16 User Account Enhance Unit Type B , 6 , 7 , 38...
  • Page 46 MEMO G081...
  • Page 47 Copyright © 2002...
  • Page 48 65760 Eschborn Phone: +49-(0)6196-9060 France RICOH FRANCE S.A. 383, Avenue du Général de Gaulle BP 307-92143 Clamart Cedex Phone: +33-(0)-821-01-74-26 Model number: Aficio CL3000, CL3000DN Printed in The Netherlands G081-6530 Spain RICOH ESPAÑA S.A. Avda. Litoral Mar, 12-14, 08005 Barcelona...
