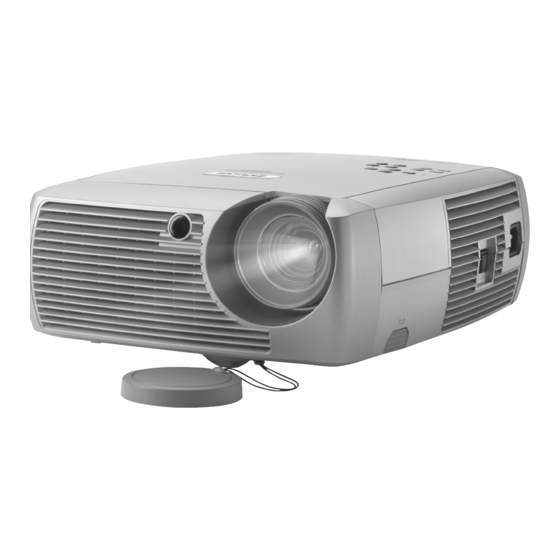

InFocus SP4805 Quick Start Manual

Video Quick Set Up
Connect Component cable
Component
Cable
Connect Component cable from DVD,
VCR, TV and satellite tuners, camcorders,
or video game consoles to Video In.
Component cable may be used for
progressive and HDTV sources.
Connect power cable
Adjust zoom and focus
See manual for detailed information and troubleshooting
Please read the Safety Card before setting up the projector
All manuals and user guides at all-guides.com
OR
Connect S-video cable
S-video
Connect S-video cable from DVD, VCR, TV
and satellite tuners, camcorders, or video
game consoles to S-video. S-video should
not be used for progressive and HDTV
sources.
Remove lens cap
Adjust keystone
OR
Connect M1 cable
M1 Cable
Connect the M1 computer cable from
High Definition (HD) sources to
Computer In. HD sources include HDTV,
EDTV, and Progressive devices.
Power on projector
Power on video source
OR
Connect Composite cable
Composite
Cable
Connect Composite cable from DVD,
VCR, TV and satellite tuners, camcorders,
or video game consoles to Video In.
Composite cable should not be used for
progressive and HDTV sources.
Adjust height
Project from source
