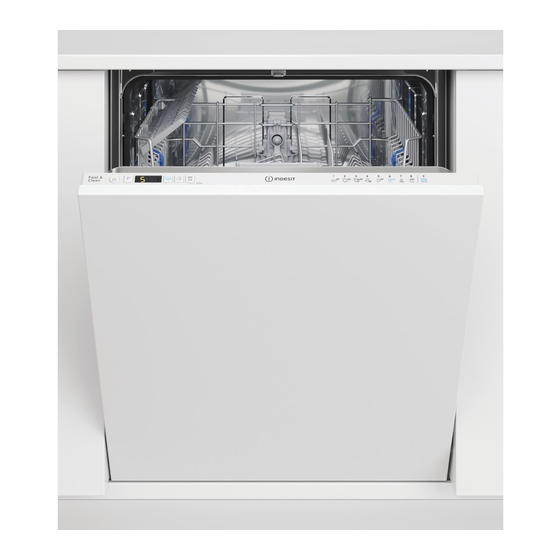

Indesit D2I HD526 UK Quick Manual

Quick Guide
THANK YOU FOR BUYING AN INDESIT PRODUCT.
In order to receive a more complete assistance, please register
your appliance on: www.indesit.com/register
Before using the appliance carefully read Safety Instructions
guide.
CONTROL PANEL
1. On-Off/Reset button with indicator light
2. Program selection button
3. Salt refill indicator light
4. Rinse Aid refill indicator light
5. Program number and delay time indicator
6. Tablet (Tab) indicator light
7. Display
8. Push&GO button
FIRST TIME USE
FILLING THE SALT RESERVOIR
The use of salt prevents the formation of LIMESCALE on the dishes and on
the machine's functional components.
• It is mandatory that THE SALT RESERVOIR NEVER BE EMPTY.
• It is important to set the water hardness.
The salt reservoir is located in the lower part of the dishwasher
(see PRODUCT DESCRIPTION) and must be filled when the SALT REFILL
indicator light
in the control panel is lit.
1. Remove the lower rack and unscrew the reservoir cap
(anticlockwise).
2. Only the first time you do this: fill the salt reservoir
with water.
3. Position the funnel (see figure) and fill the salt reservo-
ir right up to its edge (approximately 1 kg); it is not
unusual for a little water to leak out.
4. Remove the funnel and wipe any salt residue away from the opening.
Make sure the cap is screwed on tightly, so that no detergent can get into
the container during the wash program (this could damage the water so-
ftener beyond repair).
Whenever you need to add salt, it is mandatory to complete the
procedure before the beginning of the washing cycle to avoid corrosion.
FILLING THE RINSE AID DISPENSER
Rinse aid makes dish DRYING easier. The rinse
aid dispenser A should be filled when the
RINSE AID REFILL indicator light
D
control panel is lit.
C
NEVER pour the rinse aid directly into the
appliance tub.
A
PROGRAMS TABLE
Program
Eco 50°- Eco program is suitable to clean normally soiled tableware,
that for this use, it is the most efficient program in terms of its com-
1.
bined energy and water consumption, and that it is used to assess
compliance with the EU Ecodesign legislation.
Intensive 65° - Program recommended for heavily soiled crocke-
2.
ry, especially suitable for pans and saucepans (not to be used for
delicate items).
Mixed 55° - Mixed soil. For normally soiled dishes with dried food re-
3.
sidues.
Fast&Clean 28' 50°
4.
iled dishes with no dried food residues. Does not have drying phase.
-
Night 50°
Suitable for night-time operation of the appliance.
5.
Ensures optimal cleaning and drying performance with the lowest
noise emission.
Extra Hygiene 65°- Normally or heavily soiled crockery, with additional
6.
antibacterial wash. Can be used to perform maintenance of the dishwa-
sher.
Prewash - Use to refresh crockery planned to be washed later. No
7.
detergent to be used with this program.
Self Clean 65°- Program to be used to perform maintenance of the
8.
dishwasher, to be carried out only when the dishwasher is EMPTY
using specific detergents designed for dishwasher maintenance.
Push&GO 50° - Everyday wash and dry cycle that ensures great cleaning
9.
performance in a short time without the need to pre-treat dishes.
9.
10. START/Pause button with indicator light/ Tablet (Tab)
Programs description
-
Program to be used for half load of lightly-so-
PLEASE SCAN THE QR CODE ON YOUR
APPLIANCE IN ORDER TO HAVE MORE
DETAILED INFORMATION
1 2 3 4 5 6 7
Delay button
FILLING THE DETERGENT DISPENSER
To open the detergent dispenser use the opening device C. Introduce the
detergent into the dry dispenser D only. Place the amount of detergent for
pre-washing directly inside the tub.
The detergent dispenser automatically opens up at the right time
according to the program.
If all-in-one detergents are used, we recommend using the TABLET button,
because it adjusts the program so that the best washing and drying results
are always achieved.
Usage of detergent not designed for dishwashers may cause malfunc-
tion or damage to the appliance.
WATER SOFTENING SYSTEM
Water softener automatically reduces water hardness, consequently pre-
venting scale buildup on heater, contributing also to better cleaning efficiency.
This system regenerates itself with salt, therefore it is required to refill
salt container when empty.
Frequency of regeneration depends on water hardness level setting - regen-
eration takes place once per 6 Eco cycles with water hardness level set to 3.
Regeneration process starts in final rinse and finishes in drying phase, be-
fore cycle ends.
• Single regeneration consumes: ~3.5L of water;
• Takes up to 5 additional minutes for the cycle;
• Consumes below 0.005kWh of energy.
in the
Available
options
-
-
-
8 9 10
Duration
Water
of wash
consumption
program
*)
(litres/cycle)
(h:min)
**)
3:35 9.5
2:40 18.0
2:15 16.0
0:28 9.0
3:35 16.6
2:00 12.0
0:12 4.7
0:50 10.0
1:30 11.5
EN
Energy
consumption
(kWh/cycle)
0.95
1.60
1.40
0.50
1.30
1.50
0.01
0.80
1.30
1
