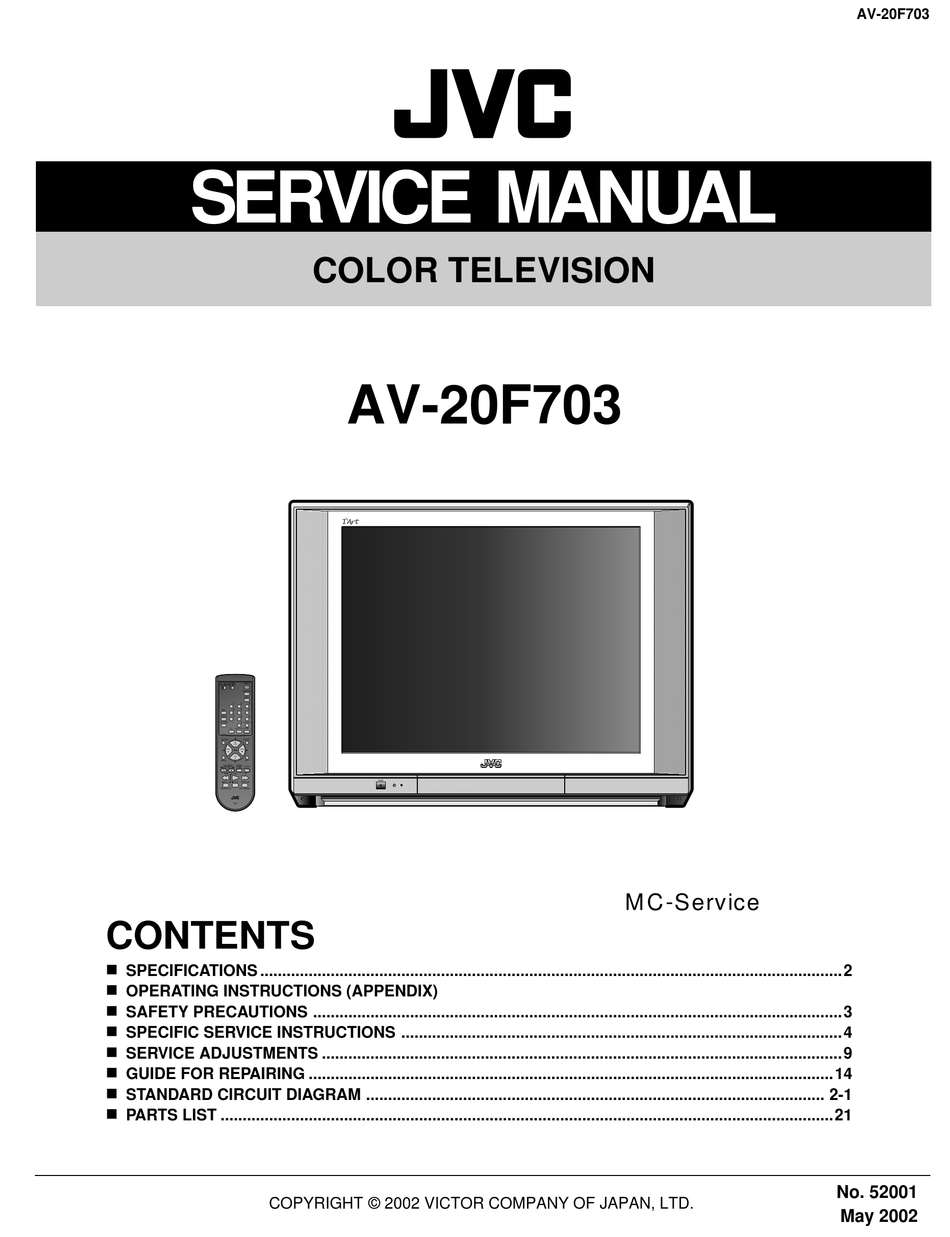

SERVICE MANUAL
TV CATV
VCR DVD
POWER
STANDARD
INPUT
1
2
3
4
5
6
BBE
DISPLAY
7
8
9
SLEEP TIMER
0
RETURN
C.C.
LIGHT
AUDIO SELECT
RM-C309G
MUTING
ENTER
CH
VOL
VOL
CH
MENU
EXIT
– VCR CHANNEL +
VCR/DVD
TV/VCR
PREV NEXT
POWER
REW
PLAY
FF
REC
STOP
PAUSE
OPEN/CLOSE
STILL/PAUSE
TV
CONTENTS
a
SPECIFICATIONS ....................................................................................................................................2
a
OPERATING INSTRUCTIONS (APPENDIX)
a
SAFETY PRECAUTIONS ........................................................................................................................3
a
SPECIFIC SERVICE INSTRUCTIONS ....................................................................................................4
a
SERVICE ADJUSTMENTS ......................................................................................................................9
a
GUIDE FOR REPAIRING .......................................................................................................................14
a
STANDARD CIRCUIT DIAGRAM ........................................................................................................ 2-1
a
PARTS LIST ...........................................................................................................................................21
COPYRIGHT © 2002 VICTOR COMPANY OF JAPAN, LTD.
COLOR TELEVISION
AV-20F703
POWER
MC-Service
AV-20F703
No. 52001
May 2002
