Important Notes To The Installer; Important Safety Instructions; Electrical Requirements - IKEA HACKSTAD Manual

Model and Serial Number Location

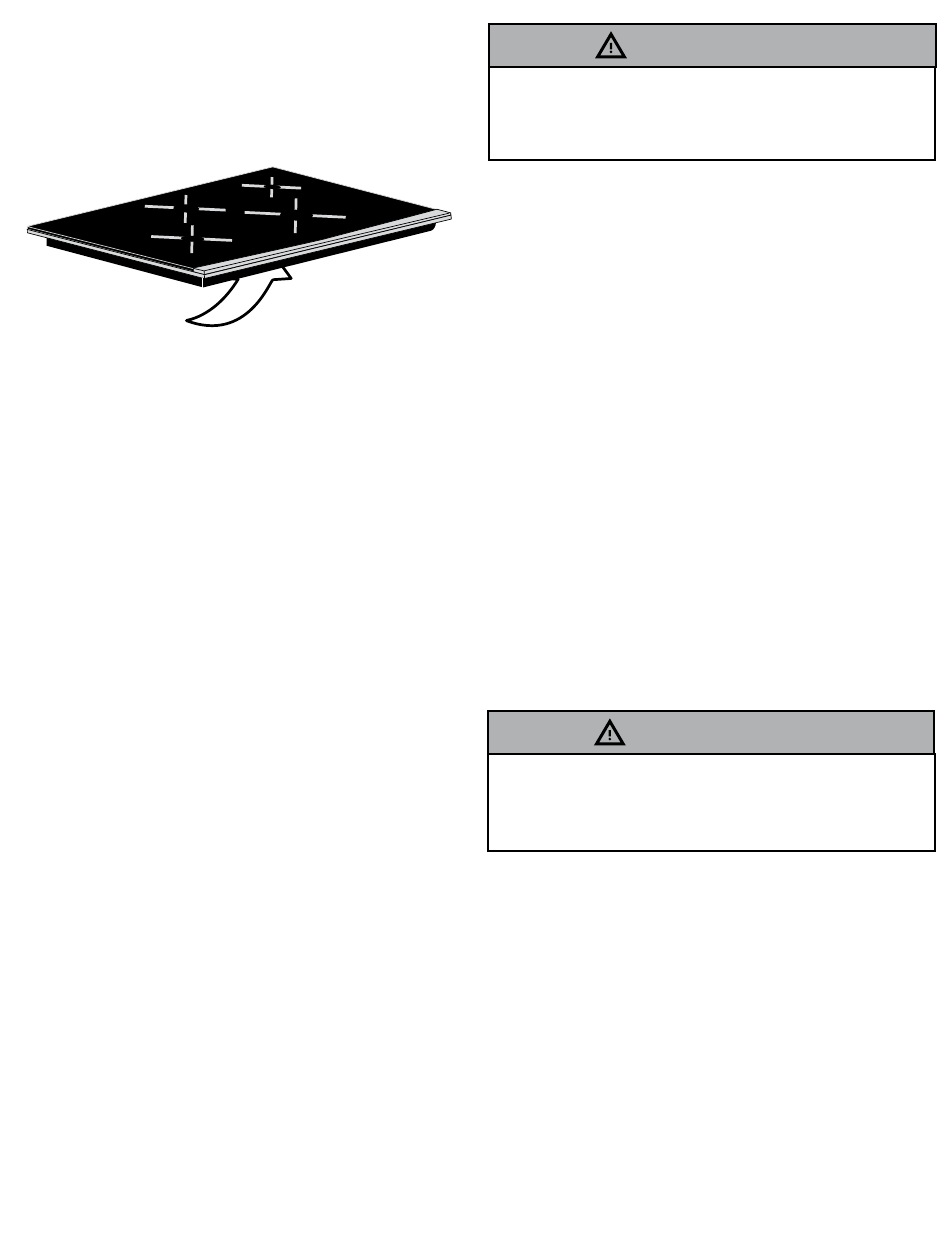

The rating plate is located under the cooktop.
When ordering parts for or making inquires about
your cooktop, always be sure to include the model
and serial numbers and a lot number or letter from
the rating plate on your cooktop.
Rating plate is
located under
the burner box of
cooktop.

Important Notes to the Installer

1. Read all instructions contained in these installa-
tion instructions before installing the cooktop.
2. Remove all packing material before connecting
the electrical supply to the cooktop.
3. Observe all governing codes and ordinances.
4. Be sure to leave these instructions with the con-
sumer.
5. Only certain cooktop models may be installed
over certain built-in electric oven models. Ap-
proved cooktops and built-in ovens are listed by
the MFG ID number and product code.
6. All materials used in construction of cabinets,
enclosures, and supports surrounding the prod-
uct must have a temperature rating above
194°F(90°C).
Important Note to the Consumer
Keep these instructions with your Use and Care
Guide for future reference.
IMPORTANT SAFETY
INSTRUCTIONS
• Be sure your cooktop is installed and
grounded properly by a qualified installer
or service technician.
• This cooktop must be electrically grounded
in accordance with local codes or, in their
absence, with the National Electrical Code
ANSI/NFPA No. 70—latest edition in the
United States.
6
WARNING!
The electrical power to the cooktop must
be shut off while line connections are
being made. Failure to do so could result
in serious injury or death.
Provide Electrical Connection
Install the junction box under the cabinet and run
120/240 or 120/208 Volt, AC wire from the main
circuit panel.
NOTE: DO NOT connect the wire to the circuit panel
at this time.

Electrical Requirements

Observe all governing codes and local
ordinances.
1. A 3-wire or 4-wire single phase 120/240 or
120/208 Volt, 60 Hz AC only electrical sup-
ply is required on a separate circuit fused on
both sides of the line (time-delay fuse or circuit
breaker is recommended). DO NOT fuse neutral.
2. A circuit breaker or fuse rated at 40 Amp is
required for 36" models and 30 Amp for the 30"
model.
NOTE: Wire sizes and connections must conform
with the fuse size and rating of the appliance in
accordance with the National Electrical Code ANSI/
NFPA No. 70–latest edition and local codes and
ordinances.
WARNING!
An extension cord must not be used with
this appliance. Such use may result in a
fire, electrical shock, or other personal
injury.
3. The appliance should be connected to the fused
disconnect (or circuit breaker) box through
flexible armored or nonmetallic sheathed cable.
The flexible armored cable extending from this
appliance should be connected directly to the
grounded junction box. The junction box should
be located as shown in Figure 2 with as much
slack as possible remaining in the cable between
the box and the appliance, so it can be moved if
servicing is ever necessary.
4. A suitable strain relief must be provided to at-
tach the flexible armored cable to the junction
box.
AA-2328606-1
