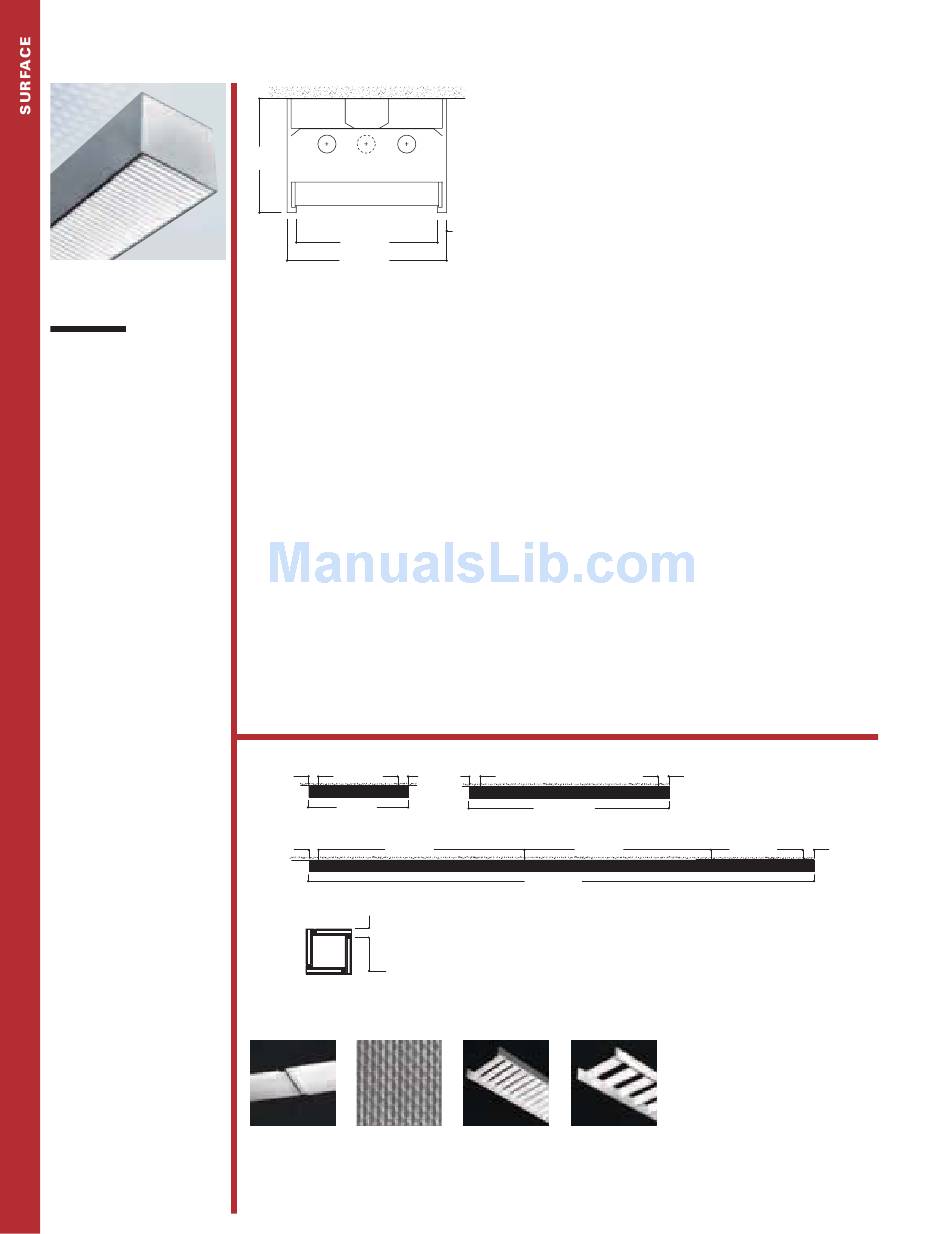

Cooper Lighting New-Ray 44-DS Specification Sheet

NEO-RAY ™
GEO
44-DS
D I R E C T
• Direct light distribution.
• The light is continuous and
unbroken.
• Die formed steel housing,
nominal illuminated sections
3', 4', 6' and 8'.
• Runs provided to the nearest
foot.
• Patterns are formed by
butting standard sections.
• Selection of diffuser options.
• Rigid 'U' shaped trim is
double formed with 3/8"
regress soft lit edge.
• Housings may be special
ordered custom finished.
776
COOPER LIGHTING
6-1/4"
[159mm]
7-3/4" [197mm]
8-3/4" [223mm]
Construction
20-gauge steel housing. Nominal 3', 4', 6' or 8'
illuminated sections.
End Caps
20-gauge steel construction.
Shielding
White bold baffle louver. White acrylic diffuser.
Prismatic acrylic lens. Parabolic baffle.
Electrical
120, 277, 347 or Universal Voltage electronic ballast.
Fixtures and electrical components certified to UL
and CUL standards.
Finish
Durable, low gloss, white, powder coated acrylic
finish.
Mounting
Surface.
M O U N T I N G I N F O R M AT I O N
5 [127mm] 5 [127mm]
36 " & 48 "
[914mm] & [1219mm]
5 [127mm] 86" [2184mm]
ILLUMINATED PATTERNS ARE PROVIDED
IN 1 FOOT INCREMENTS PLUS 7 1/4" [185mm]
90˚ MITERED CORNER
S H I E L D I N G O P T I O N S
S22 Acrylic Diffuser S58 Acrylic Lens
NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be
modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.
ORDERING INFORMATION:
Sample number: 44DS-2T8-56-2EB-SI-S72
Series
44=Geo
Light Output
D=Direct
Mounting
S=Surface
1/2"
[13mm]
Number of Lamps
1=1 Lamp
Lamp Type
T8 T5
Run Length
Overall Nominal Run Length__ft. (Any combination of 8', 6', 4' and 3'
sections)
1
Voltage
1=120V 2=277V
Ballast
EB=Electronic Ballast (Standard)
Switching
SI=Single Switching
Emergency
EM=Emergency Pack (Consult Factory)
Fusing
GLR GMF
Shielding
S22=White Acrylic Diffuser
S72=White Bold Baffle
S58=KSH-12 Clear Acrylic Prismatic Lens
S79=Semi-specular Aluminum Parabolic Baffle
1 Due to various constraints, some options may not be combined with others.
72 " & 96 "
[1829mm] & [2438mm]
96" [2438mm]
20' [6096mm]
S72 Bold Baffle S79 Parabolic Baffle
(per cross section) (not included)
2=2 Lamps 3=3 Lamps
T5HO
3=347V U=Universal
DB=Dimming Ballast
DU=Dual Switching
5 [127mm]
48" [1219mm]
5 [127mm]
