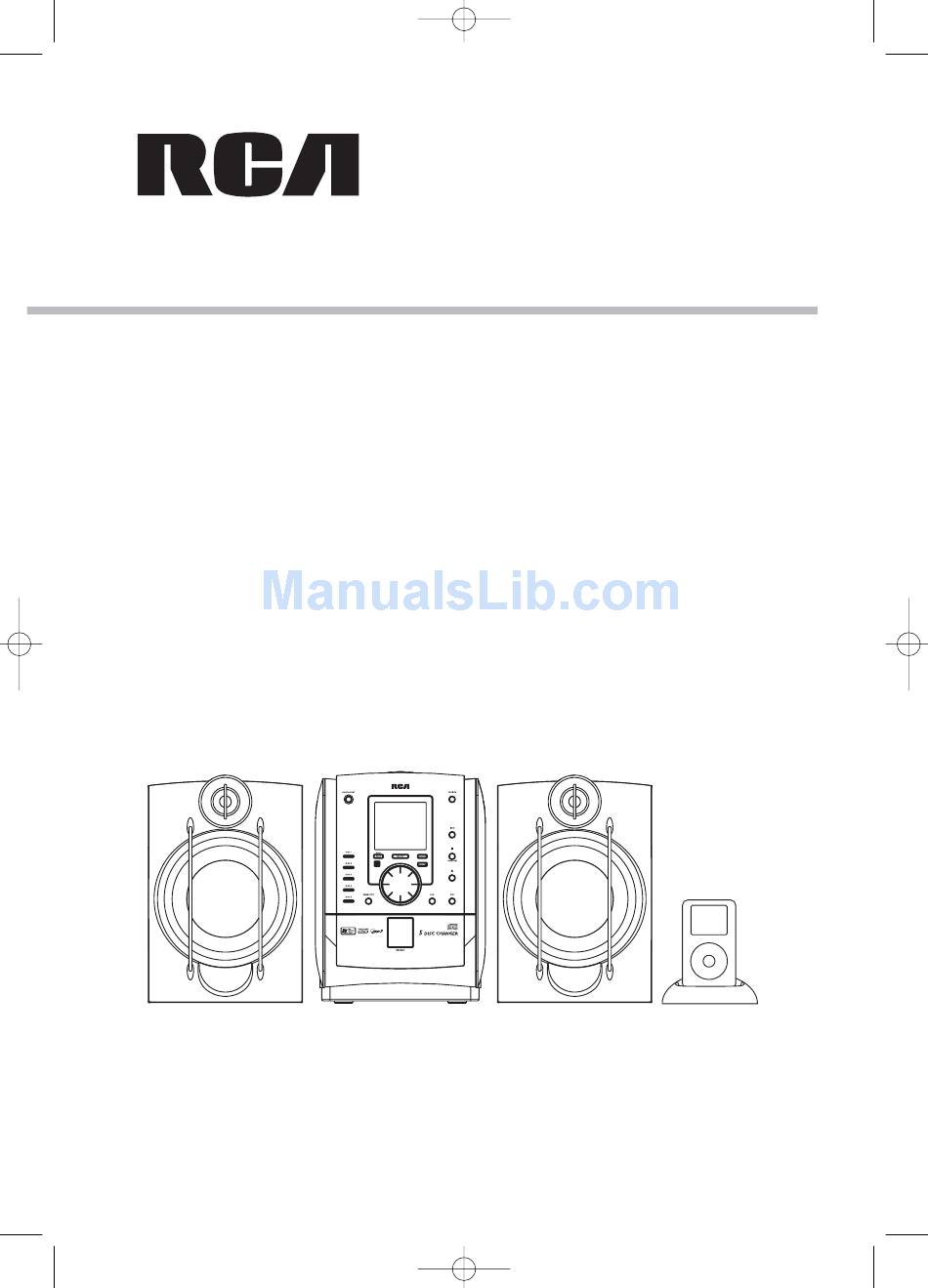

Page 1
RS2060i EN(18_12_06) 18/12/06 It is important to read this instruction book prior to using your new product for the first time. Nous vous recommandons de lire ce manuel d’instructions avant d’utiliser votre nouveau produit pour la première fois. Es importante leer este manual antes de usar por vez primera su euipo.
RS2060i EN 4/10/06 5:48 PM FCC Information FCC Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
RS2060i EN 4/10/06 5:48 PM Important Information Safety Precautions • Never open the cabinet under any circumstances. Any repairs or internal adjustments should be made only by a trained technician. • Never operate this product with the cabinet removed. • Do not use your Unit immediately after...
RS2060i EN 4/10/06 5:48 PM Getting Started Content of Box one main unit one AM loop antenna Connections of Antennas and Speakers 1. AM Loop antenna Jack. 2. AUX IN. 3. FM Pigtail Antenna. 4. Main Speaker Jacks. 5. iPod dock socket.
Page 7
RS2060i EN 4/10/06 5:48 PM Connecting the Speakers Each speaker has a black (negative) and a red (positive) wire. When connecting the speakers, match the red wires to the red jacks and the black wires to the black jacks. Push Speaker terminal tab Release tab to lock wire in down to insert wire.
RS2060i EN 4/10/06 5:48 PM General Controls Main Unit - Front View ON/STANDBY* • Turns power on or off (STANDBY mode). SOURCE • Allows selection of the following modes: CD player, USB, Tuner, AUX and iPod. DISC 1/DISC 2/DISC 3/DISC 4/DISC 5 •...
RS2060i EN 4/10/06 5:48 PM Remote Control ON/STANDBY • Turns the power on or off (STANDBY mode). SOURCE • Selects the CD player, USB, tuner, AUX and iPod. BAND • In Tuner mode, it selects radio band. FM ST • Selects between stereo and mono sound in the FM tuner mode.
RS2060i EN 4/10/06 5:49 PM General Controls Navigation Buttons Use the navigation buttons to navigate through menu. • From stop mode, you can enter Navigation mode. • In navigation mode, you can enter navigates forward. • In navigation mode, you can navigate backwards.
RS2060i EN 4/10/06 5:49 PM Settings Setting the Clock 1. Press and hold CLOCK on the remote control until the hour flashes on the display. 2. Press to set the hour and then press CLOCK to shift to minute digits.
RS2060i EN 4/10/06 Sound Features Volume Control Turn the volume control on the main unit or press on the remote control to adjust volume level. The volume level shows briefly on the display. Bass Boost Press B.BOOST to turn on/off boosting the bass frequency.
RS2060i EN 4/10/06 5:49 PM Selecting a Disc Press DISC 1, DISC 2, DISC 3, DISC 4 or DISC 5 on the main unit or DISC SKIP on the remote control to skip discs. Fast Forwarding/Reversing/Skipping Tracks • Press and hold reverse through a CD while it is playing.
RS2060i EN 4/10/06 5:49 PM USB Playback Connecting USB drive to the Main Unit Insert the USB drive's connector into the main unit’s USB Jack, on top of the unit. To disconnect, unplug the drive. Selecting USB Mode Press SOURCE repeatedly to select USB mode.
RS2060i EN 4/10/06 5:49 PM Using Presets • When in PRESET mode, press access the previous or next preset station. Suppressing Stereo Signal Press FM ST to toggle between FM mono and stereo mode. (Remote Only) “STEREO” is displayed in stereo mode.
RS2060i EN 4/10/06 5:49 PM Recording to the USB drive Record only selected tracks from a CD 1. Create a CD program by following the instructions under “Setting Up a CD Program” on page 14. 2. In CD stop mode, press RECORD. Select Normal/High speed using , then press SELECT.
RS2060i EN 18/12/06 11:32 AM iPod Mode In iPod mode, you can navigate and playback music on your iPod. Connecting your iPod to the Unit • Ensure the iPod dock is connected to the unit as described on page 3.
RS2060i EN(18_12_06) 18/12/06 Advanced Playback Controls In CD and USB mode, advanced playback controls allow you to sample, repeat and random playback files and set up a Program List. In USB mode, it allows you to rename tracks. Sampling Tracks...
RS2060i EN 4/10/06 5:49 PM Renaming Tracks You can rename files in the USB drive. 1. In the USB stop mode, press select folder. 2. Press to select the file in the current folder. 3. Press PROG to enter rename mode.
RS2060i EN 4/10/06 5:49 PM Advanced Navigation Controls Remote Control Display In the navigation mode, the display looks like the following with the highlighted item. -ROOT selected folder Folder A Folder B folder Folder C Page 22 • From stop mode, you can enter Navigation mode.
RS2060i EN 4/10/06 5:49 PM Tips on Playback Sequence of Disc • Check that the mp3/WMA disc is created with a single folder structure. Refer to the diagram below for playback sequence details on multi-level folder structure. • For example, the folders and songs from level 2 are played before moving to play folders and songs from level 3.
RS2060i EN 4/10/06 5:49 PM Troubleshooting Tips Problem Solution Unit will • Check the power cord for a not turn on secure connection. • Unplug the unit for a moment, and then plug into power source again. • Check the outlet by plugging in another device.
RS2060i EN 4/10/06 5:49 PM Maintenance Disconnect the unit from the power source before performing any maintenance. Cleaning Clean the exterior of the unit using a soft dust cloth. CD Player CAUTION! This unit operates with a laser. It must be opened by only a qualified technician.
What we will do: • Pay any Authorized RCA Audio Service Center the labor charges to repair your unit. • Pay any Authorized RCA Audio Service Center for the new or, at our option, refurbished replacement parts required to repair your unit.
How you get service: • Take your unit to any Authorized RCA Audio Service Center. To identify your nearest Authorized RCA Audio Service Center, ask your dealer, look in the Yellow Pages, or call 1-800-336-1900.
