Motorola 2247-N8 Quick Start Manual

Quick Start Guide
2247-N8 DSL W
Important:
• A PPP or PPPoE user name and
password. Some service providers
let you use the email user name and
password from their service.
Follow these simple steps to complete the Quick Start installation.
Unpack
Unpack
Unpack the following items from the box:

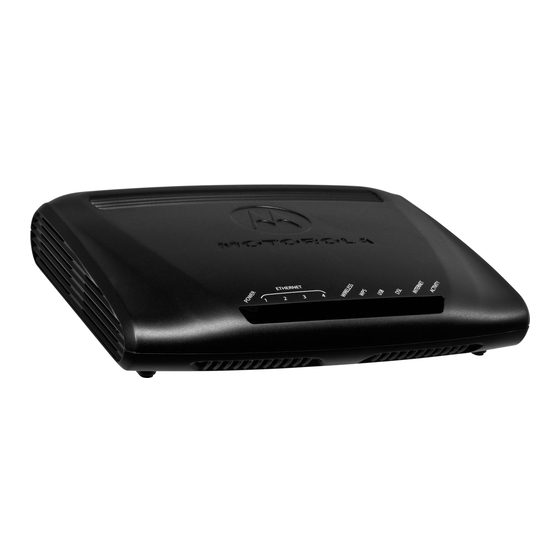

• 2247-N8 WiFi Gateway
• AC power supply
• Telephone (gray) cable
Have a smart phone?
Scan this QR code to go to the
Motorola support web site.
F Gateway
i- i
You must have a DSL connection installed before starting. You will
also need the following from your DSL service provider:
Place
B
efore returning this product to the store for any reason
call Motorola Broadband Technical Support: 1-877-466-8646
Use this Quick Start Guide to install the 2247-N8 DSL Wi-Fi Gateway,
connect to the 2247-N8 with a wireless computer, and connect to
your DSL provider for Internet access.
For full instructions, advanced configuration, or help connecting
non-wireless computers, see the User Guide on the included
CD-ROM or visit www.motorola.com/us/support
• The VPI/VCI numbers used with your DSL service —
in most cases the 2247-N8 will detect this automati-
cally. If not, and you need to enter it, see the User
Guide on the included Documentation CD-ROM.
Connect
• Documentation CD-ROM
• Quick Start Guide
• Ethernet (yellow) cable - for
wired installations only
Place
Put the 2247-N8 in a place that meets the following
requirements:
1
Near AC power and a DSL-
activated phone jack.
Maintains
a cool tem-
perature.
1" minimum clearance
IMPORTANT
If the vents are blocked or the location is too
:
hot, the 2247-N8 could malfunction!
Configure
GO TO
2
GO TO
,
Secure
Place
3
Nothing
blocking
vents.
Connect
