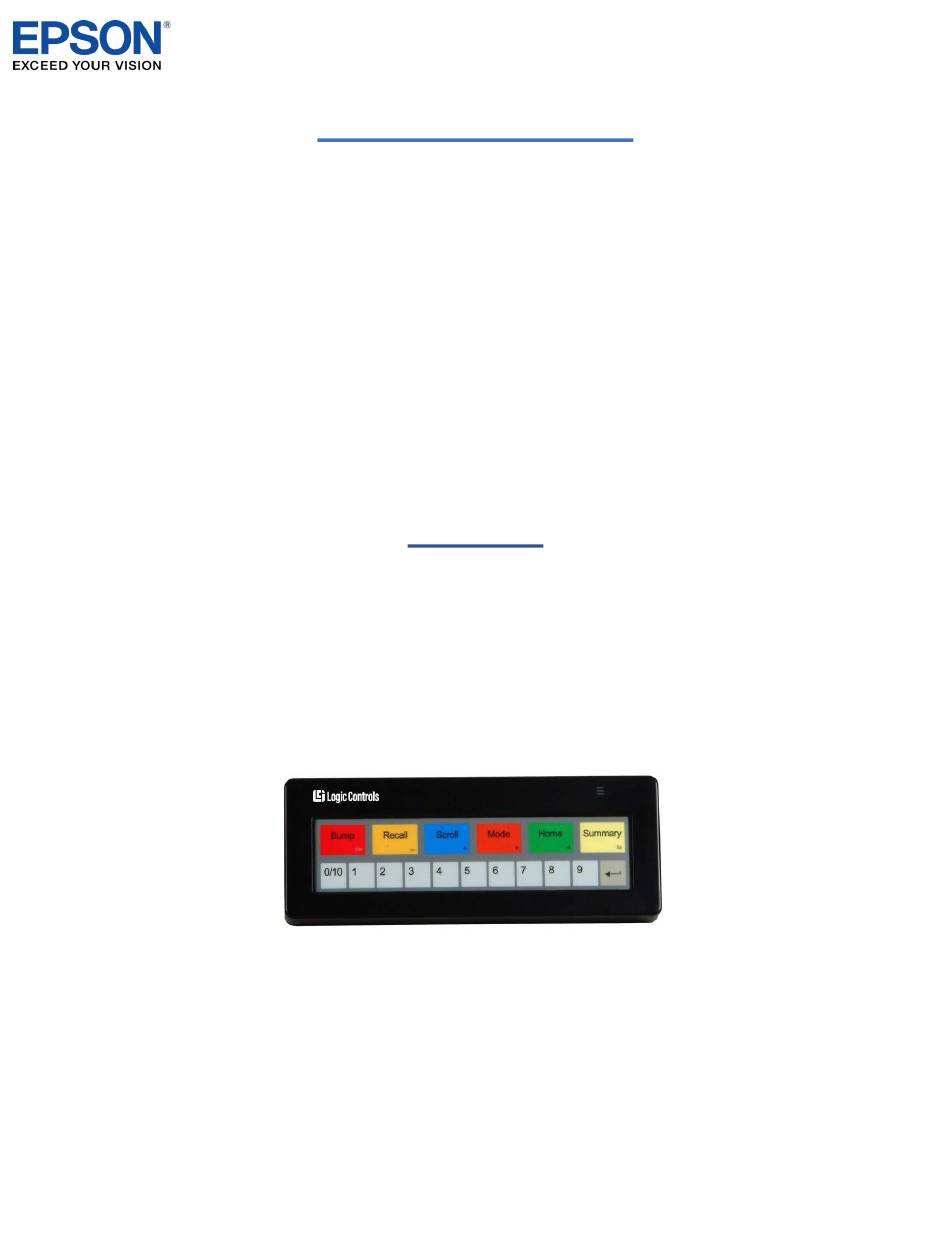

About this Guide
This guide consists of 3 sections:
• Overview – Discusses the supported KB1700.
• Bump bar Functionality - Describes how to use the bump bar with the KDS.
• Appendix A – Key map for the KB1700.
This guide is relevant for:
KDS FW: v2.50 and above
KDS Utility (Windows): v2.5.0.0 and above
The bump bar allows the operator to bump off orders and interact with the KDS screen.
It connects to the KDS printer or controller via USB. Part number for the KB1700 bump
bar supported:
Logic Controls KB1700U-D-BK
This part number is a Black, USB bump bar with Legend sheet D:
Note: The bump bar is programmable so if you have a KB1700 with a different legend
sheet you can consult the appendix for the key mapping. How to program is beyond the
scope of this document.
EPSON is a registered trademark and EPSON Exceed Your Vision is a registered logomark of Seiko Epson Corporation. All other
product and brand names are trademarks and/or registered trademarks of their respective companies. Epson disclaims any and all
rights in these marks. Copyright 2022 Seiko Epson Corporation.
Bump Bar – KB1700
Overview

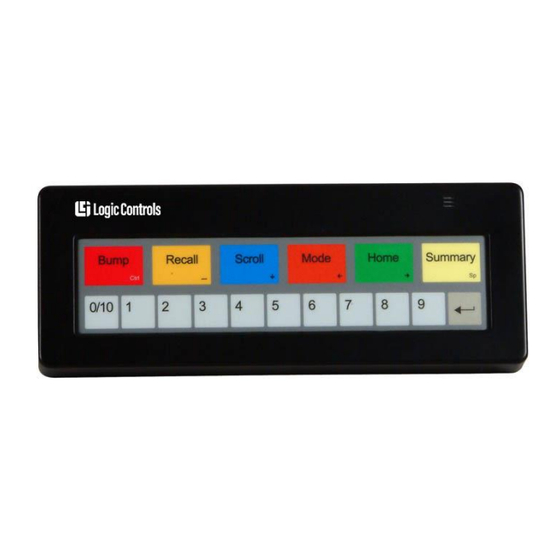

Figure 0.1 – KB1700U-D-BK Bump Bar
