Asus ExpertWiFi EBM68 Quick Start Manual

Quick
Start Guide
ASUS ExpertWiFi EBM68
AX7800 Tri Band WiFi Router
Model: EBM68
Before Setup
Preparing to set up an AiMesh WiFi system
Find two EBM68, and power both on.
1
Use a network cable to connect your optical modem to the WAN port of EBM68 (with a
2
removable plastic strip). This EBM68 will be the AiMesh router, and the other EBM68 will be
the AiMesh node.
The LED turns solid blue to indicate that EBM68 is ready for setup.
3
ASUS ExpertWiFi App
Download free ASUS ExpertWiFi App to set up and
manage your router(s).
AiMesh Setup Steps
01 Prepare
Place your AiMesh router and node in the same room
and at least 1-3 meters apart during the setup process.
02 AiMesh node
Keep your AiMesh node powered on and standby for
AiMesh system settings.
03
Launching ASUS ExpertWiFi App
Launch ASUS ExpertWiFi App, and then follow the on-
screen instructions to finish the AiMesh setup.
Troubleshooting
If your AiMesh router cannot find any AiMesh node nearby or synchronization fails, please check the following and try again.
Move your AiMesh node closer to the AiMesh router ideally. Ensure that it is within 1-3 meters.
a
Your AiMesh node is powered on.
b
Hardware Explanations
Plug the adapter into the DCIN port, and press the power switch.
1
The power LED will light up when your hardware is ready.
2

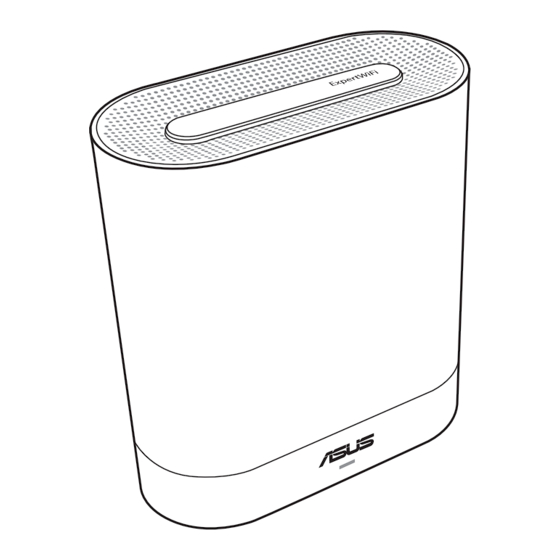

EBM68 Overview
USB 3.2 Gen
Power switch
LAN ports 1-3
1x1
2.5G / 1G WAN port
Specifications:
DC Power adapter DC Output: +12V with max 3A current
Operating Temperature
0~40 o C
Operating Humidity 50~90%
AiMesh node
ASUS ExpertWiFi
1-3 meters
AiMesh node
NOTE:
When you're using a wireless backhaul to connect your router and AiMesh node,
the WAN port on your AiMesh node can be used as a LAN port providing up to 2.5G
transmission speed.
2.5G / 1G WAN port
DCIN port
Connect your optical modem to this
port with a network cable.
LAN ports 1-3
Connect your PC to a LAN port with a
network cable.
Storage 0~70 o C
Storage 20~90%
AiMesh router
AiMesh Setup Steps
https://asus.click/asusexpertwifia https://asus.click/asusexpertwifii
At least
AiMesh router
