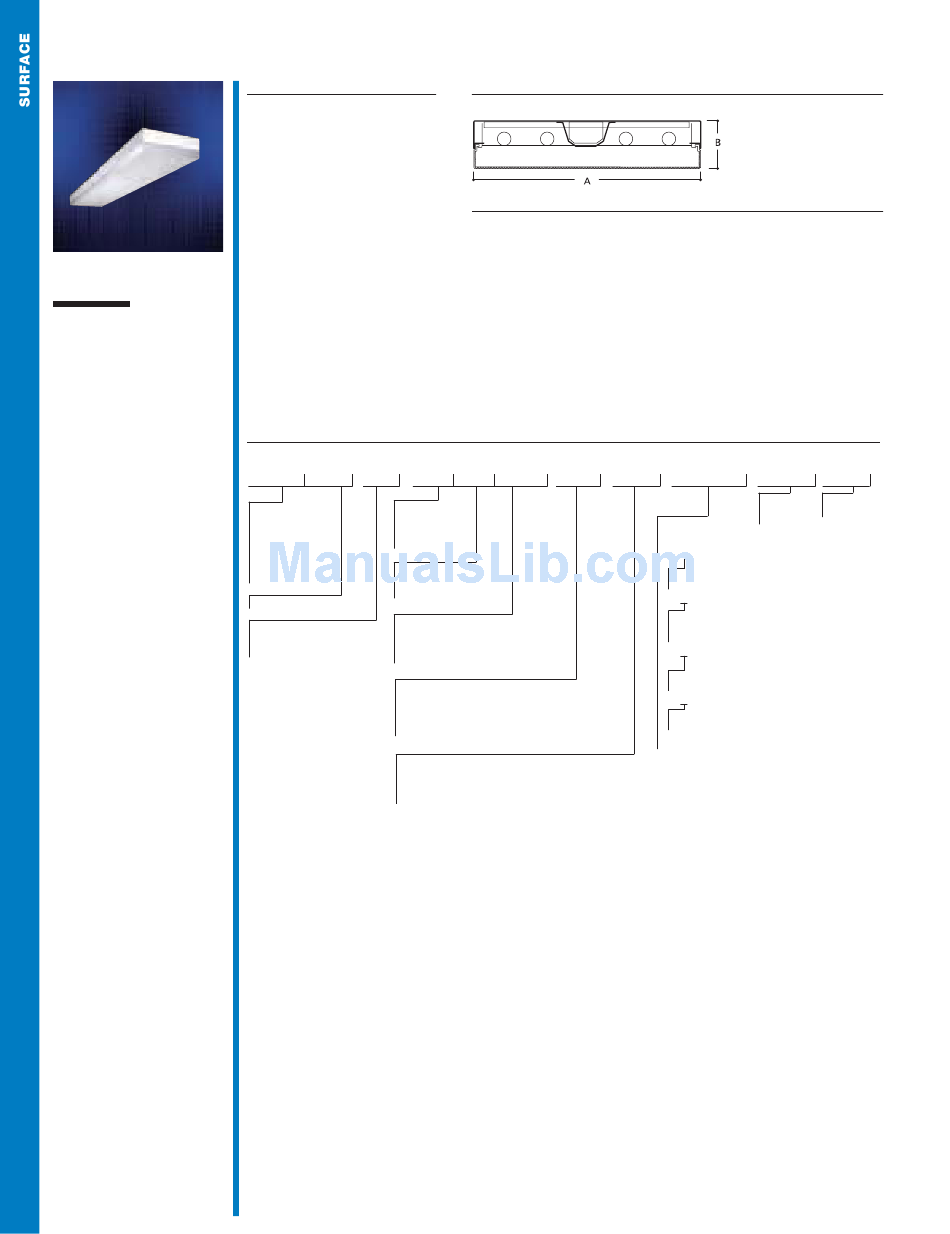

COOPER LIGHTING - METALUX
SA SERIES
4 ' o r 8 ' S u r f a c e
2 , 3 o r 4 L a m p
S U R F A C E M O D U L A R W R A P
• Equipped with energy
saving ballast/complies
with federal energy
efficiency standards
• Architectural preferred
design
• Full seam welded corners
• Low profile flush optical
design
• Full perimeter luminous
sides
• Low brightness/micro base
prisms/good lamp image
obscuration (acrylic lens)
• Low brightness/square
base male conical
prisms/precision light
control (injection molded
acrylic lens)
• Injection molded end
caps/sonically welded
• Mechanical attachment of
lens assembly
• Surface or stem mounting
single or continuous
row
(3) (5) (6)
• Also available in tandem 8'
lengths
(4)
• UL/CUL Listed. Suitable for
damp locations.
418
COOPER LIGHTING
D E S C R I P T I O N
The SA Series combines
architecturally preferred design
features such as low profile
housings and refractor optics into
a contemporarily styled modular
series. This energy efficient
luminaire is available with an
extruded acrylic refractor basket.
The refractor has been designed
to conceal lamp image and
effectively control brightness.
Product design and styling result
in a luminaire for either surface or
pendant mounting. Lighting
aesthetics and performance
required for applications such as
commercial environments,
classrooms, corridors, hospitals
and general office lighting makes
the SA Series the ideal luminaire
choice.
O R D E R I N G I N F O R M AT I O N
S A M P L E N U M B E R : S A - 2 3 2 A - 1 2 0 V - E B 8 1 - U
Number of
Tandem
Lamps
Blank=4' Length
2, 3 or 4 lamps
8T=8' Length
(Not Included)
Housing
Only Uses 4' Door
Frame
Wattage (Length)
(4)
Sections
40=40W T12 (48")
32=32W T8 (48")
SA=Series
Lens
Width
A=Acrylic Refractor Lens
Blank=Standard
IMA=Injection Molded
A=Wide Body for 2 Lamps
Acrylic Lens
Voltage
120V=120 Volt
277V=277 Volt
347V=347 Volt
UNV=Universal Voltage 120-277
Options
GL=Single Element Fuse
GM=Double Element Fuse
Emergency - for EM installed, see EM options table
(1)
NOTES:
Products also available in non-US voltages and frequencies for international markets.
(3)
Stem mounting not available on 3-lamp fixtures.
(6)
4 point suspension required for 4-lamp fixtures. 2 point or 4 point suspension for 2-lamp fixtures (utilizes standard KOs).
For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting
Representative for availability and ordering information.
®
D I M E N S I O N S
NOMINAL LENGTH
4' 2 Lamp (A)
4' 2 Lamp (IMA)
4' 3/4 Lamp (A)
4' 3/4 Lamp (IMA)
(3)
(1)
(2)
(2)
(4)
(5)
8T available in 2-lamp only.
For continuous row mounting 7/8" KOs furnished in end of fixture, specify EKO.
A
B
10-15/16" (278mm)
3-15/16" (84mm)
10-15/16" (278mm)
4-3/8" (111mm)
15-15/16" (405mm)
3-15/16" (84mm)
15-15/16" (405mm)
4-3/8" (84mm)
Options
(See Options
Section)
(1)
Ballast Type
LE3=T12 Magnetic Energy Saving
EB8 = T8 Electronic Instant Start.
Total Harmonic Distortion < 10%
No. of Ballast
1, 2 or 3
EB8 /PLUS= T8 Electronic Instant Start.
High Ballast Factor >1.13. Total
No. of
Harmonic Distortion < 20%
Ballast
1, 2 or 3
ER8 = T8 Electronic Program Rapid Start.
Total Harmonic Distortion < 10%
No. of Ballast
1, 2 or 3
EB2 =T12 Electronic Rapid Start.
No. of Ballast
1 or 2
(For complete details on generic or to specify
manufacturer's ballast see pg. 469)
Not available when specifying emergencies, voltage must be specific.
Packaging
U=Unit Pack
