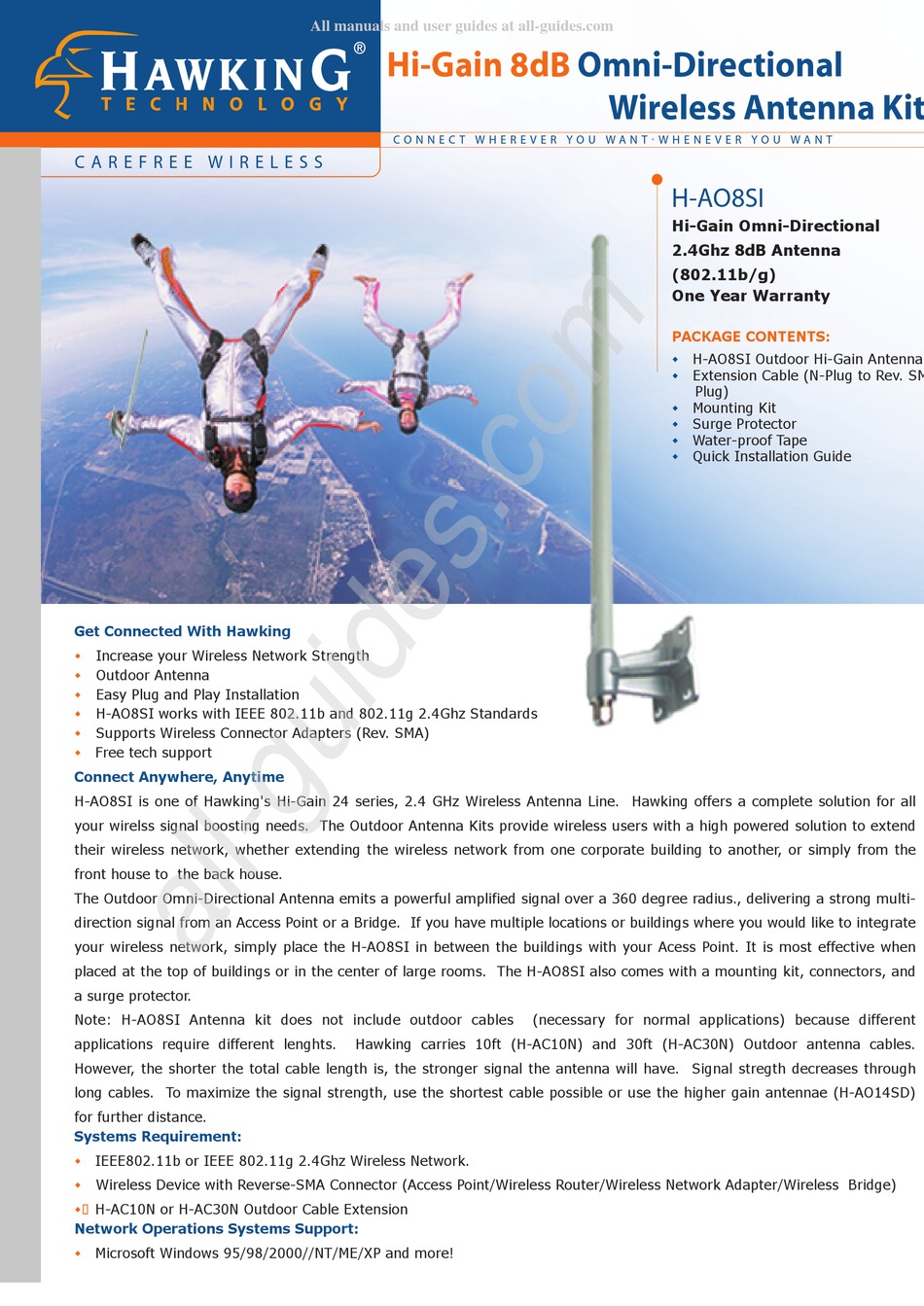

Hawking H-AO8SI Quick Installation Manual

C A R E F R E E W I R E L E S S
Get Connected With Hawking
Increase your Wireless Network Strength
w
Outdoor Antenna
w
Easy Plug and Play Installation
w
H-AO8SI works with IEEE 802.11b and 802.11g 2.4Ghz Standards
w
Supports Wireless Connector Adapters (Rev. SMA)
w
Free tech support
w
Connect Anywhere, Anytime
H-AO8SI is one of Hawking's Hi-Gain 24 series, 2.4 GHz Wireless Antenna Line. Hawking offers a complete solution for all
your wirelss signal boosting needs. The Outdoor Antenna Kits provide wireless users with a high powered solution to extend
their wireless network, whether extending the wireless network from one corporate building to another, or simply from the
front house to the back house.
The Outdoor Omni-Directional Antenna emits a powerful amplified signal over a 360 degree radius., delivering a strong multi-
direction signal from an Access Point or a Bridge. If you have multiple locations or buildings where you would like to integrate
your wireless network, simply place the H-AO8SI in between the buildings with your Acess Point. It is most effective when
placed at the top of buildings or in the center of large rooms. The H-AO8SI also comes with a mounting kit, connectors, and
a surge protector.
Note: H-AO8SI Antenna kit does not include outdoor cables
applications require different lenghts.
However, the shorter the total cable length is, the stronger signal the antenna will have. Signal stregth decreases through
long cables. To maximize the signal strength, use the shortest cable possible or use the higher gain antennae (H-AO14SD)
for further distance.
Systems Requirement:
IEEE802.11b or IEEE 802.11g 2.4Ghz Wireless Network.
w
Wireless Device with Reverse-SMA Connector (Access Point/Wireless Router/Wireless Network Adapter/Wireless Bridge)
w
H-AC10N or H-AC30N Outdoor Cable Extension
w
Network Operations Systems Support:
Microsoft Windows 95/98/2000//NT/ME/XP and more!
w
All manuals and user guides at all-guides.com
Hi-Gain 8dB
C O N N E C T W H E R E V E R Y O U W A N T
Hawking carries 10ft (H-AC10N) and 30ft (H-AC30N) Outdoor antenna cables.
Omni-Directional
Wireless Antenna Kit
• W H E N E V E R Y O U W A N T
H-AO8SI
Hi-Gain Omni-Directional
2.4Ghz 8dB Antenna
(802.11b/g)
One Year Warranty
PACKAGE CONTENTS:
H-AO8SI Outdoor Hi-Gain Antenna
w
Extension Cable (N-Plug to Rev. SM
w
Plug)
Mounting Kit
w
Surge Protector
w
Water-proof Tape
w
Quick Installation Guide
w
(necessary for normal applications) because different
