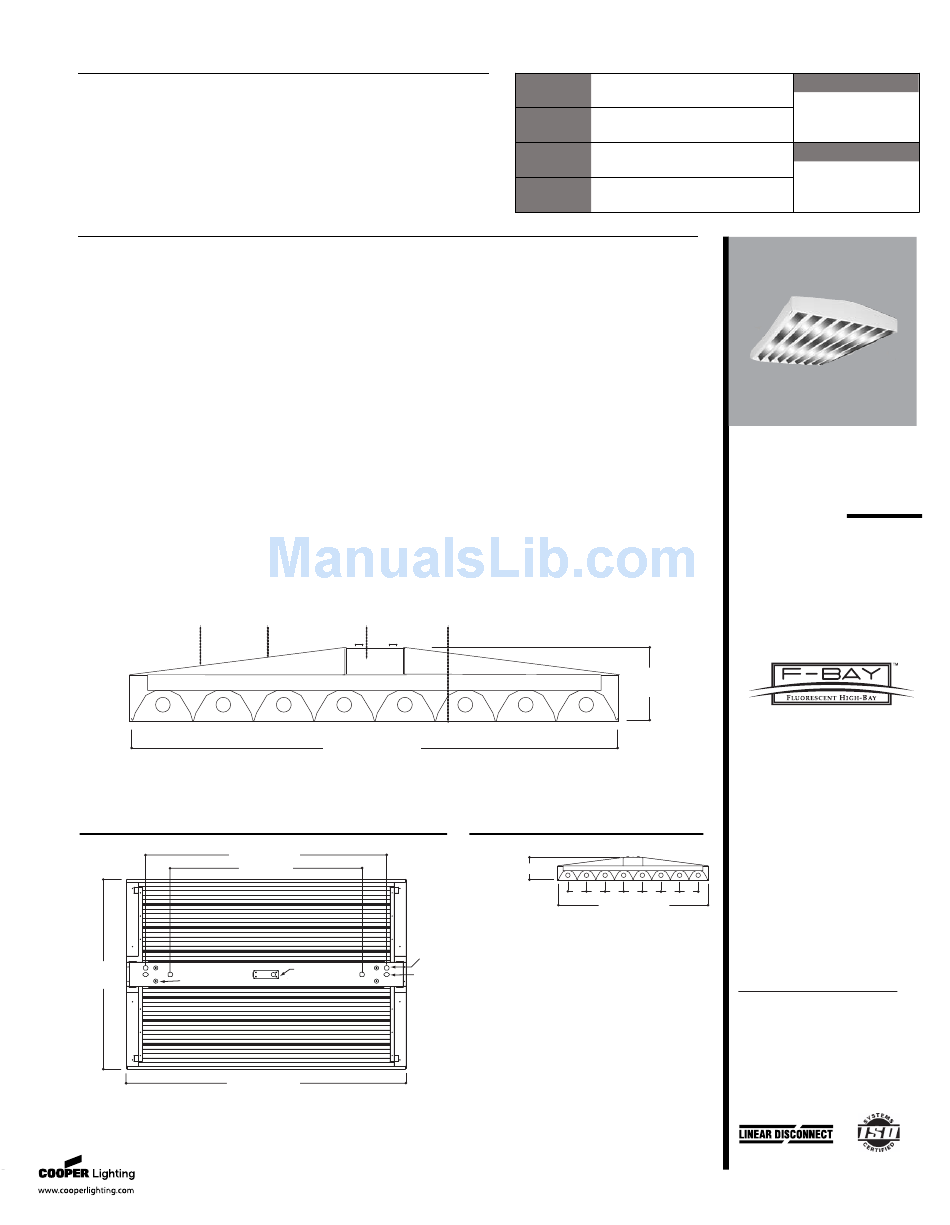

Cooper Lighting Metalux HBOT T8 SERIES Specifications

DESCRIPTION
The HBOT series is an outstanding solution for high mounting height
industrial or retail applications. The HBOT optic has been optimized to
provide maximum performance. Optional uplight component is provided to
enable excellent ceiling uniformity. HBOT's high lumen package allows the
benefits of fluorescent to be applied at high mounting heights that were
traditionally exclusive to H.I.D. The primary benefits include exceptional
color rendering, high system efficacy, 95% lumen maintenance, long lamp
life, instant on/instant re-strike, economical dimming, and uniform
brightness control. Primary applications include retail, shopping malls, light
industrial, and recreational environments.
SPECIFICATION FEATURES
A ... Construction
Specification grade open body
housing, end plates and socket
tracks are die formed 20-gauge
cold rolled steel. The HBOT
channel provides strength and
numerous KOs for easy
installation. Top Ballast Access
Plate. Allows for removal or
service of ballast from above
without removal of lamps. Die
formed external reflectors are
available in both high reflectance
specular material or in painted-
after-fabrication white enamel.
A
DIMENSION TOP VIEW
41-1/2" [1054mm]
8-Lamp
33" [838mm]
32-11/16"
Ceiling Standoff
[830mm]
Embossment
48-1/16" [1221mm]
Specifications and Dimensions subject to change without notice.
COOPER LIGHTING - METALUX
B ... Electrical
Class "P" ballasts are positively
secured by mounting bolts.
Roto-lock lampholders. Optional
modular power receptacle and
cord sets meets UL2459 and NEC
410.73 and are UL/cUL rated for
make and break under load from
outside the luminaire. UL/CUL
listed. Suitable for damp locations.
Thermally optimized for environ-
ments up to 122°F (50°C) when
used with high temperature
ballasts.
C ... Finish
Electrostatically applied baked
white enamel finish is preceded by
a multistage cleaning cycle, iron
phosphate coating with rust
inhibitor.
C B
32-11/16" [830mm]
7/8" KO (4)
Top Connector
11/16" X 1"
Emboss
KO (2)
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
D ... Downlight/Uplight Optics
Die formed reflectors are faceted
for 8 lamp configurations with two
optical distributions - medium and
wide. Medium beam optical
modules utilize 95% specular
aluminum while the wide distri-
bution utilizes a high performance
95% reflective polyester powder
coated finish. Uplight option
provided to enable ceiling
uniformity.
Mounting
The HBOT series is suited for
surface or suspension mounting
with wire hook and chain set, stem
or cable mounting. Optional top
connector box mounting is
available.
D
LAMP CONFIGURATIONS
8-Lamp
5-3/16" [131mm]
X=4"
X X X
[102mm]
32-11/16" [830mm]
HBOT T8 SERIES
Nominal 3' x 4' High-Bay
HIGH-BAY INDUSTRIAL
OPEN TOP LUMINAIRE
5-3/16"
[131mm]
E N E R G Y D ATA
Input Watts:
EB Ballast
832 = 218
EB/Plus Ballast
832 = 294
ER Ballast
832 = 224
ER/Plus Ballast
832 = 288
X X X
X
Luminaire Efficacy Rating
LER = 77 (White)
LER = 84 (Specular)
Catalog Number: 3HBOT-832-UPL
Yearly Cost of 1000 Lumens,
3000 hrs. at .08 KWH = $2.84
* Reference the lamp/ballast data in the
Tecnical Section for specific lamp/ballast
requirements
** Consult Pre Sales Technical Support.
LAMPS CONTAIN MERCURY. DISPOSE ACCORDING
TO LOCAL, STATE OR FEDERAL LAWS
Safe and convenient means of
disconnecting power
07/01/2008 11:14:52 AM
®
Type
Date
F-BAY
(8) T8 Lamps
ADF060954
