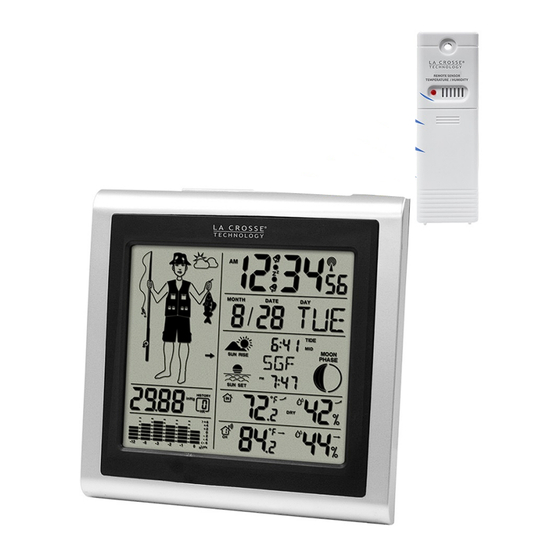

- Page 1 Model: 308-1451v2 Instruction Manual DC: 112618 WIRELESS FORECAST STATION pg. 1 Model: 308-1451 www.lacrossetechnology.com/support...
-
Page 2: Table Of Contents
Table of Contents INITIAL SETUP ....................3 LCD FFEATURES ..........Error! Bookmark not defined. BUTTONS ......................4 SET TIME, DATE, ETC..................4 BACKLIGHT .....................6 CITY SELECTION-SUNRISE/SUNSET TIMES ............5 COMFORT STATEMENT...................6 TIDE ........................6 MOON PHASE ....................7 ALARMS and ALERTS ..................7 TIME ALARMS .................... -
Page 3: Initial Setup
SPECIFICATIONS ................... 14 LOW BATTERY ICON ..................15 CARE AND MAINTENANCE ................15 WARRANTY AND SUPPORT INFORMATION ..........15 FCC STATEMENT ................... 16 City Codes ……………………………...........Appendix INITIAL SETUP Step 1: Insert 2 new AA batteries (not included) into the TX142THv3 sensor. Observe the correct polarity. -
Page 4: Buttons
Note: If the outdoor Temperature area shows dashes after 3 minutes, remove the batteries and start from step 1. BUTTONS SET TIME, DATE, ETC. 1. Hold the SET button to enter time set mode. 2. Press the + or - button to adjust values. 3. -
Page 5: City Selection-Sunrise/Sunset Times
4. 12Hr/24Hr Time 5. Fahrenheit/Celsius 6. Hours 7. Minutes 8. Seconds 9. Year 10. Month 11. Date Press the SET button to exit or wait 20 seconds. CITY SELECTION-SUNRISE/SUNSET TIMES Select a city location closest to you in a North/South line, even a city in another state or country. -
Page 6: Backlight
STATE: 4. Press the + or - button to select the state. 5. Press the CITY button to confirm and enter city selection. CITY: 6. Press the + or - button to select the city. 7. Press the CITY button to confirm and exit. Note: Use the city location closest to you in a North/South line even a city in another state or country, for the most accurate sunrise/sunset times for your location. -
Page 7: Moon Phase
• Full & new moon = spring tide (TIDE HI). • Quarter = neap tide (TIDE LO) • Other = mean water level (TIDE MID) MOON PHASE The LCD Moon phase is divided by 6 sections, showing a total of 12 phases of the moon. -
Page 8: Outdoor Temperature Alerts
(A1 will show in the seconds’ area). 2. Hold the ALARM button to enter alarm set mode. 3. Press the + or - button to adjust values. Set Alarm 2: 1. Press the ALARM button twice to enter alarm 2. (A2) will show in the seconds’... -
Page 9: Frost Alarm
3. Press the SET button to move to the Low Temp alert. 4. The Low Temp Alert icon will flash. 5. Press the + or - button to adjust values. 6. Press the SET button to confirm and exit to current temperature. 7. -
Page 10: Temperature Trend Icons
TEMPERATURE TREND ICONS The temperature (2°F/1°C) and humidity (3% RH) trend indicators update every 30 minutes or less. • Temperature has risen in the past 3 hours. • Humidity has risen in the past 3 hours. • Temperature has not changed in the past 3 hours. •... -
Page 11: Absolute Pressure Number
ABSOLUTE PRESSURE NUMBER Absolute Pressure Number: Barometric Pressure is read by the forecast station. Since this number is absolute pressure it may not be the same as a local reporting station that reads in relative pressure. Note: The number cannot be calibrated. Unit of Measure: (InHg or hPa): •... -
Page 12: Weather Forecast Icons
WEATHER FORECAST ICONS The icons in the top right corner shown below, forecast the weather for the next 12-24 hours. The icon is a prediction of the weather in terms of getting better or worse based on rising and falling barometric pressure. SUNNY PARTLYLY CLOUDY CLOUDY... -
Page 13: View/Reset Min/Max Values
VIEW/RESET MIN/MAX VALUES The station automatically resets MIN/MAX values daily at midnight (12:00 AM). • Press the MAX/MIN button once to view maximum values. • Hold the MAX/MIN button to reset maximum values. • Press the MAX/MIN button twice to view minimum values. •... -
Page 14: Specifications
SPECIFICATIONS Indoor: Temperature Range: +32°F to +122°F (0°C to 50°C) Humidity Range: 10%-99% (RH) Interval: About every 30 seconds Outdoor: Temperature Range: -40°F to 140°F (-40°C to 60°C) Humidity Range: 10%-99% (RH) Distance: Over 330 ft. (100 meters) RF 433MHz (open air) Interval: About every 50 seconds Power: Forecast Station: 3-AA, IEC, LR6 batteries (not included) -
Page 15: Low Battery Icon
• Promptly remove expired batteries. WARRANTY AND SUPPORT INFORMATION La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship. Before returning a product, please contact our friendly customer support... -
Page 16: Fcc Statement
FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 17 ALASKA IOWA MISSISSIPPI ANCHORAGE WATERLOO GWO GREENWOOD FAIRBANKS DES MOINES HUNTSVILLE JUNEAU DAVENPORT JACKSON NOME SIOUX CITY TUPELO ALABAMA IDAHO MONTANA BIRMINGHAM BOISE BILLINGS GADSDEN GIBBONSVILLE FORT PECK MGM MONTGOMERY POCATELLO GREAT FALLS MOBILE SAND POINT HELENA SIDNEY ARKANSAS ILLINOIS WHITEFISH FORT SMITH CHAMPAIGN...
- Page 18 OREGON MADISON BURNS MWC MILWAUKEE EUGENE SPOONER MEDFORD PORTLAND WEST VIRGINIA SALEM CHARLESTON WHEELING PENNSYLVANIA HARRISBURG WYOMING PHILADELPHIA BUFFALO PITTSBURGH CASPER SCRANTON CHEYENNE LITTLE AMERICA PUERTO RICO WEST YELLOWSTONE SAN JUAN CANADA CITY LISTING RHODE ISLAND PROVIDENCE EDMONTON CALGARY SOUTH CAROLINA VANCOUVER CHARLESTON WINNIPEG...
