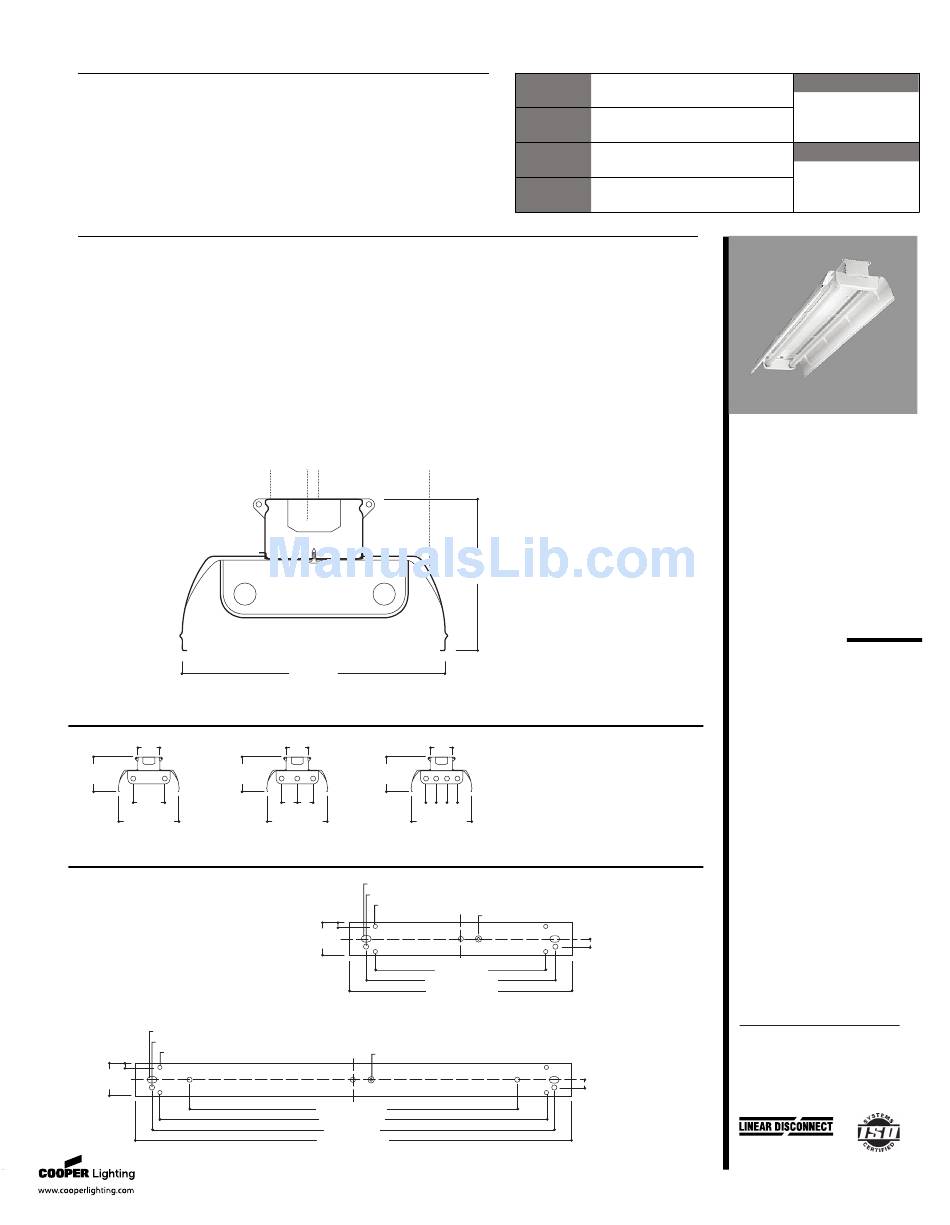

Cooper Lighting Metalux 332 Specification

DESCRIPTION
The EIM Series is an energy efficient family of industrials that feature
premium performance and durability. The industrial series incorporates
heavy duty, embossed, reflectors that precisely direct and effectively control
light. The EIM reflector is a unique design that was developed to prevent
debris accumulation in special applications. The versatile EIM Series can be
installed using various mounting methods and numerous options and
accessories are available.
The EIM Series can be utilized in simple task and area lighting to the most
demanding specialized industrial applications with environmental
requirements.
SPECIFICATION FEATURES
A ... Construction
Channel is code gauge prime cold
rolled steel. Die formed with deep
V-grooves for tong hanger. Die
formed channel connector assures
straight rows and continuity of
ground through set screws.
Lampholder mounting brackets are
easily inserted with snap-in action.
LAMP CONFIGURATIONS
X
6-3/8" 6-3/8"
[162mm] [162mm]
X=4-1/4"
6"
X=4-1/4"
[108mm]
[152mm]
[108mm]
Y=3"
13" [330mm]
[76mm]
MOUNTING DATA
11/16" [17mm] x 1 K.O. (2)
7/8" [22mm] K.O. (5)
5/16"
7/32" [6mm] x 3/8" [10mm] K.O. (4)
[8mm]
4-1/4"
[108mm]
COOPER LIGHTING - METALUX
B ... Electrical*
Ballast are CBM/ETL Class "P" and
positively secured by mounting
bolts. Metal clad lampholders are
spring loaded for turret safety.
UL/CUL listed. Suitable for damp
locations.
C ... Finish
Multistage iron phosphate
pretreatment ensures maximum
bonding and rust inhibitor.
Lighting grade, baked white
enamel finish.
A B C
D
13"
[330mm]
X
6-3/8"
[162mm]
X=4-1/4"
Y Y Y
[108mm]
Y=2"
13" [330mm] 13" [330mm]
[51mm]
11/16" [17mm] x 1 K.O. (2)
7/8" [22mm] K.O. (3)
7/32" [6mm] x 3/8" [10mm] K.O. (4)
5/16"
[8mm]
4-1/4"
[108mm]
41-1/2" [1054mm]
49-3/4" [1264mm]
Ground Screw Bump
79-1/2" [2019mm]
88-3/4" [2254mm]
93" [2362mm]
99-1/2" [2527mm]
Specifications and Dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
D ... Reflectors
Painted after fabrication. Die
formed code gauge steel. Deep
draw full width ribs formed with
one press stroke. Side flanges lend
strength with Downward turn.
Reflector design prevents lint, dust
and debris buildup. Easily cleaned.
Baked white enamel 13" width.
Four foot sections. Reflectors
secured by positive retaining
screw. Reflector aligners provided.
Standard with 20% uplight (EIM).
Closed top reflector (ECIM).
Optional Industrial fixtures are
available incorporating silver
technology enhancements.
(SilverLining) Consult Pre Sales
Technical Support.
6-3/8"
[162mm]
X
Y Y
Ground Screw Bump
1-1/16"
[27mm]
39" [991mm]
1-1/16"
[27mm]
®
Type
Date
EIM
240
232
340
332
440
432
4' INDUSTRIAL
2, 3 OR 4 LAMP
Environmental Heavy Duty
Industrial
E N E R G Y D ATA
Input Watts:
EB Ballast & STD Lamps
240 (72)
232 (61)
340 (110)
332 (91)
440 (144)
432 (122)
ES Ballast & STD Lamps
240 (86)
232 (71)
340 (136)
332 (108)
440 (172)
432 (142)
Luminaire Efficacy Rating
LER = FI-84
Catalog Number: EIM-232
Yearly Cost of 1000 lumens, 3000
hrs at .08 KWH = $2.87
*Reference the lamp/ballast data in the
Technical Section for specific lamp/ballast
requirements.
LAMPS CONTAIN MERCURY. DISPOSE ACCORDING
TO LOCAL, STATE OR FEDERAL LAWS
Safe and convenient means of
disconnecting power
ADF020738
