Fluke FiberInspector Pro FT650 Instruction Sheet

Video microscope
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual

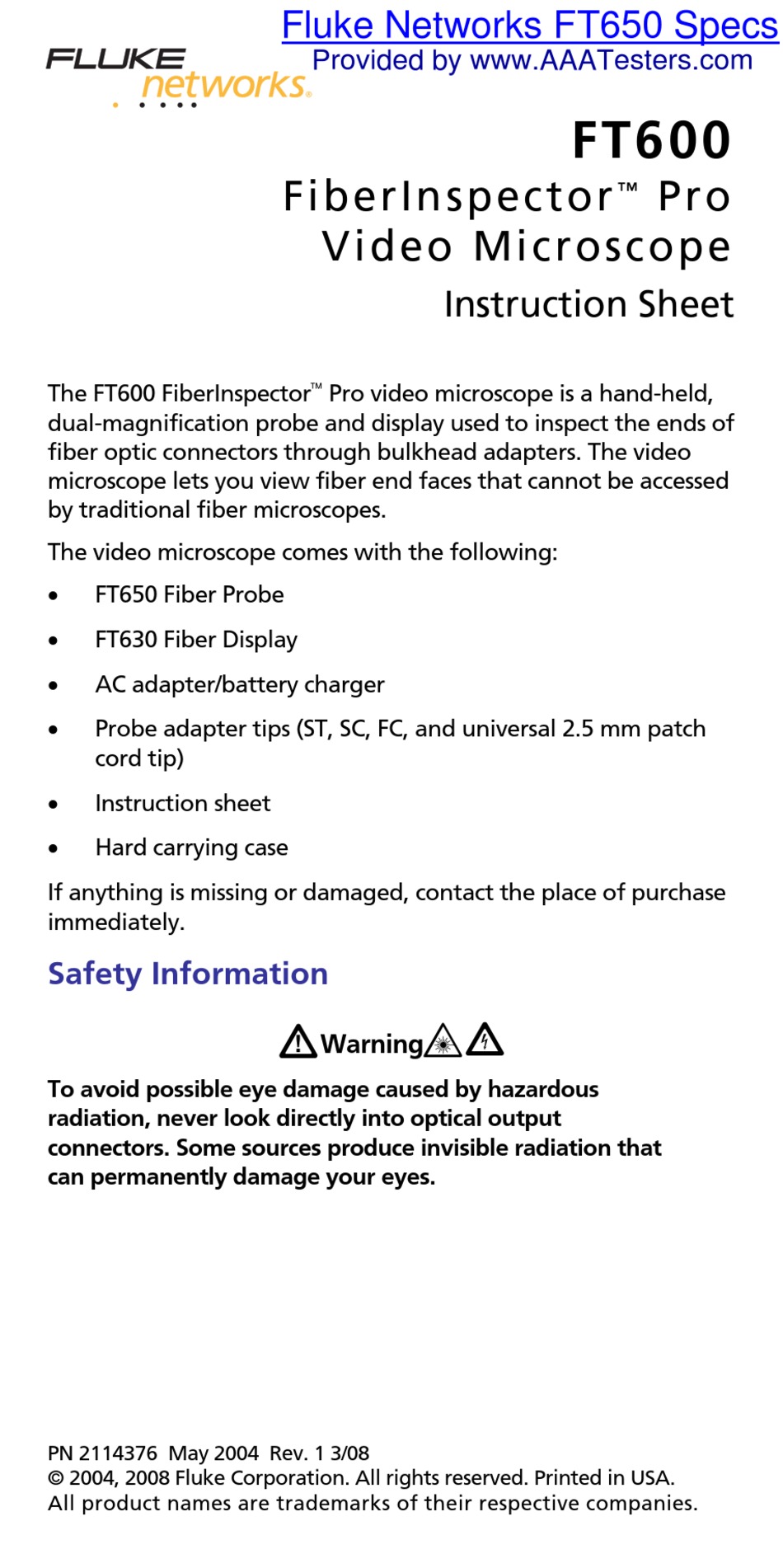

The FT600 FiberInspector
dual-magnification probe and display used to inspect the ends of
fiber optic connectors through bulkhead adapters. The video
microscope lets you view fiber end faces that cannot be accessed
by traditional fiber microscopes.
The video microscope comes with the following:
•
FT650 Fiber Probe
•
FT630 Fiber Display
•
AC adapter/battery charger
•
Probe adapter tips (ST, SC, FC, and universal 2.5 mm patch
cord tip)
•
Instruction sheet
•
Hard carrying case
If anything is missing or damaged, contact the place of purchase
immediately.
Safety Information
To avoid possible eye damage caused by hazardous
radiation, never look directly into optical output
connectors. Some sources produce invisible radiation that
can permanently damage your eyes.
PN 2114376 May 2004 Rev. 1 3/08
© 2004, 2008 Fluke Corporation. All rights reserved. Printed in USA.
All product names are trademarks of their respective companies.
Fluke Networks FT650 Specs
Provided by www.AAATesters.com
FiberInspector
Video Microscope
™
Pro video microscope is a hand-held,
*
W
Warning
FT600
Instruction Sheet
X
Pro
™

Advertisement

loading

Related Manuals for Fluke FiberInspector Pro FT650

Summary of Contents for Fluke FiberInspector Pro FT650

  • Page 1 Some sources produce invisible radiation that can permanently damage your eyes. PN 2114376 May 2004 Rev. 1 3/08 © 2004, 2008 Fluke Corporation. All rights reserved. Printed in USA. All product names are trademarks of their respective companies.

  • Page 2: Features And Use

    To avoid possible fire, electric shock, or personal injury: • Do not open the case; no user-serviceable parts are inside. • Use only the ac adapter provided to power the display and charge the battery. Powering the Microscope Before you power the video microscope with the battery for the first time, charge the battery with the ac adapter for about 4 hours.
  • Page 3 Connect the FT650 Fiber Probe to the display. To ensure continuous operation, connect the ac adapter whenever possible. The ac power LED ( lights when the ac adapter is connected. The LEDs turn on from left to right as the battery approaches full charge.

  • Page 4: Contacting Fluke Networks

    Registration Registering your product with Fluke Networks gives you access to valuable information on product updates, troubleshooting tips, and other support services. To register, fill out the online registration form on the Fluke Networks website at www.flukenetworks.com/registration. Contacting Fluke Networks www.flukenetworks.com...

  • Page 5: Specifications

    Accessories The following accessories are available from Fluke Networks for the FT600 FiberInspector Pro microscope. Visit the Fluke Networks website at www.flukenetworks.com for a complete list of fiber test equipment and accessories. Description Fluke Model ™ TPak meter hanging kit...
  • Page 6 Weight 0.4 lb (180 g) LIMITED WARRANTY AND LIMITATION OF LIABILITY Fluke Networks mainframe products will be free from defects in material and workmanship for one year from the date of purchase. Parts, accessories, product repairs and services are warranted for 90 days, unless otherwise stated. Ni-Cad, Ni-MH and Li-Ion batteries, cables or other peripherals are all considered parts or accessories.
