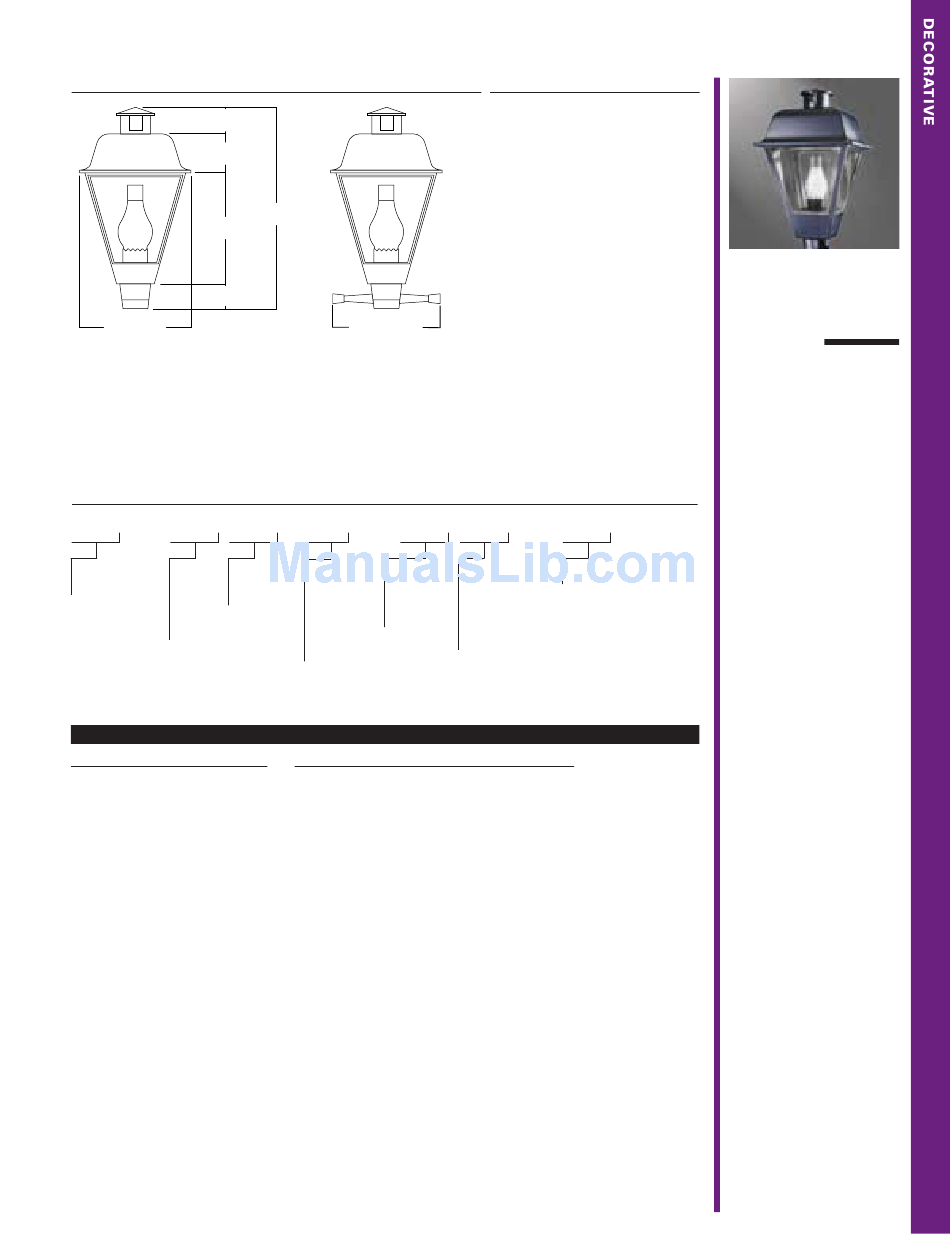

D I M E N S I O N S
4"
[102mm]
6"
[152mm]
17"
[432mm]
3 3/4"
[95mm]
17" [432mm]
O R D E R I N G I N F O R M AT I O N
S A M P L E N U M B E R : T R D - 1 5 0 - M H - 1 2 0 - 2 F - B K
Product
Lamp
Lamp Type
Family
Wattage
1
MH=Metal
TRD=Dayform
50=50W
Traditionaire
TM
70=70W
HPS=High
100=100W
150=150W
175=175W
E.P.A. 2.6
Options
5
R=NEMA Twistlock Photocontrol Receptacle
L=Lamp Included
S=Toolless Entry
NOTES: 1 All Metal Halide lamps 150W and below are medium-base. 175W and above are mogul-base. 2 Product also available in non-US voltages and 50Hz for
international markets. Consult factory for availability and ordering information. 3 Multi-Tap ballast is 120/208/240/277V wired 277V. 4 Triple-Tap ballast is
120/277/347V wired 347V. 5 Add as suffix in the order shown. 6 Order separately, replace XX with color suffix. 7 Specifications and dimensions subject to
change without notice.
30 3/4"
[781mm]
16 1/2" [419mm]
(Optional Ladder Rest)
Voltage
2
Distribution
120=120V
2F=Type II
Halide
208=208V
Formed
240=240V
3F=Type III
Pressure
277=277V
Formed
Sodium
5F=Type V
347=347V
Formed
480=480V
MT=Multi-Tap
3
TT=Triple-Tap
4
Accessories
6
OA/RA1016=NEMA Twistlock Photocontrol—Multi-Tap
OA/RA1027=NEMA Twistlock Photocontrol—480V
OA1201=NEMA Twistlock Photocontrol—347V
TA1BK=Ladder Rest
MCGRAW-EDISON
D E S C R I P T I O N
Dayform Traditionaire
TM
outdoor
luminaires display the old-
fashioned charm of traditional
area lighting, enhancing any
setting with a distinctive styling.
Graced with a visually appealing
design form during the day,
surroundings are well-lighted
and safe at night. U.L. listed and
CSA certified for wet locations.
As a decorative luminaire, the
Dayform Traditionaire
TM
tastefully
complements the architectural
and environmental design of
estates, parks, motels, restaurants,
apartments, churches, institutions
and roadways.
Color
Options &
AP=Grey
Accessories
BZ=Bronze
(See Below)
BK=Black
WH=White
GN=Hartford Green
DP=Dark Platinum
GM=Graphite Metallic
®
TRD
DAYFORM
TRADITIONAIRE
TM
5 0 - 1 7 5 W
M e t a l H a l i d e
H i g h P r e s s u r e S o d i u m
P O S T- T O P
A R E A L U M I N A I R E
• Decorative cupola
conceals optional
photocontrol
• Specular aluminum
reflector is available in
three distributions
• Hinged, die-cast
aluminum cover has steel
hinge pins and captive
cover-retaining screws
• Injection-molded
contoured Polycarbonate
lens panels are standard
• Aluminum ballast cover
supports a decorative
glass chimney
• Single-piece, die-cast
aluminum housing has
integral base and lens
supports
• Integral self-aligning pole
top fitter fits 3" O.D. poles
or vertical tenons
• Approximate net weight:
20 lbs. (9 kgs.)
