Cobra 601-2108 Installation Instructions

23801 E. La Palma Ave., Yorba Linda, CA 92887 Ph. 714.692.8180 Fax. 714.692.5016
Items Supplied >
1 – FREEWAY BAR
2 – BOLT, BUTTONHEAD 3/8"-16 X 3/4"
2 – 3/8 FLAT WASHER
1 – BOLT, BUTTONHEAD 5/16-18 X 1"
1 – 5/16 FLAT WASHER
1 – NUT PLATE WITH 5/16-18 PEM
Instruction Manual >
Read all instructions carefully before installing your new Cobra
NOTE: Cobra Freeway Bars add style to your motorcycle. They are not designed to withstand a serious
impact and may not protect you and/or your motorcycle in the event of a crash.
1. Remove any accessories that may prohibit the installation of your new freeway bar.
2. Cover the rear portion of the front fender with masking tape to prevent it from getting scratched during
installation.
3. Remove the small plastic plugs in the holes on the lower frame area where the freeway bar will attach. See
FIGURE 01.
4. If possible, use an assistant to help hold the freeway bar during installation. Carefully position the freeway bar
between the frame down tubes and front tire. Make sure not to capture or pinch any cables or wires with the
freeway bar.
5. Slide the lower freeway bar mounts over the outside of the lower frame down tubes and align the holes. Then
insert the 3/8-16 buttonhead bolts, with flat washers, through the lower freeway bar brackets and into the
threaded holes on the lower frame down tubes. See FIGURE 02. Snug the bolts but do not tighten at this time.
6. Carefully rotate the top of the freeway bar towards the upper frame until the upper freeway bar mount rests on
the frame support bracket. Then insert the 5/16-18 buttonhead bolt, with the flat washer, through the freeway
bar upper mount and through the lower hole of the frame support bracket. See FIGURE 03.
recommends you always wear a helmet while riding. Please never operate your motorcycle while under
*Cobra
®
the influence of alcohol and/or drugs. Enjoy the new look of your motorcycle and please ride safely.
DOCUMENT NO. 0017 REV. B
01/20
Application(s) >
HARLEY SOFTAIL:
FLSL SLIM
FXFB/FXFBS FAT BOB
FLDE DELUXE
FLSB SPORT GLIDE
FLFB/FLFBS FAT BOY
FLHC/FLHCS HERITAGE CLASSIC
FXBR/FXBRS BREAKOUT
NOTE: WILL NOT FIT 2019 FXDR 114 OR 18-20
SOFTAILS WITH EXTENDED REACH CONTROLS.
601-2108/601-2108B

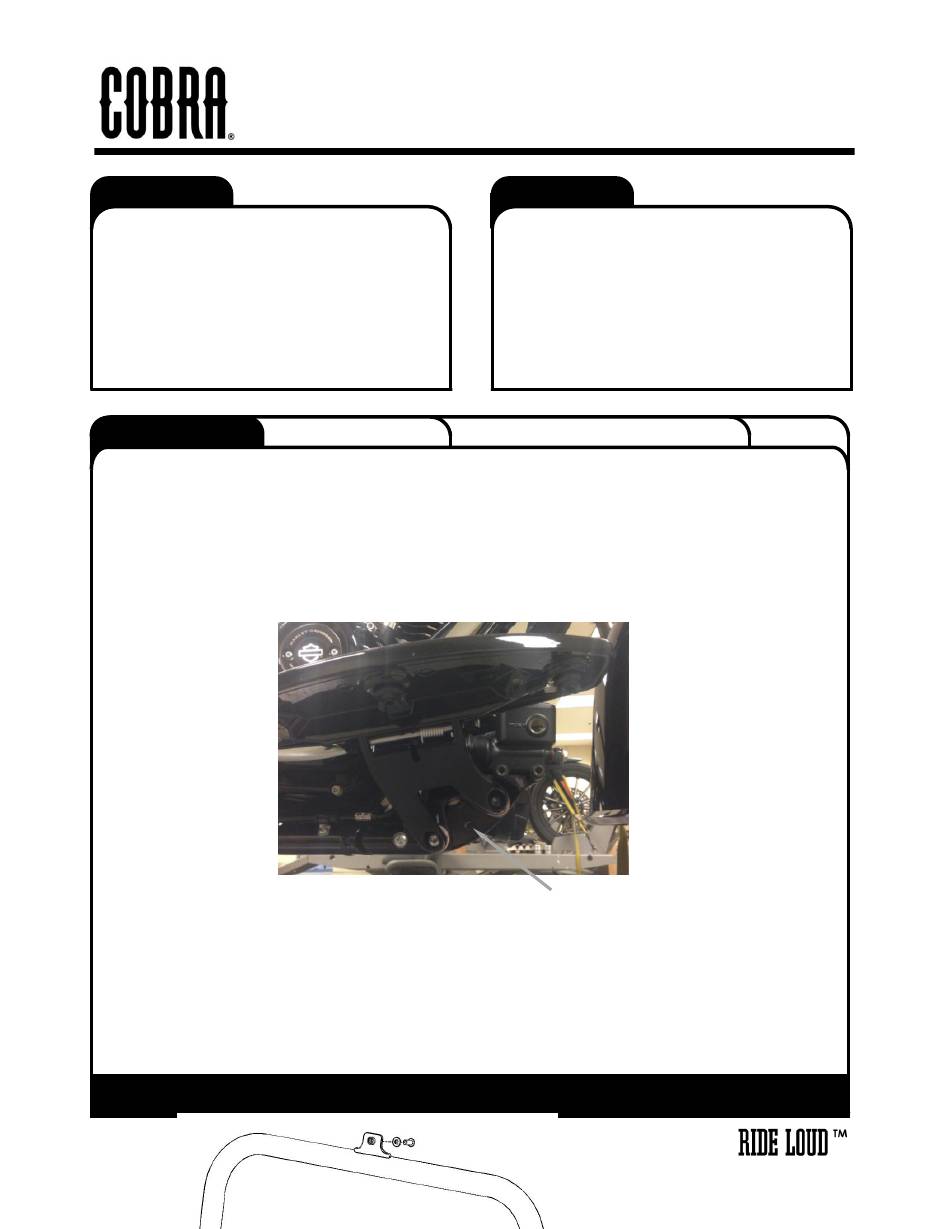

LOWER MOUNTING HOLE
FIGURE 01
(REMOVE PLUG)
www.cobrausa-vtwin.com
18-20
18-20
18-20
18-20
18-20
18-20
18-20
Page 1 of 2
product!
®
