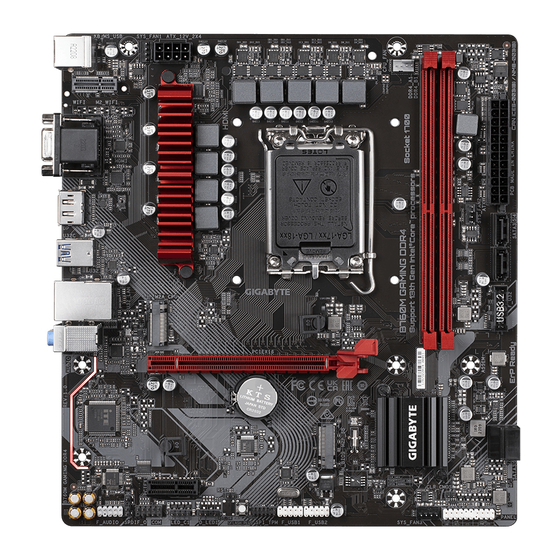

B760M GAMING AC
B760M GAMING
B760M GAMING AC DDR4
B760M GAMING DDR4
User's Manual
Rev. 1002
For more product details, please visit GIGABYTE's website.
https://www.gigabyte.com/Motherboard/B760M-GAMING-AC-rev-10?m=ma#kf
https://www.gigabyte.com/Motherboard/B760M-GAMING-rev-10?m=ma#kf
https://www.gigabyte.com/Motherboard/B760M-GAMING-AC-DDR4-rev-10?m=ma#kf
https://www.gigabyte.com/Motherboard/B760M-GAMING-DDR4-rev-10?m=ma#kf
GIGABYTE will reduce paper use in order to fulfill the responsibilities of a global citizen.
Also, to reduce the impacts on global warming, the packaging materials of this product
are recyclable and reusable. GIGABYTE works with you to protect the environment.
Advertisement
Table of Contents
Related Manuals for Gigabyte B760M GAMING AC DDR4
Summary of Contents for Gigabyte B760M GAMING AC DDR4
- Page 1 GIGABYTE will reduce paper use in order to fulfill the responsibilities of a global citizen. Also, to reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
- Page 2 The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice.
-
Page 3: Table Of Contents
Table of Contents Chapter 1 Product Introduction ..................4 Motherboard Layout ..................4 Box Contents ....................6 Chapter 2 Hardware Installation ..................7 Installation Precautions ..................7 Product Specifications ..................8 Installing the CPU and CPU Cooler ............... 11 Installing the Memory ..................14 Installing an Expansion Card ................. -
Page 4: Chapter 1 Product Introduction
Chapter 1 Product Introduction Motherboard Layout KB_MS_USB CPU_FAN ATX_12V_2X4 M2_WIFIM SYS_FAN1 LGA1700 HDMI U32C U32_LAN AUDIO Realtek ® PCIEX16 2.5GbE LAN ® Super I/O Intel ® B760 USB 2.0 Hub PCIEX1 CODEC M_BIOS CLR_CMOS SPDIF_O QFLED D_LED1 SPI_TPM F_USB2 SYS_FAN3 F_AUDIO LED_C1 QFLASH_PLUS... - Page 5 ® PCIEX16 2.5GbE LAN ® Super I/O Intel ® B760 USB 2.0 Hub PCIEX1 CODEC M_BIOS CLR_CMOS SPDIF_O QFLED D_LED1 SPI_TPM F_USB2 SYS_FAN3 F_AUDIO LED_C1 QFLASH_PLUS F_USB1 F_PANEL Temperature sensor O Only for B760M GAMING AC DDR4. - 5 -...
-
Page 6: Box Contents
Box Contents B760M GAMING AC, B760M GAMING, B760M GAMING AC DDR4 or B760M GAMING DDR4 motherboard User's Manual I/O Shield Two SATA cables One antenna MO * The box contents above are for reference only and the actual items shall depend on the product package you obtain. -
Page 7: Chapter 2 Hardware Installation
Chapter 2 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •... -
Page 8: 2-2 Product Specifications
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Š Support for Extreme Memory Profile (XMP) memory modules Š (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) Onboard Integrated Graphics Processor-Intel HD Graphics support: ®... - Page 9 Š 1 x USB Type-C port, with USB 3.2 Gen 1 support ® Š 1 x RJ-45 port Š 3 x audio jacks Š M Only for B760M GAMING AC. O Only for B760M GAMING AC DDR4. - 9 -...
- Page 10 Micro ATX Form Factor; 24.4cm x 22.5cm Form Factor Š * GIGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice. & Please visit GIGABYTE's website for support lists of CPU, memory modules, SSDs, and M.2 devices.
-
Page 11: Installing The Cpu And Cpu Cooler
Read the following guidelines before you begin to install the CPU: • Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU support list.) • Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage. - Page 12 B. Installing the CPU Follow the steps below to correctly install the CPU into the motherboard CPU socket. Finger Tab M G ently press the CPU socket lever handle down and away from the socket. k C ompletely lift up the CPU socket lock- ing lever.
- Page 13 C. Installing the CPU Cooler Be sure to install the CPU cooler after installing the CPU. (Actual installation process may differ depending the CPU cooler to be used. Refer to the user's manual for your CPU cooler.) Apply an even and thin layer of thermal grease on the surface of the installed CPU.
-
Page 14: Installing The Memory
Read the following guidelines before you begin to install the memory: • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) •... -
Page 15: Installing An Expansion Card
Installing an Expansion Card Read the following guidelines before you begin to install an expansion card: • Make sure the motherboard supports the expansion card. Carefully read the manual that came with your expansion card. • Always turn off the computer and unplug the power cord from the power outlet before installing an expansion card to prevent hardware damage. -
Page 16: Back Panel Connectors
• After installing the HDMI/DisplayPort device, make sure to set the default sound playback device to HDMI/DisplayPort. (The item name may differ depending on your operating system.) (Note) To enable the Q-Flash Plus function, please navigate to the "Unique Features" page of GIGABYTE's website for more information. M Only for B760M GAMING AC. - Page 17 You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. & Please visit GIGABYTE's website for details on configuring the audio software. https://www.gigabyte.com/WebPage/697/realtek897-audio.html • When removing the cable connected to a back panel connector, first remove the cable from your device and then remove it from the motherboard.
-
Page 18: Internal Connectors
Internal Connectors 10 11 15 7 ATX_12V_2X4 SPDIF_O F_USB1/F_USB2 CPU_FAN F_U32 SYS_FAN1/2/3 SPI_TPM SATA3 4/5/6/7 D_LED1 LED_C1 CLR_CMOS M2A_CPU/M2P_SB F_PANEL QFLASH_PLUS F_AUDIO Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. •... - Page 19 1/2) ATX_12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed.
- Page 20 1.5Gb/s standard. Each SATA connector supports a single SATA device. The Intel Chipset supports RAID 0, ® RAID 1, RAID 5, and RAID 10. Please navigate to the "Configuring a RAID Set" page of GIGABYTE's website for instructions on configuring a RAID array. Pin No. Definition...
- Page 21 Incorrect connection may lead to the damage of the LED strip. For how to turn on/off the lights of the LED strip, please navigate to the "Unique Features" page of GIGABYTE's website. Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices.
- Page 22 8) M2A_CPU/M2P_SB (M.2 Socket 3 Connectors) The M.2 connectors on the motherboard support only M.2 PCIe SSDs. M2A_CPU M2P_SB Follow the steps below to correctly install an M.2 SSD in the M.2 connector. Step 1: Pull the clip's tab up and out of the mounting hole. Slide the M.2 SSD into the connector at an angle. Step 2: Press the M.2 SSD down and then secure it by pressing the clip's tab into the mounting hole.
- Page 23 Connects to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch (please navigate to the "BIOS Setup" page of GIGABYTE's website and search for "Soft-Off by PWR-BTTN" for more information).
- Page 24 10) F_AUDIO (Front Panel Audio Header) The front panel audio header supports High Definition audio (HD). You may connect your chassis front panel audio module to this header. Make sure the wire assignments of the module connector match the pin assignments of the motherboard header. Incorrect connection between the module connector and the motherboard header will make the device unable to work or even damage it.
- Page 25 12) F_USB1/F_USB2 (USB 2.0/1.1 Headers) The headers conform to USB 2.0/1.1 specification. Each USB header can provide two USB ports via an optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer. Pin No. Definition Power (5V) Power (5V) USB DX- USB DY-...
- Page 26 F_USB3 F 14) SPI_TPM (Trusted Platform Module Header) You may connect an SPI TPM (Trusted Platform Module) to this header. Pin No. Definition Data Output Power (3.3V) No Pin Data Input Chip Select S F_ S S_F 15) COM (Serial Port Header) The COM header can provide one serial port via an optional COM port cable.
- Page 27 CMOS values. • After system restart, go to BIOS Setup to load factory defaults (select Load Optimized Defaults) or manually configure the BIOS settings (please navigate to the "BIOS Setup" page of GIGABYTE's website for more information). - 27 -...
- Page 28 Reset The reset jumper provides you with several functions to use. To remap the button to perform different tasks, please navigate to the "BIOS Setup" page of GIGABYTE's website and search for "RST_SW (MULTIKEY)" for more information. 19) QFLASH_PLUS (Q-Flash Plus Button) Q-Flash Plus allows you to update the BIOS when your system is off (S5 shutdown state).
-
Page 29: Chapter 3 Bios Setup
If this occurs, try to clear the CMOS values and reset the board to default values. • Refer to the introductions of the battery/clear CMOS jumper in Chapter 2 or navigate to the "BIOS Setup" page of GIGABYTE's website and search for "Load Optimized Defaults" for how to clear the CMOS values. - Page 30 Startup Screen: The following startup Logo screen will appear when the computer boots. Function Keys Function Keys: <DEL>: BIOS SETUP\Q-FLASH Press the <Delete> key to enter BIOS Setup or to access the Q-Flash utility in BIOS Setup. <F12>: BOOT MENU Boot Menu allows you to set the first boot device without entering BIOS Setup.
-
Page 31: Chapter 4 Installing The Operating System And Drivers
OS installation process. Refer to the steps below: Step 1: Go to GIGABYTE's website, browse to the motherboard model's web page, download the Intel SATA Preinstall driver file on the Support\Download\SATA RAID/AHCI page, unzip the file and copy the files to your USB thumb drive. -
Page 32: Drivers Installation
(GCC). Click Install to proceed with the installation. (In BIOS Setup, make sure Settings\Gigabyte Utilities Downloader Configuration\Gigabyte Utilities Downloader is set to Enabled.) When the End User License Agreement dialog box appears, press <Accept> to install GIGABYTE Control Center (GCC). On the GIGABYTE CONTROL CENTER screen, select the drivers and applications you want to install and click Install. -
Page 33: Chapter 5 Appendix
• A USB thumb drive. The Intel B760 Chipset doesn't include RAID 0, RAID 1, RAID 5, and RAID 10 support for ® NVMe SSD storage devices. & Please visit GIGABYTE's website for details on configuring a RAID array. https://www.gigabyte.com/WebPage/927/intel700-raid.html - 33 -... -
Page 34: Regulatory Notices
47 CFR § 2.1077 Compliance Information Product Name: Motherboard Trade Name: GIGABYTE Model Number: B760M GAMING AC/B760M GAMING/B760M GAMING AC DDR4/B760M GAMING DDR4 Responsible Party – U.S. Contact Information: G.B.T. Inc. Address: 17358 Railroad street, City Of Industry, CA91748 Tel.: 1-626-854-9338 Internet contact information: https://www.gigabyte.com... - Page 35 European Commission Delegated Directive (EU) 2015/863 Statement I prodotti con il marchio CE sono conformi con una o più delle seguenti GIGABYTE products have not intended to add and safe from hazardous Direttive UE, come applicabile: Direttiva EMC 2014/30/UE, Direttiva sulla substances (Cd, Pb, Hg, Cr+6, PBDE, PBB, DEHP, BBP, DBP and DIBP).
- Page 36 "REV:1.0" means the revision of the motherboard is 1.0. Motherboard revision no.: Wireless module manufacturer, model name: B760M GAMING AC rev. 1.0 Realtek Semiconductor Corp. RTL8821CE B760M GAMING AC DDR4 rev. 1.0 Realtek Semiconductor Corp. RTL8821CE Approvals for wireless module RTL8821CE: - 36 -...
-
