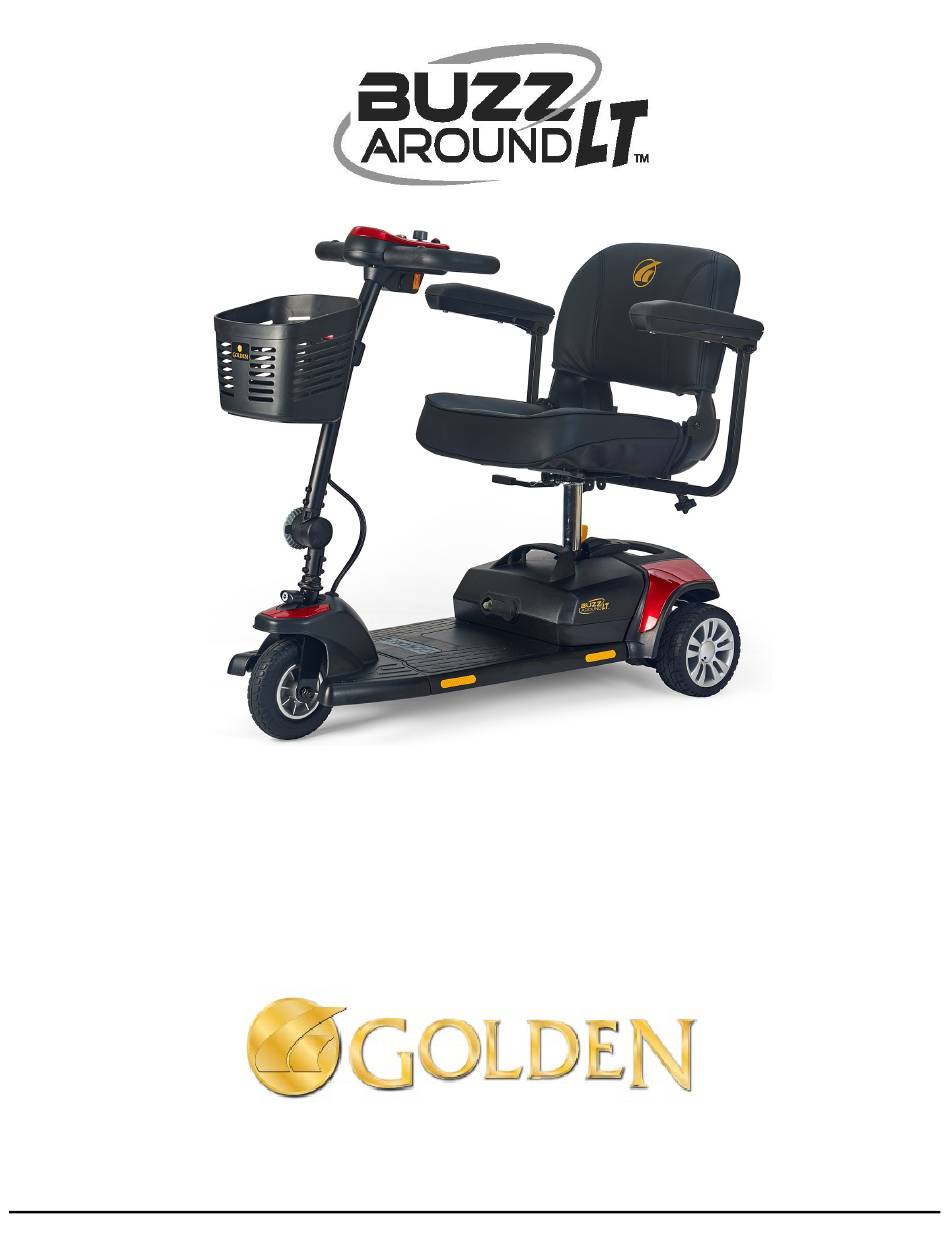

- Page 1 GB121 Owner’s Manual Buzzaround Lite™ Golden Technologies - 401 Bridge Street - Old Forge, PA 18518 - Tel: 800-624-6374 - Fax: 800-628-5165 - www.goldentech.com...
- Page 2 We ask that you read this manual completely before operating your new Buzzaround Lite™. Golden Technologies, Inc. is not and cannot be held responsible for any damage or injury incurred due to improper or unsafe use of the Golden Buzzaround Lite™...
-
Page 3: Table Of Contents
Intended Use: The intended use of the Buzzaround Lite is to provide mobility to persons limited to a seated position that are capable of operating an electric scooter. CONTENTS I. INTRODUCTION............……………………………………4 Features and Benefits...…………………………………………………………………………..5 Accessories for the Buzzaround Lite™ Scooter.…………………………………………….6 II. -
Page 4: Introduction
Buzzaround Lite™ combines cutting edge technology with attractive designs that are also highly functional in today’s world. We at Golden Technologies, Inc. know that you have chosen a scooter that will give you years of dependable operation and also will enhance the quality of your life by providing you with the mobility to experience an active daily lifestyle. -
Page 5: Features And Benefits
I. INTRODUCTION FEATURES AND BENEFITS Your Buzzaround Lite™ scooter has been designed with your comfort in mind. It has also been designed to be a safe method of transportation when safety and operating instructions are followed. Please review the features and benefits of certain components of the Buzzaround Lite™... -
Page 6: Accessories For The Buzzaround Lite™ Scooter
I. INTRODUCTION ACCESSORIES FOR THE BUZZAROUND LITE™ SCOOTER: A variety of accessories are available for your Golden Buzzaround Lite™ Scooter. Please contact your Authorized Golden Technologies Provider for more information or to order. • Cane Holder - Tube • Cup Holder •... -
Page 7: Safety
Before learning to operate your Buzzaround Lite, have your authorized Golden Technologies, Inc. provider determine if it is advisable for you to practice getting on and off your scooter and operating it in the presence of an attendant. MANDATORY! Read completely and understand this owner’s manual before assembling, operating, transporting, or disassembling your Buzzaround Lite scooter. - Page 8 • Whenever it is safely possible, drive forward down any ramp, low rise, or incline. Golden Technologies, Inc. does not recommend that you drive your scooter in reverse down any incline, ramp, curb, or low rise. Backing down any slope may create a very hazardous situation.
- Page 9 II. SAFETY When using either of the following procedures to back down a slope, Golden Technologies, Inc. strongly advises that you have the assistance of another person. Procedure 1 - Under Power 1. Set the key switch to the “Off” position. See section V. “Operation.”...
- Page 10 The more mobility your Golden Buzzaround Lite brings to you, the happier you will be, and the more satisfied we at Golden Technologies, Inc. will be! But as with all things, especially motor operated vehicles, observing a few rules and safety considerations will help ensure safe scooter operation.
- Page 11 II. SAFETY RULES FOR USE AND OTHER SAFETY CONSIDERATIONS - continued Always use caution when driving on soft or uneven surfaces such as grass or gravel. Also use caution on decks where there is no railing. Never drive on the roadway, except when you must cross the street. ...
-
Page 12: Emi/Rfi
III. EMI/RFI The rapid development of electronics, especially in the area of communications, has saturated our environment with electromagnetic (radio) waves that are emitted by television transmitters, cellular phones, citizen’s band radios (CBs), amateur radios (ham radios), wireless computer links, microwave transmitters, paging transmitters, etc. These electromagnetic (EM) waves are invisible and increase in strength the closer one gets to the source of transmission. -
Page 13: Your Golden Buzzaround Lite

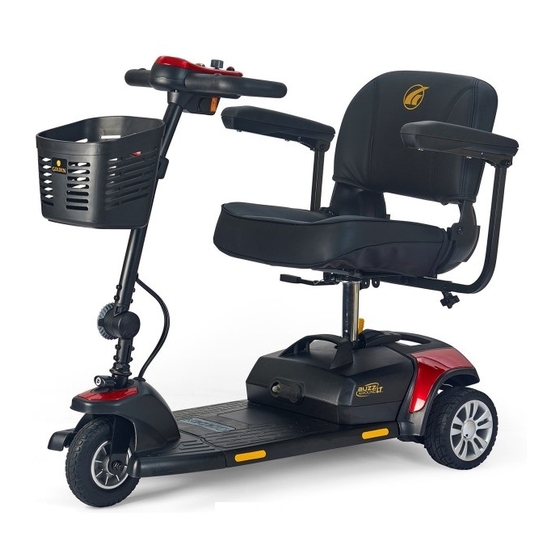

Figure 4. Your Golden Buzzaround Lite™ (Model GB121) FOR YOUR RECORDS Please fill in your Buzzaround Lite’s information below. This information will be useful in the event that you ever need to contact Golden Technologies, Inc. concerning your scooter. Model ________________ Serial Number_________________________________________... -
Page 14: Specifications
1. Battery range at 200 lbs., and will vary due to rider weight, drive surface, terrain, and battery type. 2. Electronics warranty excludes batteries. Literature is current at the time of printing. Golden Technologies reserves the right to make changes to the product or literature at any time. -
Page 15: Operation
V. OPERATION LED Battery Volt Meter Speed Key Switch Adjustment Dial Throttle Throttle Control Lever Control Lever Horn Button Figure 5. Buzzaround Lite™ Delta Tiller Control Panel CONTROL PANEL Speed Adjustment Dial • The speed adjustment dial allows you to preselect the maximum top speed of your Golden Buzzaround Lite. -
Page 16: Control Options
You will hear a “click” when the park brake engages. Control Options Golden Technologies, Inc. has made provision for the individual needs and abilities of the operators of the Golden Buzzaround Lite. Your authorized Golden Technologies, Inc. provider can reverse the throttle control lever... -
Page 17: Seating
V. OPERATION SEATING Locknut Figure 6. Armrest Width Adjustment Figure 7. Armrest Angle Adjustment Armrest Width Adjustment To adjust the armrest width: 1. Loosen the adjustment knobs at the rear of the seat. See figure 6. 2. Slide the armrests in or out to the desired width. 3. - Page 18 V. OPERATION Figure 8: Seat Rotation Adjustment Seat Rotation Lever The seat can be rotated through 360° and locked at any 45° position. 1. Pull up on the seat rotation lever and rotate the seat to the desired position. See figure 8. 2.
-
Page 19: Freewheel Mode
V. OPERATION Do not sit in or attempt to move your Buzzaround Lite unless the frame and rear carriage are securely engaged. Accidental separation of the frame from the rear carriage may occur and cause injury or damage. Never sit on your Buzzaround Lite in freewheel mode. Never disengage the park brake while you are operating your Buzzaround Lite. -
Page 20: Riding Your Buzzaround Lite™ Scooter
VI. RIDING YOUR Buzzaround Lite™ MOUNTING For your first driving session, make certain that your Buzzaround Lite starts out on a level surface and that you will continue driving on a level surface. BEFORE GETTING ON YOUR BUZZAROUND LITE™ 1. Check to be certain that the key has been removed from the key switch. See section V. "Operation"... -
Page 21: Basic Driving
VI. RIDING YOUR Buzzaround Lite™ BASIC DRIVING 1. Make certain that you are seated safely and properly on your Golden Buzzaround Lite. 2. Turn the speed control dial fully counterclockwise to its slowest setting. 3. Insert the key into the key switch—if you have not already done so. 4. -
Page 22: Steering In Tight Spots
VI. RIDING YOUR Buzzaround Lite™ Steering in a Tight Spot If you must steer in a tight spot, such as entering a doorway or when turning around: 1. Bring your Buzzaround Lite to a full stop. 2. Set speed at the lowest setting. 3. - Page 23 VI. RIDING YOUR Buzzaround Lite™ CONTROL THROUGH TIGHT SPOTS As you use your Golden Buzzaround Lite to greatly increase your mobility, you will undoubtedly encounter some obstacles that will require practice to negotiate smoothly and safely. Below are some common obstacles that you may meet during the daily use of your scooter.
-
Page 24: Disassembly
VII. DISASSEMBLY DISASSEMBLY Your Buzzaround Lite scooter is designed to be disassembled easily in order to be transported. When disassembling your scooter, please be sure to follow these simple instructions. Remove the Seat 1. Place your scooter on a level surface. Remove the key from the key switch before you begin to disassemble your Buzzaround Lite. - Page 25 VII. DISASSEMBLY Fold Down and Lock the Tiller 6. Push in and turn the tiller lock clockwise 90 degrees. See #1 on figure 16. This will lock the front wheel to keep it from turning side to side to help control while carrying.
-
Page 26: Assembly
VIII. ASSEMBLY WARNING! Be aware of any possible pinch-points when connecting the rear frame to the front frame. Please note warning labels at pinch-points during assembly. WARNING! Pinching and crushing hazard! Increased hazards due to pinching or crushing result due to the component weight (such as batteries) during preparation for transport and maintenance work. - Page 27 VIII. ASSEMBLY Reinstall the Drivetrain 1. Line up the frame and the drivetrain. See figure 19. WARNING! WATCH FINGER PLACEMENT! BE CAREFUL NOT TO PINCH YOUR FINGERS! 2. Lower the frame onto the drivetrain until the drivetrain release lever engages. You should hear an audible click.
- Page 28 VIII. ASSEMBLY Raise the Tiller 4. Loosen the tiller adjustment knob and raise the tiller. See figure 22. 5. Tighten the tiller adjustment knob at the desired position. Front Basket Tiller Adjustment Tiller Lock Knob Knob Figure 22. Tiller Raised MAKE SURE YOU TIGHTEN YOUR TILLER ADJUSTMENT KNOB TO BE SURE IT IS SECURED IN THE DESIRED POSITION! Install the Front Basket...
- Page 29 VIII. ASSEMBLY Install the Seat 7. Hold the seat on an angle so you can see the seat swivel post underneath. 8. Place the seat swivel post into the seat post as shown in figure 23. 9. Push down on the seat to lock the seat in place. Move the seat from side to side to make sure it is locked in place.
-
Page 30: Transporting Your Buzzaround Lite
All Golden Buzzaround Lite scooters can be equipped with docking devices for loading onto a vehicle by means of a mechanical lift or hoist. Contact your Golden Technologies, Inc. provider for more information concerning docking devices and scooter lift devices. -
Page 31: Care And Maintenance
X. CARE AND MAINTENANCE ROUTINE MAINTENANCE Your scooter requires a minimal amount of care and maintenance. If you do not feel confident in your ability to perform the maintenance listed below, you can schedule an inspection and maintenance with your provider. ... -
Page 32: Batteries And Charging
X. CARE AND MAINTENANCE IMPORTANT! New batteries MUST be fully charged prior to the initial use of your scooter. Charge new batteries for 12 hours even if the battery gauge already shows a full charge. This is to condition your new batteries for maximum performance. WARNING! Corrosive chemicals contained inside the battery. -
Page 33: If Your Buzzaround Lite™ Does Not Operate
• Recharge your Buzzaround Lite’s batteries. See “Charger and Batteries” in this section of this manual. • If the problem continues, have your authorized Golden Technologies, Inc. provider load test the batteries. • If the batteries are good, the charger may be the problem. Consult your authorized Golden Technologies, Inc. -
Page 34: Diagnostics
If the main circuit breaker continues to trip, there is probably an underlying electrical fault that needs attention. • Contact your authorized Golden Technologies, Inc. provider. • Do not keep resetting the main circuit breaker without correcting the underlying electrical problem. - Page 35 Remedy: • Turn off your Buzzaround Lite’s key switch and allow the scooter to sit for 10 minutes. • Consult your authorized Golden Technologies, Inc. provider. 5 Beeps • Indicates a brake problem. • The freewheel lever may be in the disengaged position. See page 19.
- Page 36 8 Beeps • Indicates a motor voltage problem. • Your scooter will not operate until the problem is corrected. Remedy: Contact your authorized Golden Technologies, Inc. provider. 9 Beeps • Indicates other internal errors or faults • Your scooter will not operate until the problem is corrected Remedy: Contact your authorized Golden Technologies, Inc.
-
Page 37: Warranty
GL111, GL141 Lifetime Limited Warranty: For the life of the scooter, from the date of purchase from an authorized Golden Technologies’ dealer, in the event of defective materials or workmanship, Golden Technologies will repair or replace at our option any... - Page 38 For the period of one year from the date of purchase, in the event of defective materials or workmanship, Golden Technologies will repair or replace at our option any of the following parts found to be defective by an authorized Golden Technologies representative: ...
- Page 40 Fold Here First Place Stamp Here Golden Technologies 401 Bridge St. Old Forge, PA 18518 Fold Here Second...
- Page 42 GB121 401 Bridge Street Old Forge, PA 18518 Tel: 800-624-6374 Fax: 800-628-5165 www.goldentech.com Buzzaround Lite™ 01.14.2022...
