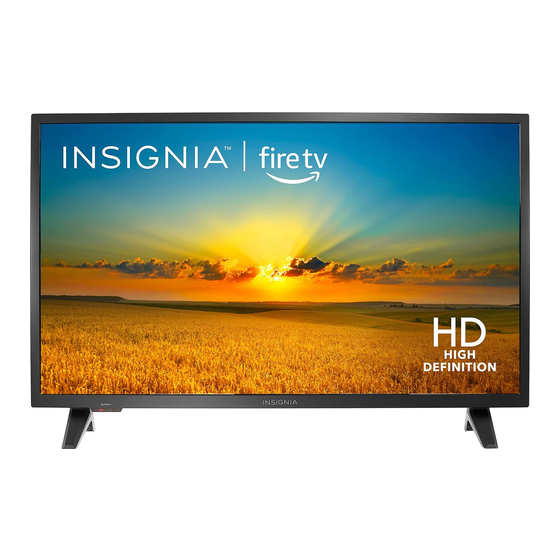

Insignia NS-32F201NA23 Quick Setup Manual

QUICK SETUP GUIDE
HD
32"
60Hz LED TV
NS-32F201NA23
INCLUDED ACCESSORIES
Voice Remote with Alexa
and two AAA batteries
+ + +
TV stands
Q4 screws
(16 mm length) (4 pcs.)
Power cord
STOP
Before using your new TV, read these
instructions to prevent any damage.
Do not plug the power cord in until all
other devices have been connected.
INSTALLING THE STANDS OR A WALL MOUNT
1
Place your TV face-down on a cushioned, clean surface.
STANDS
1 Align the TV stand screw
holes with the holes on
your TV's bottom.
2 Use a Phillips screwdriver
and the four provided
screws to secure the
stands to your TV.
WALL MOUNT
Before you mount your TV, make sure that:
• You remove the stands.
• The wall-mount bracket supports the weight of your TV.
See the instructions that came with your wall mount
for more information about how to correctly mount your TV.
WARNING: Your TV has four VESA mounting holes on the back.
You must secure a wall-mount bracket to all four holes.
If you do not use all four holes, your TV may fall and cause
property damage or personal injury.
Note: Wall-mount screws are not included.
2 MAKING CONNECTIONS
HDMI
(best video quality)
Note: You can use the
HDMI1 (ARC) jack to
connect a digital
audio system.
AV
(good video quality)
AUDIO/VIDEO OUT
VIDEO
Coaxial
(good video quality)
HD HD
Connect an antenna to
access live over-the-air TV.
VESA Mounting Pattern
100 × 100 mm
Screws: type M4, 16 mm to
20 mm length depending
on the wall mount
/
AUDIO OUT
DIGITAL
OPTICAL
OUTPUT
HDMI1
(ARC)
HDMI2
HDMI3
HDMI OPTIONS
VIDEO L AUDIO R
AV IN
ANT/CABLE
ETHERNET
FEATURES
Power indicator
Remote control
sensor
Power/Input button
Press to turn your TV on or off manually.
When your TV is on, a short
press changes power menu and
a long press turns off your TV.
VIDEO L AUDIO R
ETHERNET ANT/CABLE
AV IN
Note: Images do not necessarily represent the exact design
of your television.
AUDIO OPTIONS
ANALOG
L
R
AUDIO IN
SOUNDBAR
DIGITAL
You can use the DIGITAL OPTICAL
OUTPUT jack or the HDMI1 (ARC)
jack.
Note: If you need to change the digital
OPTICAL audio format, go to the Home menu,
AUDIO IN
select Settings, then select Display &
SOUNDBAR
Sounds. Select Audio Output, then
select Digital Audio Format and
change the setting to PCM or your
preferred audio format.
ETHERNET (optional)
Note: You can use a wired Ethernet connection to
access the internet instead of a Wi-Fi connection.
ETHERNET
Plug an Ethernet cable into the ETHERNET jack on
your TV and your Ethernet connection.
AUDIO OUT
DIGITAL
OPTICAL
OUTPUT
USB
DC 5V 0.9A
HDMI1
(ARC)
HDMI2
HDMI3
