Summary of Contents for Philips 4000 Series

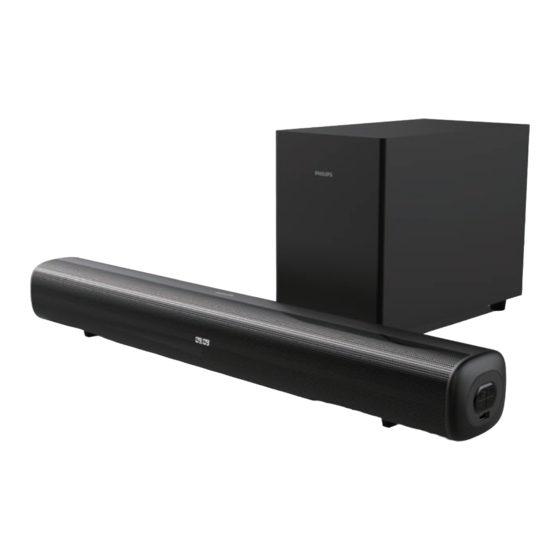

- Page 1 Soundbar 4000 Series TAB4308...
- Page 5 ① ② ③ ④ ⑤ ⑥ ① : Short press: Input source switch Long press: Power on/Standby ② : BT/USB mode: Play/Pause ③ : Decrease volume ④ : Increase volume ⑤ USB: USB play slot ⑥ : Soundbar LED indicator...
- Page 6 ：Switch the SoundBar on or to standby ：Mute or restore volume 3. Input: Source Switch, nou for Audio in, bt for Bluetooth, USb for USB, ArC for HDMI 4. VOL+：Volume up. : In BT/USB mode, press to previous track. In USB mode, long press to Input rewind.
- Page 7 ① ③ ④ ② AC IN SUB OUTPUT...
- Page 8 Connect the SoundBar and Subwoofer through Subwoofer cabe...
- Page 9 Using a 3.5mm stereo audio cable, connect AUX IN connector on your SoundBar LINE to the connector on theTV or other device. Using an USB, connect the USB connector on your SoundBar to play the music saved in your USB driver.
-
Page 10: Adjust The Volume
Adjust the treble and bass volume 2 Press Bass -/+ on the remote control to increase/decrease subwoofer’s volume. bass Input Bass Bass bass Adjust the volume When adjusting the volume of the sound- bar, the status indicator will show the Press Treble -/+ on the remote current volume from 0 to max 30. - Page 11 4. Select and play audio les or music on your Bluetooth device During play, if a call is coming, music play is paused. lf your Bluetooth device supports AVRCP pro le, on the remote control you can press to skip to a track, or press pause/resume play.
- Page 12 20 Hz-20 kHz 800 mV +/-50mV 800 mV +/-50mV...
- Page 13 Soundbar Power supply: AC100-240V~,50/60 Hz Power consumption: DC24V/2A Standby power consumption: ≤1W Dimensions (W x H x D): 570 x 73 x 80mm Weight: 1.13kg Built-in speakers: 2 x full range (2.25”, 4 ohm) Subwoofer Dimensions (W x H x D): 149 x 217 x 267 mm Weight: 1.87 kg Built-in speakers:1 x low frequency...
