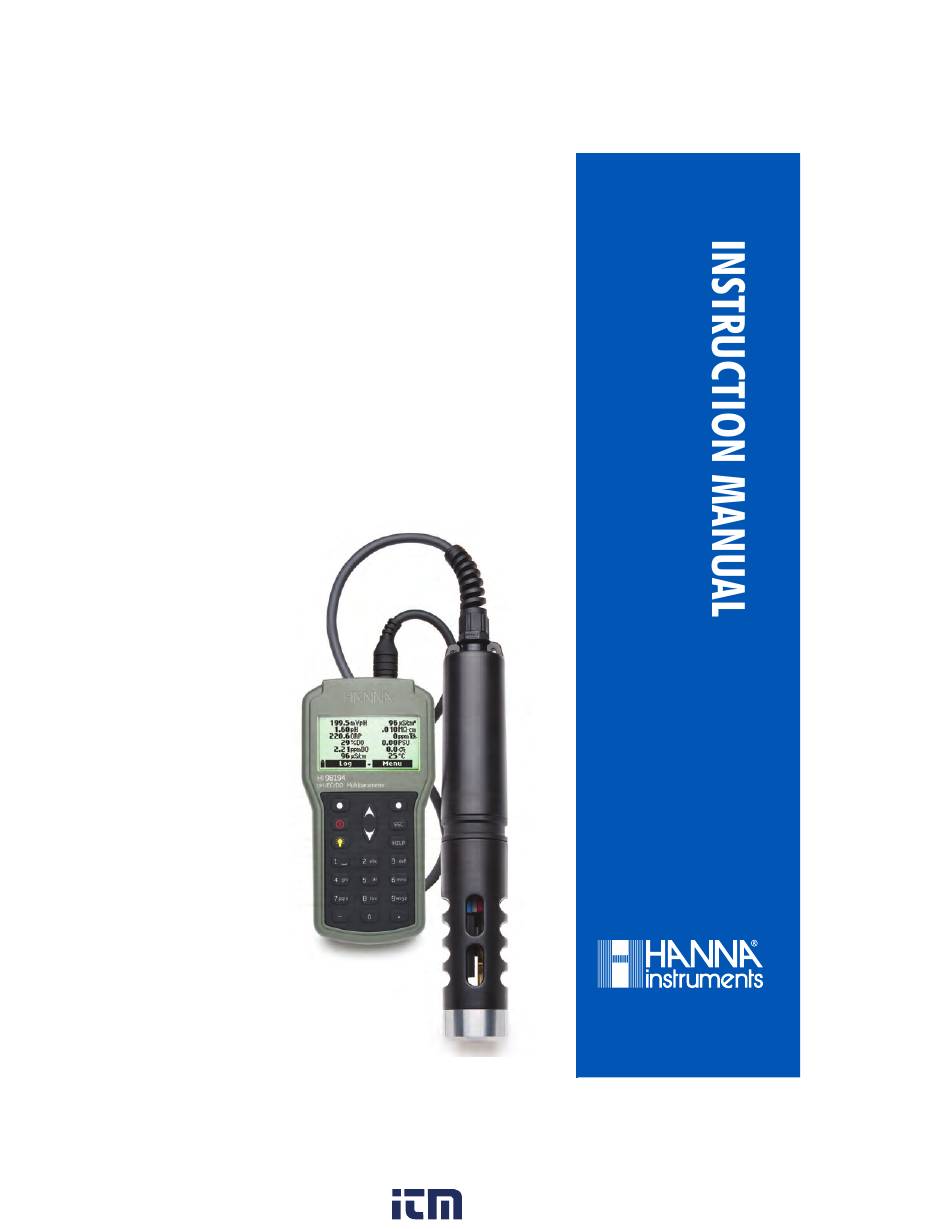

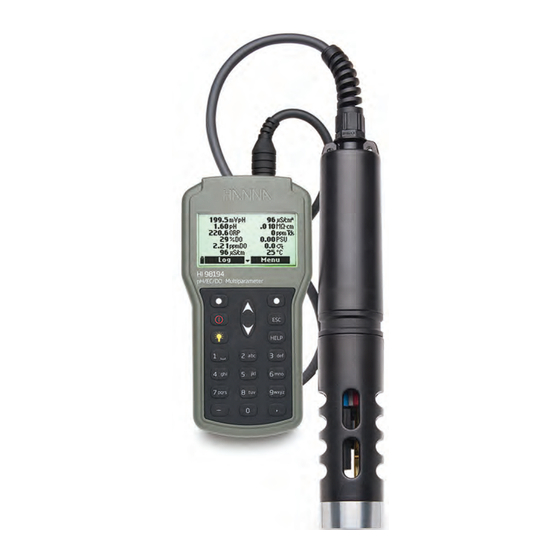

- Page 1 HI98194, HI98195, HI98196 Multiparameter Meters pH/mV, ORP , EC, TDS, Resistivity, Salinity, Seawater σ, Dissolved Oxygen, Atmospheric Pressure and Temperature 1.800.561.8187 information@itm.com www. .com...
- Page 2 Dear Customer, Thank you for choosing a Hanna Instruments product. Please read this instruction manual carefully before using the instrument. This manual will provide you with the necessary information for correct use of the instrument, as well as a precise idea of its versatility.
- Page 3 CHAPTER 1 - INTRODUCTION Preliminary Examination ..................... Model Identification ......................General Description ......................Display and Keypad Description ................... CHAPTER 2 - QUICK START Sensor and Probe Installation ....................Basic Operation ......................... Help Function ........................CHAPTER 3 - SPECIFICATIONS System Specifications ......................Probe Specifications ......................
- Page 4 Quick Calibration ........................ pH Calibration ........................Relative mV Calibration ....................... Dissolved Oxygen Calibration (HI98194, HI98196 only) ............Conductivity Calibration (HI98194, HI98195 only) ..............Temperature Calibration ...................... Atmospheric Pressure Calibration ..................CHAPTER 8 - SYSTEM SETUP Meter Setup ........................Probe Setup ........................
- Page 5 ORP, EC, TDS, Resistivity, Salinity, Seawater σ, Dissolved Oxygen, HI98194 Atmospheric Pressure and Temperature Multiparameter meter with HI7698194 probe. pH/mV, ORP, EC, TDS, Resistivity, Salinity, Seawater σ, Atmospheric Pressure and HI98195 Temperature Multiparameter meter with HI7698195 probe. HI98196 pH/mV, ORP, Dissolved Oxygen, Atmospheric Pressure and Temperature...
- Page 6 • Log‑on‑demand and automatic logging (up to 45,000 samples) on meter for all parameters • Graphical display of logged data • USB interface for PC communication • Auto‑ranging for EC readings (HI98194, HI98195 only) • Good Laboratory Practice feature, the last 5 calibrations are automatically stored • Field‑replaceable sensors with color coded caps •...
- Page 7 1. Graphic LCD 2. Battery level indicator 3. Softkeys On/Off key: turn the meter on and off Lamp key: turn the backlight on and off 6. Alphanumeric keyboard: insert alphanumeric codes 7. / Arrow keys: scroll the displayed options/message 8. HELP key: obtain information about the displayed screen 9.
- Page 8 HI98196 only) • Connector 3 (blue): For EC sensor (HI98194, HI98195 only) • Position the connector key towards the center of the probe, make sure the connector is seated correctly (the sensor will no longer move freely) before tightening the locking threads.
- Page 9 1.800.561.8187 information@itm.com www. .com...
- Page 10 The main operating modes for HI9819X are measurement, logging and setup. The measurement screen can be configured to display a single measurement or up to 12 simultane‑ ous measurements by using the numbers 1‑7 on the keypad. Use the / keys to scroll through the measurements not being displayed.
- Page 11 Chapter 3 - SPECIFICATIONS Temperature ‑5.00 to 55.00 °C; Range 23.00 to 131.00 °F; 268.15 to 328.15 K Resolution 0.01 °C; 0.01 °F; 0.01 K Accuracy ± 0.15 °C; ± 0.27 °F; ±0.15 K Calibration Automatic at 1 custom point pH/mV Range 0.00 to 14.00 pH;...
- Page 12 Depending on resistivity reading Calibration Based on conductivity or salinity calibration TDS (Total Dissolved Solids) (HI98194, HI98195 only) Range 0 to 400000 ppm (mg/L); (the maximum value depends on the TDS factor) Manual: 1 ppm (mg/L); 0.001 ppt (g/L); 0.01 ppt (g/L); 0.1 ppt (g/L);...
- Page 13 ±2% of reading or ±0.01 PSU whichever is greater Calibration Based on conductivity calibration Note: For HI98196 Salinity can be set from 0.00 to 70.00 PSU in setup menu. SEAWATER SIGMA (HI98194, HI98195 only) Range 0.0 to 50.0 σ σ...
- Page 14 METER SPECIFICATIONS Temperature Compensation Automatic from ‑5 to 55 °C (23 to 131 °F) 45,000 records (continuous logging or log‑on‑demand of all Logging Memory parameters) Logging Interval 1 second to 3 hours PC Interface USB (with HI9298194 software) Waterproof Protection IP67 Environment 0 to 50 °C (32 to 122 °F);...
- Page 15 3 for HI7698194 Sensor Inputs 2 for HI7698195 HI7698196 Sample Environment Fresh, brackish, seawater Waterproof protection IP68 Operating Temperature ‑5 to 55 °C Storage Temperature ‑20 to 70 °C Maximum Depth 20 m (66’) Dimensions 342 mm (13.5”), dia=46 mm (1.8”) (without cable) Weight (with 570 g (20.1 oz.)
- Page 16 HI7698194‑0 HI7698194‑1 HI7698194‑2 HI7698194‑3 Description pH/ORP Dissolved Oxygen Measure Type D.O. pH, mV (pH) pH, mV (pH/ORP) Primary Unit (% sat. & conc.) 0.00 to 13.00 pH 0.0 to 200.0 mS/cm Measure 0.00 to 13.00 pH 0.0 to 500.0 % ±600.0 mV 0.0 to 400 mS/cm Range...
- Page 17 Chapter 4 - PROBE INSTALLATION HI7698194‑0 Combination pH sensor features a glass pH sensitive bulb and a silver/silver chloride double junction reference with gelled electrolyte. HI7698194‑1 Combination pH/ORP sensor features a glass sensitive bulb for pH readings, a platinum sensor for redox measurements and a silver/silver chloride double junction reference with gelled electrolyte.
- Page 18 pH Preparation Remove the shipping cap from the pH sensor. If the shipping cap does not contain any liquid, pour HI70300 into shipping cap, place it back on the sensor and soak for at least 1/2 hour before use. If HI70300 is not available, pH 4.01 buffer may be substituted.
- Page 19 EC Sensor Preparation The EC sensor does not need to be soaked or hydrated before use. Use the small brush included in the probe maintenance kit to clean and loosen any debris before using. HI7698194 can support three different sensors: Connector 1: pH, pH/ORP Connector 2: D.O.
- Page 20 HI7698195 support two different sensors: Connector 1: pH, pH/ORP Connector 2: EC HI7698196 support two different sensors: Connector 1: pH, pH/ORP Connector 2: D.O. 1.800.561.8187 information@itm.com www. .com...
- Page 21 For a correct installation: • Grease the sensor O‑Ring with the lubricant found in the probe maintenance kit. DO NOT SUBSTITUTE other grease/lubricants as it may cause the O‑Ring to swell. • Insert the sensor into the correctly color coded opening while positioning the connector key toward the center of the probe.
- Page 22 Chapter 5 - INITIALIZATION AND MEASUREMENT HI9819X are supplied with 4 alkaline, size AA batteries. The battery symbol on the LCD indicates the remaining battery life. The meter has a low battery warning, and when the symbol starts blinking, batteries should be replaced with new ones. When the batteries are discharged the meter will automatically shut off to avoid erroneous readings.
- Page 23 The compatible meter‑probe pairs are: HI98194 ‑ HI7698194; HI98195 ‑ HI7698195; HI98196 ‑ HI7698196. If an incompatible sensor was connected to the probe, “Incompat.sensor!” will be displayed according to the respective connector.
- Page 24 Two active soft keys are found at the bottom of the status screen. • Press Measure to access the measurement mode. • Press Param to access the “Select Parameter” menu. (This screen can also be accessed from the main menu, see Chapter 6 for a detailed description.). •...
- Page 25 1.800.561.8187 information@itm.com www. .com...
- Page 26 The user can select the measurement unit: °C, °F or K. The default value is °C. TDS Unit (HI98194, HI98195 only) The user can select ppm ‑ ppt or mg/L ‑ g/L measurement unit. The default value is ppm - ppt.
- Page 27 1μS/cm, 0.001 mS/cm, 0.01mS/cm, 0.1mS/cm or 1mS/cm: the meter will not autorange, the measurement will be displayed with the selected resolution. The default value is Auto. Absolute EC Resolution Unit (HI98194, HI98195 only) Absolute conductivity displays the conductivity without temperature compensation. See EC resolution for resolution details.
- Page 28 EC Reference Temperature (HI98194, HI98195 only) This value is used for temperature compensated conductivity. All EC measurements will be referenced to the conductivity of a sample at this temperature. Press the softkey to select the desired option; 20 °C or at 25 °C. The default value is 25 °C.
- Page 29 This value should be kept low if you want a fast response. Press Modify to select the desired number of samples to average. This value can be set from 1 to 20 samples. The default value is 1. Note: Each reading takes 1 second, so when logging the first sample will be delayed by a few seconds if averaging is used.
- Page 30 The quick calibration method provides a quick single point calibration for pH, conductivity and dissolved oxygen sensors. HI9828‑0 calibration solution is used for both pH and conductivity. • Fill the calibration beaker 2/3 full with HI9828‑0 calibration solution. • Slowly place the sensors into the solution and dislodge bubbles that may adhere to the sensors. •...
- Page 31 Note: Do not attempt to dry wipe the D.O. sensor as damage to the membrane may occur. • Screw the empty calibration beaker on the probe body. The beaker should not be dry. • Press Accept to close the displayed message. •...
- Page 32 Procedure The measured pH value is displayed, along with the temperature and the buffer value on the second level. If necessary, press the Cal point softkey and use the / keys to select the correct buffer. • Immerse the sensors in the first buffer rinse solution and stir gently. •...
- Page 33 pH Calibration Error Messages HI9819X displays a series of messages if an error has occurred during calibration. If the meter does not accept a pH calibration point, a short message is displayed to indicate the possible error source. The following screens are examples: These are the available messages: •...
- Page 34 470 mV at 25 °C versus the Ag/AgCl reference. The ORP mV versus a SHE would be 675 mV. (add 205 mV to the observed value). Preparation APPENDIX C – “Accessories” lists Hanna Instruments solutions used for ORP calibrations. The calibration should be conducted at temperatures between 20‑26 °C. The sensor should be clean and oil free.
- Page 35 Procedure • From the “Calibration” menu select “Single param. calibration” and then “ORP calibration”. The display shows two options: “Custom ORP” and “Restore factory calib.”. • For a user calibration select “Custom ORP”. • Fill a beaker with an ORP test solution (see APPENDIX C “Accessories”).
- Page 36 The calibration of the D.O. concentration range can only be performed at a single custom point (4 to 50 mg/L). It is recommended to calibrate the D.O. sensor close to the values that will be measured. Choose “DO calibration” from the “Calibration” menu, select the D.O. calibration type using the / keys and press Select to confirm.
- Page 37 Single point Custom % saturation calibration • For a calibration at another known value place sensor and temperature probe into the known solu‑ tion and change the calibration value, press the Cal. point softkey and select the desired point. • To insert a different calibration value, press Cal. point and then Custom. Insert the desired value using the keypad, then press Accept.
- Page 38 • Select the “Conductivity” option and press Select to confirm. • Fill the calibration beaker with a conductivity standard (see APPENDIX C ‑ “Accessories” for choos‑ ing the proper Hanna Instruments standard solution). • Pour additional standard into a second beaker to be used to rinse the sensor.
- Page 39 • Immerse the sensor into the rinse standard by raising and lowering the beaker a few times to ensure that the EC sensor channels are filled with fresh standard. • Place the calibration beaker over the EC sensor and dislodge any trapped bubbles. Screw the beaker into place.
- Page 40 • Place the calibration beaker over the EC sensor and dislodge any trapped bubbles. Screw the beaker into place. Wait for the reading to stabilize. The stability timer will count down and Confirm will appear. • Note the temperature and adjust the conductivity value if needed. •...
- Page 41 Notes: These procedures calibrate the slope value. To calibrate the offset, set the calibration point at 0 μS/cm and repeat the procedure. If the temperature input is not within the acceptable range (0 to 50 °C), the message “Invalid temperature” is displayed.
- Page 42 Place HI9819X in a wind‑free area and choose “Custom pressure” to perform a user calibration or “Restore factory calib”. Note: “Custom pressure” procedure requires a reference barometer. Select the “Atm. pressure” from the “Calibration” menu. • Select the “Custom pressure” option. •...
- Page 43 Date The date and date format are set in this function. Press Modify and set the date using the keypad. Press Accept to save the date. Press Format to change between the available date formats: DD/MM/YYYY, MM/DD/YYYY, YYYY/MM/DD, YYYY‑MM‑DD, MM‑DD‑YYYY, and DD‑MM‑YYYY. The default format is YYYY/MM/DD. Auto Poweroff The Auto Poweroff function is used to save battery life.
- Page 44 Error Beep If enabled, an acoustic signal sounds every time an incorrect key is pressed, or when an error occurs. A checked box indicates this function has been enabled. The default setting is disabled. Decimal Separator The user can select the type of decimal separator: “dot” or “comma”.
- Page 45 A maximum of 14 characters can be used. Language The language used in the meter user interface can be changed. The default language is English. Please contact your local Hanna Instruments Office for currently available languages. Restore Factory Settings This function restores measurement settings to their original factory values.
- Page 46 Chapter 9 - STATUS Useful information regarding the meter, probe (if connected) and GLP calibration data are available for viewing by selecting “Status” from the main menu. Select “Meter Status” to display information related to the battery, logging, internal temperature, password, Meter ID, serial number and firmware version.
- Page 47 • Press ESC to return to the “GLP” menu. Notes: A “C” label near the buffer value indicates a custom point, while an “H” indicates a Hanna Instruments standard buffer value. If a quick calibration was performed, the buffer values are replaced with the “Quick calibration”...
- Page 48 5 calibrations. Notes: A “C” label near the calibration point indicates a custom point, while an “H” indicates a Hanna Instruments standard value. When the % D.O. range is calibrated, also the D.O. concentration range is calibrated, and vice versa.
- Page 49 Temperature • From the “GLP” menu select the “Temperature”option. • Data regarding the last temperature calibration will be displayed: calibrated point, time and date. • Use the keys to scroll through the stored data for the last 5 calibrations. Notes: If no user temperature calibration has been performed or if calibration was cleared using the “Restore factory calib.”...
- Page 50 From measurement mode, press Log to access the log menu. • The data logged on the meter are organized by lots. Up to 45,000 complete records can be stored in up to 100 lots. Each lot can store log‑on‑demand records and/or continuous records with different parameter configurations.
- Page 51 One Sample On Meter Use this option to log one set of enabled measurement parameters to the meter memory. • If there are no lots saved on the meter, press New to create a new lot. Use the keypad to enter the desired lot name and press Accept to confirm.
- Page 52 • Select “Meter log recall” to view logs that are stored on the meter. The meter will show the number of available lots. Select “Lots” to view or delete individual lots. • Use the / keys to select the desired lot and then press View.
- Page 53 • Use the / keys to move the cursor in the graph and highlight a sample. The sample data are displayed below the graph. • Press ESC to return to the parameter list. • Press ESC again to return to the menu. Note: The number of lot samples that can be plotted is limited by the display resolution.
- Page 54 Chapter 11 - PC CONNECTION MODE The logged data from a probe or meter can be transferred to a PC using the HI9298194 Windows compatible application software. HI9298194 offers a variety of features and on‑line‑help is ® available. HI9298194 allows data to be imported into most spreadsheet programs (e.g. Excel ©...
- Page 55 Meter to PC data a. Select parameter units b. Select Meter from toolbar c. Select Lot 1.800.561.8187 information@itm.com www. .com...
- Page 56 Restart the meter to verify this is a true meter error. If the problem persists, contact your local Hanna Instruments Office. • ‘’Dead meter battery!’’: This message appears if the me‑...
- Page 57 HI7698292 probe maintenance kit includes HI7042S (electrolyte solution for D.O. sensor), spare membranes with O‑Rings for D.O. sensor, a small brush for cleaning EC , O‑Rings for sensor connectors and a syringe with grease to lubricate these O‑Rings. General Maintenance •...
- Page 58 If any deposit scales the sensor, gently brush the sensor surface with the supplied brush, while paying attention to not damage the plastic body. Do not use the brush on the membrane. EC Sensor Maintenance (HI98195, HI98196 only) • After every series of measurements, rinse the probe with tap water.
- Page 59 The Hanna Instruments HI769819X have been designed for a variety of water quality measurements both in situ or in active deployments in urban or natural waters. HI9819X systems may be used for discrete spot sampling with log on demand function or, continuous monitoring and logging.
- Page 60 The probe is suitable for measurements in a flow cell. Pumping water to a flow‑through monitoring station has obvious pros and cons. Typically a shelter is required to secure a pump, and flow chamber. A power requirement, shelter, pump maintenance and higher installation cost need to be considered. Freeze protection, security, and convenience of calibration and possibility of adding multiple mea‑...
- Page 61 PROBES packed in carton box, without sensors or protective shield. Code Description HI7698194/4 HI7698194 probe with 4 m (13.1’) cable. HI7698194/10 HI7698194 probe with 10 m (33.0’) cable HI7698194/20 HI7698194 probe with 20 m (65.6’) cable HI7698194/40 HI7698194 probe with 40 m (131.2’) cable HI7698195/4 HI7698195 probe with 4 m (13.1’) cable...
- Page 62 D.O. sensors. HI7698194/40 HI98194 meter, probe with 40 m (131.2’) cable, with pH/ORP, EC, D.O. sensors. HI7698195 HI98195 meter, probe with 4 m (13.1’) cable, with pH/ORP, EC sensors. HI7698195/10 HI98195 meter, probe with 10 m (33.0’) cable, with pH/ORP, EC sensors.
- Page 63 SENSORS Code Description HI7698194-0 pH sensor HI7698194-1 pH/ORP sensor HI7698194-2 Dissolved Oxygen sensor HI7698194-3 EC sensor CABLES, CONNECTORS, ACCESSORIES Code Description HI7698290 Short calibration beaker HI7698295 Short protective shield HI7698297 Long, quick release flow cell HI7698292 Probe maintenance kit with HI7042S (electrolyte solution for D.O.
- Page 64 QUICK CALIBRATION SOLUTIONS Code Description HI9828-20 Quick calibration solution, 230 mL HI9828-25 Quick calibration solution, 500 mL HI9828-27 Quick calibration solution, 1 gal. pH BUFFERS HI5004 pH 4.01 buffer solution, 500 mL HI5005 pH 5.00 buffer solution, 500 mL HI5006 pH 6.00 buffer solution, 500 mL HI5068 pH 6.86 buffer solution, 500 mL...
- Page 65 ORP SOLUTIONS Code Description HI7021L ORP test solution, 240 mV @ 25 °C, 500 mL HI7022L ORP test solution, 470 mV @ 25 °C, 500 mL HI7091L Reducing pretreatment solution HI7092L Oxidizing pretreatment solution, 500 mL pH/ORP MAINTENANCE SOLUTIONS Code Description HI70670L pH/ORP cleaning solution for salt deposits, 500 mL...
- Page 66 CONDUCTIVITY STANDARD SOLUTIONS Code Description HI7030L 12880 µS/cm calibration solution, 500 mL HI7031L 1413 µS/cm calibration solution, 500 mL HI7033L 84 µS/cm calibration solution, 500 mL HI7034L 80000 µS/cm calibration solution, 500 mL HI7035L 111800 µS/cm calibration solution, 500 mL HI7039L 5000 µS/cm calibration solution, 500 mL MAN98194 06/18...
- Page 67 When shipping any instrument, make sure it is properly packed for complete protection. Hanna Instruments reserves the right to modify the design, construction or appearance of its products without advance notice.
