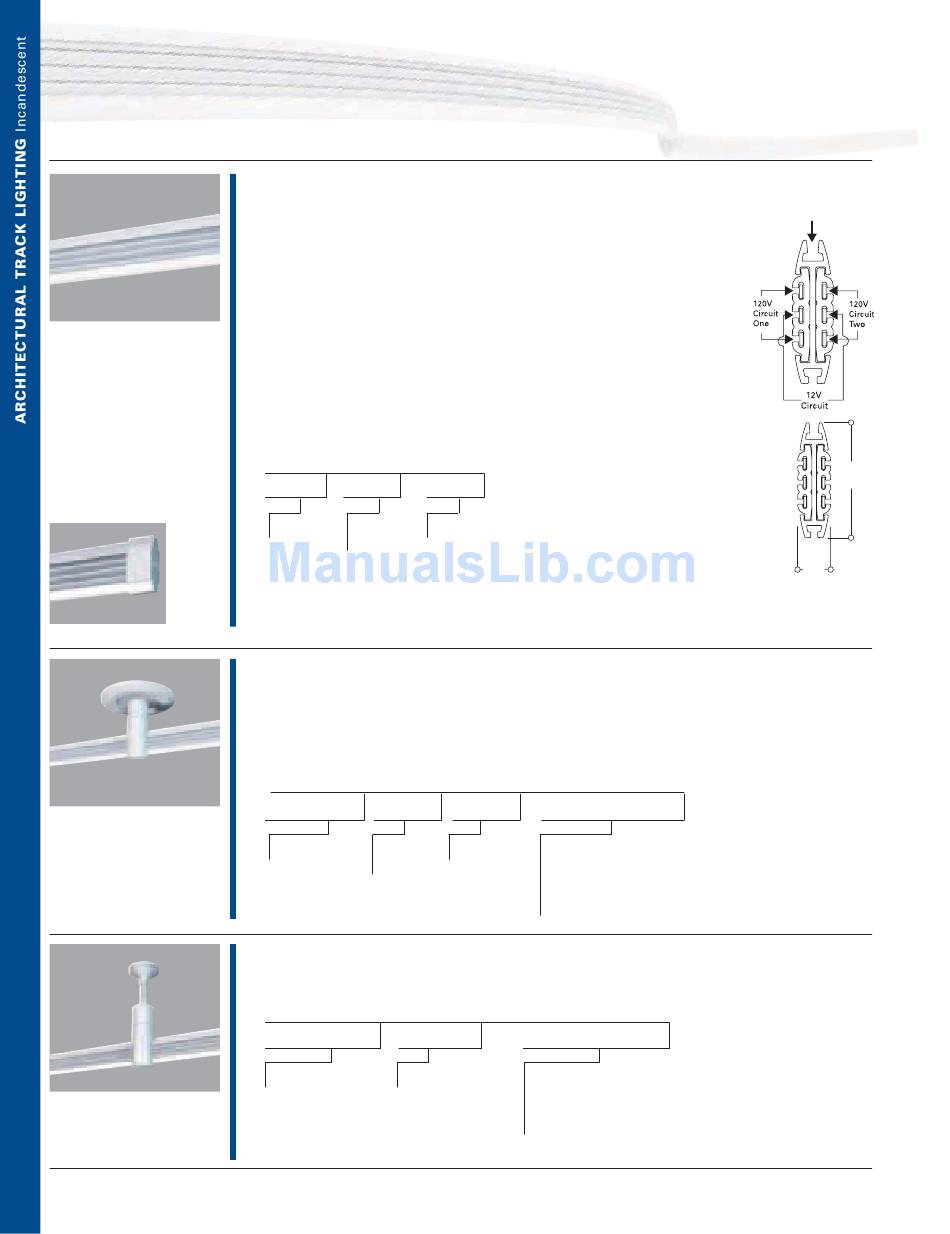

Cooper Lighting LF Specification Sheet

HALO ®
• ARCHITECTURAL FLEXIBLE TRACK
LF
Flexible Track
LF601
Power Feed
LF602
Track Support
COOPER LIGHTING
346
LF FLEXIBLE TRACK
Structural
Extruded aluminum I-beam 0.060" nomi-
nal wall thickness. Flexible Track is 1-
1/2" high by 7/16" wide.
120V and 12V Conductors
Nickel-plated solid copper bus bars
(cross section equivalent to #10AWG
wire) encased in extruded CPVC insula-
tors.
Insulating Liner
Extruded polyvinyl insulators.
Grounding
Grounding is accomplished through a
grounding channel in the track. The
track maintains continuity to the track
connectors, lampholders and building"s
grounding system through this channel.
LF
Track Length Finish
LF=Flexible 4=4" AH=Aluminum Haze
Track 8=8"
LF612AH Dead End
Description: Finishes end of track. Aluminum Haze finish. (two included with
each track section)
LF601AH 120V Feed with Stem/Canopy
Description: 120V Power feed with canopy and stem mounts on stan-
dard junction box (supplied with feed wires)
Feeds one 120V circuit only.
LF60112AH 12V Feed with Stem/Canopy
Description: 12V Power feed with canopy and stem. mounts on standard
junction box (supplied with feed wires).
Remote 12V transformer required to energize.
LF601
Accessory Voltage
LF601=Flexible Blank=120V
Track 12=12 Volt
LF602AH Clam Shell Track Support Stem with Small Canopy
Description: Rigid stem with clam shell attachment supports the track.
LF602 AH
Accessory Finish
LF602=Flexible AH=Aluminum
Track Haze
Polarity
Track is asymmetric in nature and
accepts connectors and lampholders in
one direction only to maintain polarity.
Details
• Track ships with two dead ends. Track
minimum bend radius is
24 inches.
• Separate power feed is required for
each circuit to be energized
• A track support is required every four
feet. More Supports may be required
depending on the complexity of the
"curved" design layout.
• It is recommended to have a track sup-
port at the apex of every curve.
• A track support is required within six
inches of any non stem supported
connector.
• Track lengths and stems can be cut to
size in field.
AH
AH
Finish Length
AH=Aluminum (Ceiling to bottom of track)
Haze
4=4" 24=24"
6=6" 36=36"
12=12" 48=48"
18=18" 96=96"
4" not for use in Canada
Length
(Ceiling to bottom of track)
6=6" 24=24"
12=12" 36=36"
18=18" 48=48"
96=96"
Dove Tail
Support Slot
LINE LINE
NEUTRAL NEUTRAL
1-1/2"
[38mm]
7/16"
[11mm]
(non-conductive)
