- Page 1 PowerLINE 1000, 1010 and 1200 Adapters User Manual Models PL1000, PL1000v2 PL1010, PL1010v2 PLP1000 PLW1000, PLW1000v2 PLW1010, PLW1010v2 PL1200 PLP1200 January 2017 202-11566-03 350 E. Plumeria Drive San Jose, CA 95134...
- Page 2 We recommend that you use only official NETGEAR support resources. Trademarks NETGEAR, Inc., NETGEAR and the NETGEAR Logo are trademarks of NETGEAR, Inc. Any non-NETGEAR trademarks are used for reference purposes only. Compliance For current EU Declaration of conformity, visit http://support.netgear.com/app/answers/detail/a_id/11621.
-
Page 3: Table Of Contents
Contents Chapter 1 Your PowerLINE Adapter PL1000 and PL1010....................5 PL1000v2 and PL1010v2..................6 PLP1000........................7 PLW1000 and PLW1010..................8 PLW1000v2 and PLW1010v2................9 PL1200.........................10 PLP1200......................11 LED Descriptions....................12 Button Descriptions....................13 Ethernet Port......................13 Extra Outlet......................13 Adapter Label.......................13 Chapter 2 PowerLINE Networks How the PowerLINE Adapter Fits Into Your Network..........15 Set Up a New PowerLINE Network..............16 Connect to the PowerLINE Access Point.............18 Use WPS to Connect to Your Network (PLW Models)..........18... -
Page 4: Chapter 1 Your Powerline Adapter
• PLW1000v2 and PLW1010v2 • PL1200 • PLP1200 • LED Descriptions • Button Descriptions • Ethernet Port • Extra Outlet • Adapter Label For more information about the topics covered in this manual, visit the NETGEAR support website at netgear.com/support. -
Page 5: Pl1000 And Pl1010

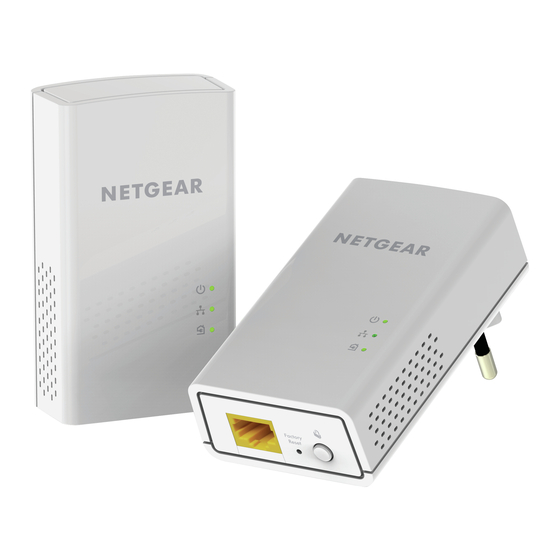

PowerLINE PL1000 and PL1010 The hardware features of the PowerLINE PL1000 and PL1010 adapters are shown in the following figure. Note that adapters vary by region. Your adapter might look different. Figure 1. Hardware features Power LED Ethernet LED Pick A Plug LED Ethernet port Factory Reset button Security button... -
Page 6: Pl1000V2 And Pl1010V2
PowerLINE PL1000v2 and PL1010v2 The hardware features of the PowerLINE PL1000v2 and PL1010v2 adapters are shown in the following figure. Note that adapters vary by region. Your adapter might look different. Figure 2. Hardware features Power LED Ethernet LED Pick A Plug LED Ethernet port Factory Reset button Security button... -
Page 7: Plp1000
PowerLINE PLP1000 The hardware features of the PowerLINE PLP1000 adapter are shown in the following figure. Note that adapters vary by region. Your adapter might look different. Figure 3. Hardware features Power LED Ethernet LED Pick A Plug LED Ethernet port Factory Reset button Security button Your PowerLINE Adapter... -
Page 8: Plw1000 And Plw1010
PowerLINE PLW1000 and PLW1010 The hardware features of the PowerLINE PLW1000 and PLW1010 adapters are shown in the following figure. Note that adapters vary by region. Your adapter might look different. Figure 4. Hardware features Power LED Ethernet LED Pick A Plug LED Ethernet port Factory Reset button Security button... -
Page 9: Plw1000V2 And Plw1010V2
PowerLINE PLW1000v2 and PLW1010v2 The hardware features of the PowerLINE PLW1000v2 and PLW1010v2 adapters are shown in the following figure. Note that adapters vary by region. Your adapter might look different. Figure 5. Hardware features Power LED Ethernet LED Pick A Plug LED Ethernet port Factory Reset button Security button... -
Page 10: Pl1200
PowerLINE PL1200 The hardware features of the PowerLINE PL1200 adapter are shown in the following figure. Note that adapters vary by region. Your adapter might look different. Figure 6. Hardware features Power LED Ethernet LED Pick A Plug LED Ethernet port Factory Reset button Security button Your PowerLINE Adapter... -
Page 11: Plp1200
PowerLINE PLP1200 The hardware features of the PowerLINE PLP1200 adapter are shown in the following figure. Note that adapters vary by region. Your adapter might look different. Figure 7. Hardware features Power LED Ethernet LED Pick A Plug LED Ethernet port Factory Reset button Security button Your PowerLINE Adapter... -
Page 12: Led Descriptions
PowerLINE LED Descriptions The LEDs indicate the status of your PowerLINE adapter. Table 1. LED descriptions Item Description Power LED Solid green. The electrical power is on. Solid amber. The adapter is in power saving mode. (Power saving mode is not supported on model PLW1000.) Blinking green. -
Page 13: Button Descriptions
PowerLINE Button Descriptions Use the buttons to restore the adapter to the factory configuration and to create a secure PowerLINE network. Table 2. Button descriptions Button or Switch Description Factory Reset Press the Factory Reset button for one second, and then release it to return the PowerLINE adapter to its factory default settings. -
Page 14: Chapter 2 Powerline Networks
PowerLINE Networks This chapter describes the setup and configuration of PowerLINE networks. The chapter contains the following sections: • How the PowerLINE Adapter Fits Into Your Network • Set Up a New PowerLINE Network • Connect to the PowerLINE Access Point •... -
Page 15: How The Powerline Adapter Fits Into Your Network
PowerLINE How the PowerLINE Adapter Fits Into Your Network You can use one or more PowerLINE adapters to extend Internet access throughout your home. A PowerLINE network consists of two or more compatible PowerLINE devices that communicate with each other using your electrical power lines. One of the PowerLINE devices is connected with an Ethernet cable to your router so that the PowerLINE network is linked to your local area network (LAN). -
Page 16: Set Up A New Powerline Network
PowerLINE For best performance, follow these guidelines when you plan the location of your PowerLINE devices: • Use an electrical outlet that is not controlled by a wall switch to avoid accidentally turning off the power to the outlet. • Avoid plugging PowerLINE products into electrical outlets that are located near appliances that consume a lot of power, such as washers, dryers, or refrigerators. - Page 17 PowerLINE Connect the device to the LAN port on your router or gateway using an Ethernet cable. Plug the second PowerLINE device into a wall outlet where you want to add Internet access. Use the Ethernet cable that came with your adapter to connect the PowerLINE device to an Ethernet port on a computer, game console, Blu-ray player, or other peripheral device.
-
Page 18: Connect To The Powerline Access Point
PowerLINE Connect to the PowerLINE Access Point You can connect your WiFi devices (laptop, tablet, or smartphone) to the PowerLINE access point using WPS or the SSID and WiFi key. To connect to the PowerLINE access point: On your computer or WiFi device (tablet, smartphone) use the adapter's normal method of connecting to a wireless network. -
Page 19: Add An Adapter To An Existing Powerline Network
PowerLINE Add an Adapter to an Existing PowerLINE Network You can add additional adapters to an existing PowerLINE network. To add an adapter to a PowerLINE network: Plug the adapter into a wall outlet where you want to add Internet access. (Optional) Use the Ethernet cable that came with your adapter to connect the adapter to an Ethernet port on a computer, game console, Blu-ray player, or other peripheral device. -
Page 20: About Powerline Network Security
PowerLINE indicates a slow link rate. In this case, move the PowerLINE device to another electrical outlet with a faster connection. About PowerLINE Network Security A PowerLINE network consists of two or more PowerLINE devices using the same network encryption key. By setting up security, you configure your PowerLINE network to use a private key instead of the default key. - Page 21 PowerLINE When the Power LEDs stop blinking and the Pick A Plug LEDs are lit solid green, the two devices can communicate over the PowerLINE network in a secure way. PowerLINE Networks...
-
Page 22: Chapter 3 Troubleshooting
Pick A Plug LED Is Off, Amber, or Red on page 23. If the Ethernet LED is not lit, see Ethernet LED Is Off on page 24. If you do not find the solution here, visit the NETGEAR support site at support.netgear.com for product and contact information. -
Page 23: Leds Are Off When The Powerline Device Is Plugged In
PowerLINE LEDs Are Off When the PowerLINE Device Is Plugged In The common reason the LEDs are off is that power is not being provided to the device. Make sure that power is supplied to the electrical outlet. Power LED Is Off If the Power LED is off, the adapter is not receiving electrical power. -
Page 24: Ethernet Led Is Off
PowerLINE • If the problem occurred after you set the encryption key, reset each device to its factory default settings. Then try setting the encryption key again. • If the LED is amber or red, move the PowerLINE device to another electrical outlet with a faster connection. -
Page 25: Appendix A Technical Specifications And Safety Information
Technical Specifications and Safety Information This appendix provides technical specifications and safety information for PowerLINE adapters. • PowerLINE PL1000 and PL1010 Technical Specifications • PowerLINE PL1000v2 and PL1010v2 Technical Specifications • PowerLINE PLP1000 Technical Specifications • PowerLINE PLW1000 and PLW1010 Technical Specifications •... -
Page 26: Powerline Pl1000 And Pl1010 Technical Specifications
PowerLINE PowerLINE PL1000 and PL1010 Technical Specifications The PL1000 and PL1010 adapters meet the technical specifications defined in the following table. Table 3. Technical specifications Feature Specification Data and routing protocols IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-T), IEEE 802.3ab (1000BASE-T) AC input 100–240V, 0.1A (max.) Socket-outlet rating (max. -
Page 27: Powerline Pl1000V2 And Pl1010V2 Technical Specifications
PowerLINE PowerLINE PL1000v2 and PL1010v2 Technical Specifications The PL1000v2 and PL1010v2 adapter meets the technical specifications defined in the following table. Table 4. Technical specifications Feature Specification Data and routing protocols IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-T), IEEE 802.3ab (1000BASE-T) AC input 100–240V, 0.1A (max.) Socket-outlet rating (max. -
Page 28: Powerline Plp1000 Technical Specifications
PowerLINE PowerLINE PLP1000 Technical Specifications The PLP1000 adapter meets the technical specifications defined in the following table. Table 5. Technical specifications Feature Specification Data and routing protocols IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-T), IEEE 802.3ab (1000BASE-T) AC input 100–240V, 0.2A (max.) Socket-outlet rating (max. -
Page 29: Powerline Plw1000 And Plw1010 Technical Specifications
PowerLINE PowerLINE PLW1000 and PLW1010 Technical Specifications The PLW1000 and PLW1010 adapters meet the technical specifications defined in the following table. Table 6. Technical specifications Feature Specification Data and routing protocols IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-T), IEEE 802.3ab (1000BASE-T) AC input 100–240V, 0.2A (max.) Socket-outlet rating (max. -
Page 30: Powerline Plw1000V2 And Plw1010V2 Technical Specifications
PowerLINE PowerLINE PLW1000v2 and PLW1010v2 Technical Specifications The PLW1000v2 and PLW1010v2 adapters meet the technical specifications defined in the following table. Table 7. Technical specifications Feature Specification Data and routing protocols IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-T), IEEE 802.3ab (1000BASE-T) AC input 100–240V, 0.2A (max.) Socket-outlet rating (max. -
Page 31: Powerline Pl1200 Technical Specifications
PowerLINE PowerLINE PL1200 Technical Specifications The PL1200 adapter meets the technical specifications defined in the following table. Table 8. Technical specifications Feature Specification Data and routing protocols IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-T), IEEE 802.3ab (1000BASE-T) AC input 100–240V, 0.2A (max.) Socket-outlet rating (max. -
Page 32: Powerline Plp1200 Technical Specifications
PowerLINE PowerLINE PLP1200 Technical Specifications The PLP1200 adapter meets the technical specifications defined in the following table. Table 9. Technical specifications Feature Specification Data and routing protocols IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-T), IEEE 802.3ab (1000BASE-T) AC input 100–240V, 0.2A (max.) Socket-outlet rating (max. -
Page 33: Safety Information
PowerLINE Safety Information Follow these safety guidelines to ensure your own personal safety and to help protect your system from potential damage: • For national approvals (approval schemes other than CB), relevant national standards for plug, socket-outlet, and direct plug-in units (for example, US) shall also be consulted while you are testing and approving such products according to the national standards. - Page 34 PowerLINE • The peripheral power cables are equipped with three-prong plugs to help ensure proper grounding. Do not use adapter plugs or remove the grounding prong from a cable. • Observe extension cable and power strip ratings. Make sure that the total ampere rating of all products plugged into the extension cable or power strip does not exceed 80 percent of the ampere ratings limit for the extension cable or power strip.
