Cooper Lighting IRIS E5LUNA Specification Sheet

IRIS ®
5" WALL WASH ELEMENTS
5" SHOWER/ LENSED ELEMENTS
ELEMENT OPTIONS
Standard Cone Finishes:
C =Clear Specular Alzak
H =(Haze) Clear Semi-Specular Alzak
G =Champagne Gold Specular Alzak
B = Specular Black Alzak
WMH =(Warm Haze)Semi-specular Alzak with a
hint of gold to add visual warmth
W = Gloss White Paint
MW = Matte White
Special Cone Finishes:
K (Cognac)= Warm copper color, specular Alzak
KH (Cognac Haze)= Cognac, semi-specular Alzak
CC (Chocolate)= A very warm color similar to
architectural bronze, specular Alzak
CCH (Chocolate Haze)= Chocolate, semi-specular Alzak
BU (Blush)= Light pink, specular Alzak finish
BUH (Blush Haze)= Blush, semi-specular Alzak
GP (Graphite)= Gunmetal grey, specular Alzak
GPH (Graphite Haze)= Graphite, semi-specular Alzak
PN (Pine)=Rich green, specular Alzak finish
PNH (Pine Haze)= Pine, semi-specular Alzak
SK (Sky)= Light blue, specular Alzak finish
SKH (Sky Haze)= Sky, semi-specular Alzak
Example:
E5T
Cone Flange
Finish Type
Finish
724
COOPER LIGHTING

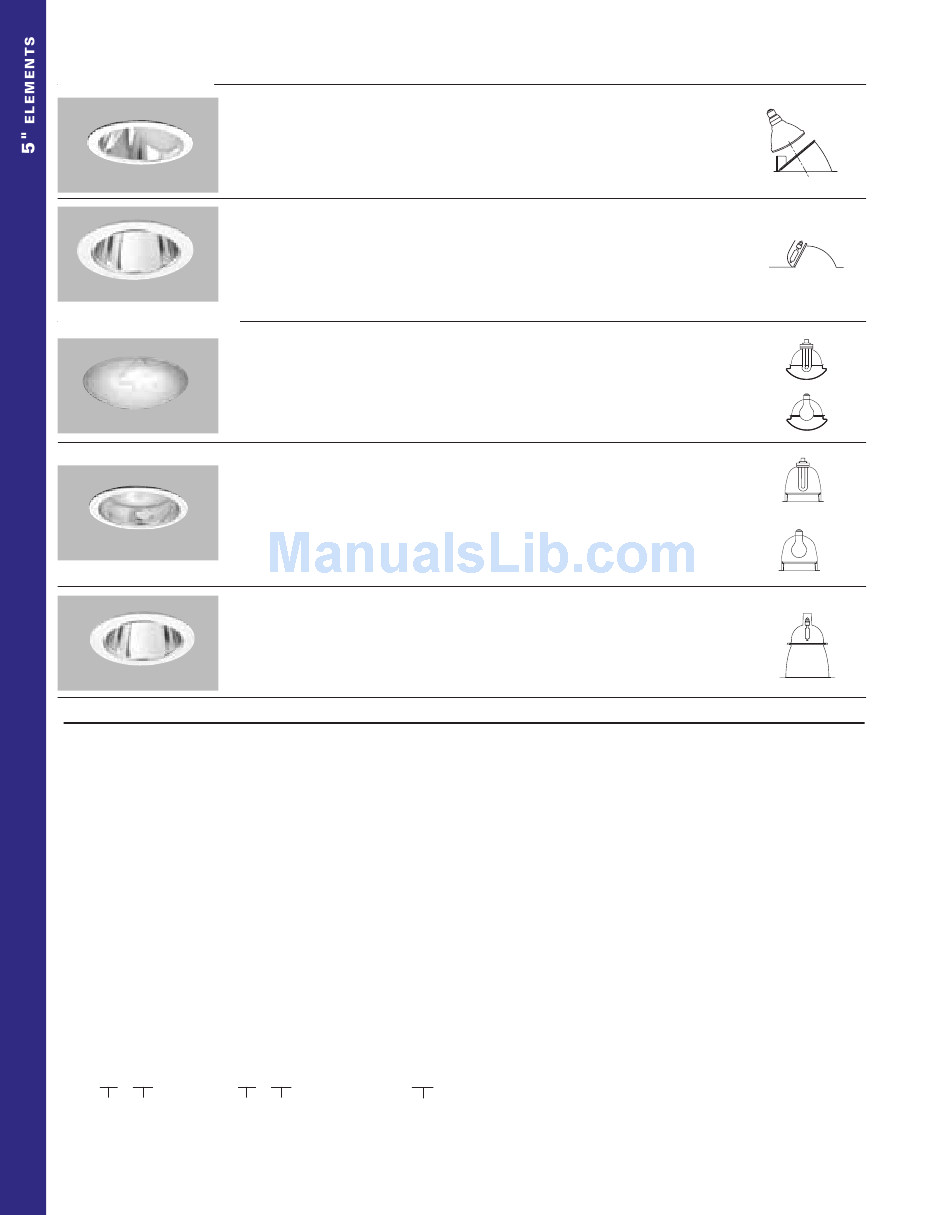

E 5 L W W L e n s e d W a l l W a s h
Add Standard or Special Cone Color and Flange style (see p.724)
Module/Lamp: P5 with M120 Module:
PN5 with M120 Module:
Dimensions: OD: 6 1/4" (159mm) Aperture: 5 1/4" (133mm)
E 5 Q T 4 W W W i d e S p r e a d L e n s e d W a l l W a s h
Add Standard or Special Cone Color and Flange style (see p.724)
Module/Lamp: P5 with MQT4 Module:
PN5 with MQT4 Module:
Dimensions: OD: 6 1/4" (159mm) Aperture: 5 1/4" (133mm)
E 5 L U N A W e t L o c a t i o n B l o w n V e i n e d G l a s s
Module/Lamp: P5 with M32 Module:
PN5 with M32 Module:
A dimmable Lutron Ballast or Emergency version is available for compact fluorescent units
P5 with M120 Module:
PN5 with M120 Module:
Dimensions: OD: 7 1/4" (184mm)
E 5 S R W e t L o c a t i o n R e g r e s s e d L e n s
Add Standard or Special Cone Color and Flange style (see p.724)
Module/Lamp: P5 with M32 Module:
PN5 with M32 Module:
A dimmable Lutron Ballast or Emergency version is available for compact fluorescent units
P5 with M120 Module:
PN5 with M120 Module:
Dimensions: OD: 6 1/4" (159mm) Aperture: 5 1/4" (133mm)
E 5 Q T 4 W e t L o c a t i o n 5 0 ° C u t o f f R e f l e c t o r
Add Standard or Special Cone Color and Flange style (see p.724)
Module/Lamp: P5 with MQT4 Module:
PN5 with MQT4 Module:
Dimensions:
Baffle Options
BB=Black Baffle
WB = White Baffle
Example:
Example:
E5PIN
E5A19
Baffle Flange Type and
Finish Finish (self flange
not available)
75W PAR30 Short Neck Only
75W PAR30 Short Neck Only
Q75T4/MC
Q100T4/MC
32W Triple Compact Fluorescent
32W Triple Compact Fluorescent
100W A19, 75W BT15
100W A19, 75W BT15
26W Triple Compact Fluorescent
32W Triple Compact Fluorescent
75W A19, 75W BT15, 60W MB19
100W A19, 75W BT15, 75W MB19
Q100T4/MC
Q100T4/MC
OD: 6 1/4" (159mm) Aperture: 5 1/4" (133mm)
Flange Type and
Finish (self flange
not available)
Flanges
Blank = Matte white die-cast flange ring, removable
for field painting
RAW = Die cast trim ring, mill finish
SF = Self Flange (flange color matches reflector cone)
SFWF = Self Flange painted Matte White
E5PIN
Blank = Matte White painted die-cast trim ring with
black oculus (when present)
W = Matte White painted die-cast trim ring with white
oculus (when present)
