Plantronics DuoPro H151/N Quick Start Manual

DUOPRO
Adjustable Headband
for over-the-head headsets
1
Cable Stabilizer Notch
Pivot Pin Holder
reverses direction
for left ear use.
Identify the
Components
Earloop
for over-the-ear headset,
tail adjusts for comfort.
Headset Receiver,
outside view setup for
right ear
Cable
to Quick
Disconnect™
Pivot Pin
Headset Receiver,
inside view
Replaceable
Ear Cushion
5
Additional Features
Clothing Clip
The clothing clip keeps the headset
properly seated and free from the
cord's weight. Attach the
clothing clip at a
comfortable level.
Quick Disconnect
™
Connector
This feature allows you
to place a call on hold
and move away from
the phone without
removing the headset.
When you separate
the Quick Disconnect,
you place an ongoing
conversation on hold.
Before using your headset, join
the Quick Disconnect to the mating
connector of the modular adapter cable.
To put your call on hold, grasp Quick
Disconnect, as shown, and pull straight
apart. To resume your conversation,
reconnect the two halves.
™
FAMILY OF HEADSETS
Stabilizer Bars
Voice Tube Boom
Noise -Canceling
Microphone Boom
4
Adjusting the headset
Over-the-ear:
To put on
headset, move
earloop away
from receiver and
place earloop over
your ear. The over-the-ear
configuration allows further
control by adjusting the
flexible earloop as shown.
Over-the-head: Adjust
headband length so
stabilizer bars rest above
your ears. If necessary, to
increase or decrease tension
on your head, bend the
metal part of headband
inward or outward for
desired comfort. Push
receiver close to your ear until
it feels comfortable and you
can hear the sound from the telephone clearly.
In both configurations: The end of the boom should
be placed a distance of two fingers from the corner
of your mouth.
2

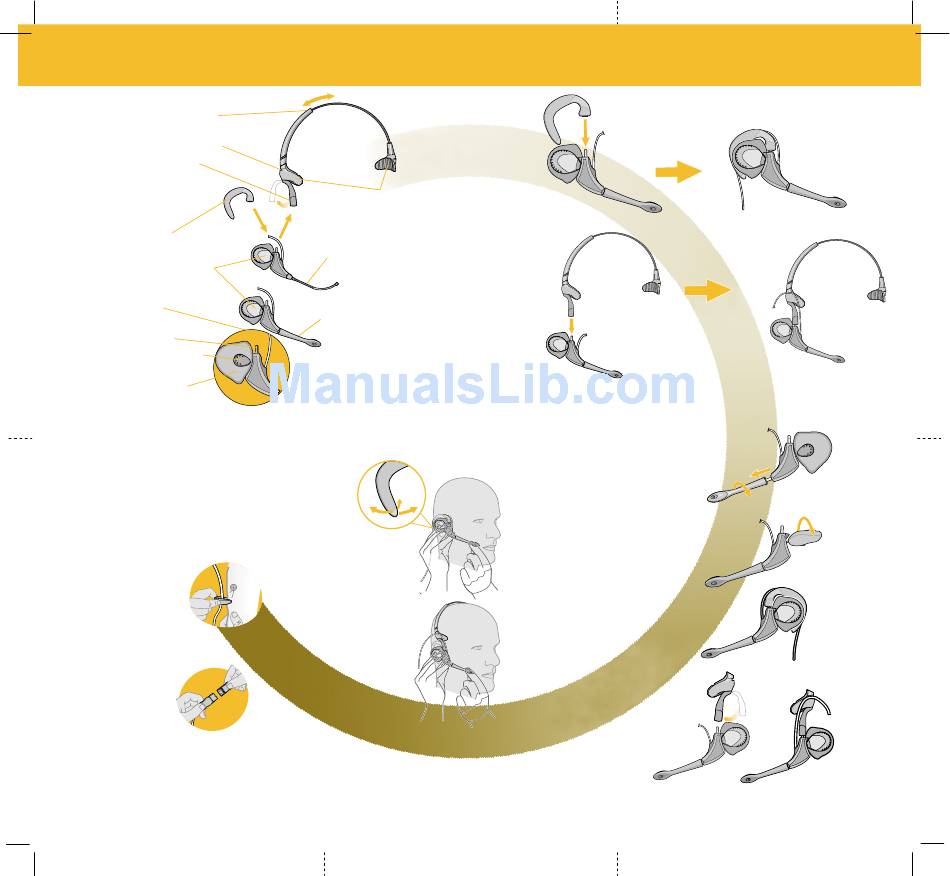

The Convertible Process
(171 and 171N models only)
Assembling the Over-the-Head Headset
3
Left Ear Conversion
3.1 To convert the headset for
the left ear, first pull out the
front part of the microphone
boom (on noise-canceling
models) then rotate it
downward facing the opposite
direction. Voice tubes simply
rotate.
3.2 Then rotate the headset
receiver downward to the
opposite direction. It only
rotates in one direction.
3.3 For over-the-ear headsets,
place earloop on opposite side
of headset receiver. For over-
the-head headsets, remove
cable from cable notch, rotate
the pivot pin holder as shown
and replace cable in cable
notch.
Assembling the Over-the-Ear Headset
3.1
3.3
