Cooper Lighting Interior Wall Luminaire 612-LB Specification Sheet

D E S C R I P T I O N

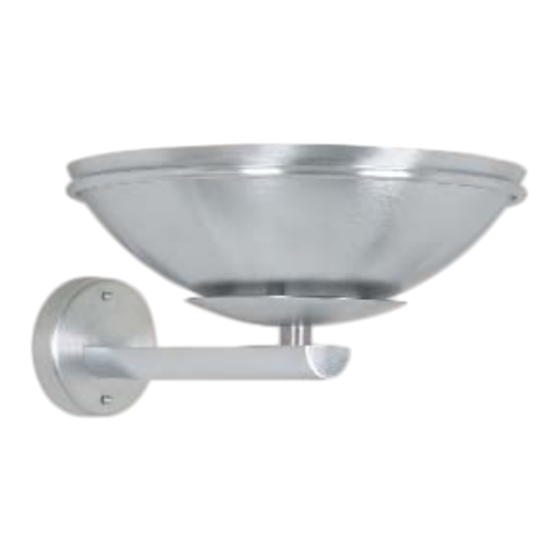

612-LB features a Luminous Bowl and the 612-SM features a Solid
Bowl with an arm mount bracket.
S P E C I F I C AT I O N F E AT U R E S
M a te ri a l
Painted or plated cold-rolled
steel base metal. Matte white
acrylic bowl (612-LB). Optional
hexcel louver. Natural aluminum,
solid brass, stainless steel or
painted steel trim ring.
F i n i s h
Standard: Matte White (MW) or
Matte Black (MB).
Premium: Satin Chrome (SC),
Polished Chrome (PC), Oxidized
Brass (OBRS), Satin Brass (SB),
Polished Brass, (PB) Satin
Copper (SCP), Polished Copper
(PCP), Satin Nickel (SN), Polished
Nickel (PN), Lacquered Satin
Chrome (SCL), Lacquered Satin
Nickel (SNL), (NA) Natural
Aluminum, (SAL) Lacquered
Satin Aluminum or Custom Color
(CC).
O p t i c s
Asymmetric forward-throw
reflector (300W Halogen Lamp
only). Refer to
www.shaperlighting.com for
complete photometrics.
O R D E R I N G I N F O R M AT I O N
Sample Number: 612-SM-CFL/2/26-277V-PCP
Series Lamp
= Luminous Bowl CFL/2/13
612-LB
w/ Arm Mount Bracket
CFL/2/26
INC/2/60
= Solid Bowl
612-SM
HAL/1/300
w/ Arm Mount Bracket
Notes:
1
612-SM only.
2
Available with CFL only.
3
Not available in 13W.
4
Consult the factory for available options.
5
Supplied by others.
6
Luminous Bowl only.
B a l l a s t
Integral electronic HPF , multi-volt
120/277V (347V Canada),
thermally protected with end-of-
life circuitry to accommodate the
specified lamp wattage.
L a m p / S o cke t
Two (2) 13W (2GX7) 4-pin low
wattage CFL lamps, two (2) 26W
(G24q-3) 4-pin quad CFL lamps,
two (2) 60W A-19 lamps or one
(1) 300W T3-RSC double-ended
linear halogen lamp (612-SM
only). CFL socket injection
molded plastic. INC socket fired
ceramic rated for 660W-250V.
Lamps furnished by others.
I n s t a l l a t i o n
Supplied with a universal
circular strap for a standard 4"
J-box or plaster ring.
O p t i o n s
Hexcel Louver (HL), Hand
Painted Faux Alabaster Bowl
(612-LB only) (FB), Dimming
Ballast (26W only) - Contact the
factory for ballast options (DM),
Voltage Finish
120V NA Natural Aluminum =
2
277V
SAL Lacquered Satin Aluminum =
2
347V
Standard
1
MB Matte Black =
MW Matte White =
Premium
CC Custom Color =
OBRS Oxidized Brass =
PB Polished Brass =
PC Polished Chrome =
PCP Polished Copper =
PN Polished Nickel =
SB Satin Brass =
SC Satin Chrome =
SCL Lacquered Satin Chrome =
SCP Satin Copper =
SN Satin Nickel =
SNL Lacquered Satin Nickel =
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
Trim Ring (TR), Remote
Emergency Battery - Supplied by
others (REM), Damp Location
(DL): All Painted finishes,
Lacquered Satin Chrome (SCL),
Lacquered Satin Nickel (SNL),
finishes only. Energy Star Rating
- Consult factory. MRI
Applications (INC only) - Contact
Factory.
L a b e l s
U.L. and C.U.L. approved for
indoor and damp location. See
options for damp location
finishing requirements.
M o d i f i c a t i o n s
Shaper's skilled craftspeople
with their depth of experience
offer the designer the flexibility
to modify standard wall
luminaires for project specific
solutions. Contact the factory
regarding scale options, unique
finishes, mounting, additional
materials/colors, or decorative
detailing.
Options
DL Damp Location =
DM CFL Dimming =
3, 4
Ballast
REM Remote =
Emergency Battery
FB Hand Painted =
Faux Alabaster Bowl
HL Hexcel Louver =
TR Trim Ring =
